2CDS281103R0324

Description
Thermal Magnetic Circuit Breaker,
CategoryCircuit protection    Circuit protection
File Size65KB，3 Pages
ManufacturerABB
Websitehttp://www.abb.com/
Environmental Compliance
Download Datasheet Parametric View All

2CDS281103R0324 Overview

Thermal Magnetic Circuit Breaker,

2CDS281103R0324 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerABB
Reach Compliance Codecompli
Circuit protection typeTHERMAL MAGNETIC
Base Number Matches1

Preview

Download Datasheet

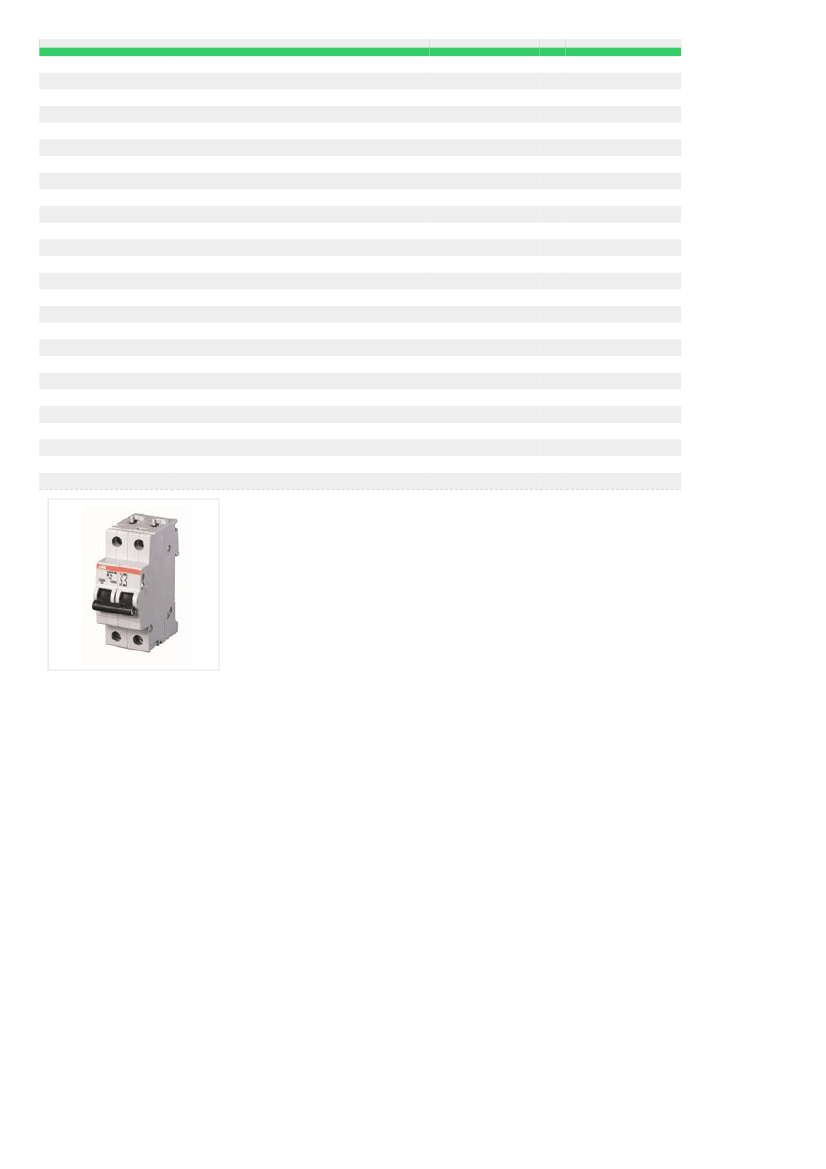

S201P-C32NA
General Information
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
S201P-C32NA
2CDS281103R0324
4016779590983
Miniature Circuit Breaker - S200P - 2P - C
System pro M compact S200P miniature circuit breakers are current limiting. They have two
different tripping mechanisms, the delayed thermal tripping mechanism for overload
protection and the electromechanic tripping mechanism for short circuit protection. They are
available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P),
breaking capacities (up to 25 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs
of the product range S200P comply with IEC/EN 60898-1, IEC/EN 609 47-2, UL1077 and
CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications.
Bottom-fitting auxiliary contact can be mounted on S200P to save 50% space.
Categories
Products
»
Low Voltage Products and Systems
»
Modular DIN Rail Products
»
Miniature Circuit Breakers MCBs
Ordering
Minimum Order Quantity:
Customs Tariff Number:
1 piece
85362010
Popular Downloads
Data Sheet, Technical Information:
2CSC400002D0208
Instructions and Manuals:
2CSC400002D0208
Dimensions
Product Net Width:
Product Net Depth:
Product Net Height:
Product Net Weight:
35 mm
69 mm
88 mm
0.28 kg
Technical
Standards:
IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
CSA 22.2 No. 235
2
C
32 A
acc. to IEC 60898-1 230 V AC
acc. to IEC 60947-2 230 V AC
8.4 W
at Rated Operating Conditions per Pole 4.2 W
acc. to IEC/EN 60664-1 440 V
Maximum (Incl. Tolerance) 253 V AC
Maximum 253 V AC
Minimum 12 V AC
Minimum 12 V DC
50 Hz
60 Hz
(230 / 400 V AC) 10 kA
(230 V AC) 15 kA
(230 V AC) 15 kA
(230 V AC) 11.3 kA
3
III
3
4 kV
(6.2 kV @ sea level)
(5.0 kV @ 2000 m)
50 / 60 Hz, 1 min: 2 kV
Insulation Group II, RAL 7035
Insulation group II, black, sealable
Number of Poles:
Tripping Characteristic:
Rated Current (I
n
):
Rated Operational Voltage:
Power Loss:
Rated Insulation Voltage (U
i
):
Operational Voltage:
Rated Frequency (f):
Rated Short-Circuit Capacity (I
cn
):
Rated Ultimate Short-Circuit
Breaking Capacity (I
cu
):
Rated Service Short-Circuit
Breaking Capacity (I
cs
):
Energy Limiting Class:
Overvoltage Category:
Pollution Degree:
Rated Impulse Withstand Voltage
(U
imp
):
Dielectric Test Voltage:
Housing Material:
Actuator Type:
