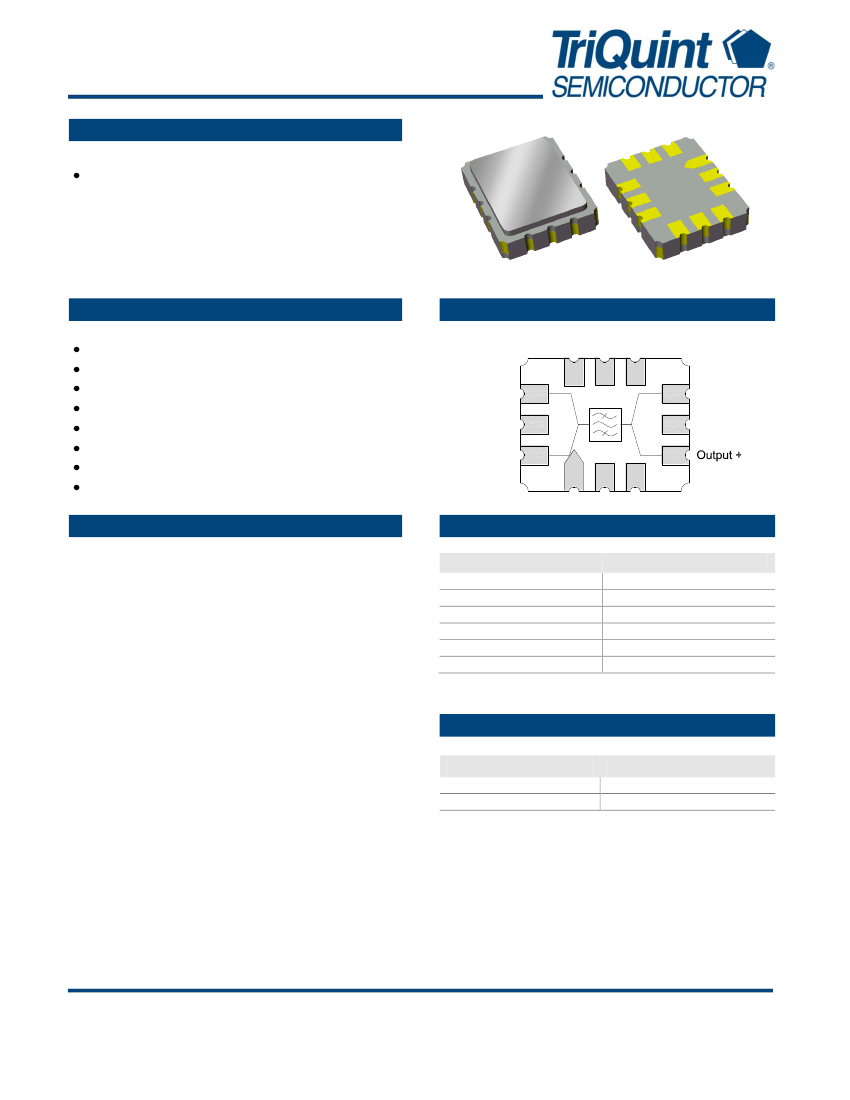

358.4 MHz SAW Filter
Applications
For WCDMA/LTE applications
Product Features
Usable bandwidth 24.8 MHz
Low loss
High attenuation
Low EVM
Balanced operation
Ceramic Surface Mount Package (SMP)
Small Size: 7.01 x 5.51 x 1.63 mm
Hermetic
RoHS
compliant,
Pb-free
Functional Block Diagram
Top view
Gnd Gnd Gnd
9
Input +
Gnd
Input -
10
11
12
1
2
3
8
7
6
5
4
Output -
Gnd
Gnd Gnd Gnd
General Description
The 856966 is a high-performance IF SAW filter with a
center frequency of 358.4MHz and a 1 dB bandwidth of
24.8 MHz.
It features low loss with excellent attenuation, and is
designed to be used with a balanced input and output.
The small size of this surface mounted filter makes it an
economical choice for demanding applications such as
WCDMA/LTE or other similar high data rate
communications standards.
This device is RoHS compliant and Pb-free.
Pin Configuration
Pin # Bal/Bal
10
12
4
6
1,2,3,5
7,8,9,11
Description
Input +
Input -
Output +
Output -
Ground
Ground
Ordering Information
Part No.
856966
856966-EVB
Description
packaged part
evaluation board
Standard T/R size = 3000 units/reel.
Data Sheet: Rev B 07/12/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856966
358.4 MHz SAW Filter
Specifications
Electrical Specifications
(1, 2)
Specified Temperature Range:
(3)
-15 to +85 ºC
Parameter
(4)
Conditions
Min
-
-
-
-
-
-
40
10
10
55
55
35
30
25
20
15
10
5
5
10
15
20
25
30
35
55
55
65
55
52
55
-
-
Typical
(5)
358.4
9.0
0.31
0.45
25
1.2
60
12.4
12.5
71
59
50
35
37
37
37
35
24
25
32
35
35
36
36
53
59
70
76
65
56
70
200
200 or 50
Max
-
11.0
1.0
0.6
100
3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
µs
ns p-p
%
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Center Frequency
Insertion Loss
at 358.4 MHz
(6)
Amplitude Variation
346.0 – 370.8 MHz
Absolute Group Delay
346.0 – 370.8 MHz
(6)
Group Delay Variation
346.0 – 370.8 MHz
(7)
EVM
346.0 – 370.8 MHz
(8)
Time side-lobe response attenuation
(1.2 – 500 µs)
Input Return Loss
346.0 – 370.8 MHz
Output Return Loss
346.0 – 370.8 MHz
(9)
Rejection/Attenuation
10 – 258.4 MHz
258.4 – 309.9 MHz (F
0
- 100 to F
0
- 48.5 MHz)
309.9 – 325.4 MHz (F
0
- 48.5 to F
0
- 33 MHz)
325.4 – 335.8 MHz (F
0
- 33 to F
0
- 22.6 MHz)
335.8 – 336.4 MHz (F
0
- 22.6 to F
0
– 22.0 MHz)
336.4 – 336.9 MHz (F
0
– 22.0 to F
0
- 21.5 MHz)
336.9 – 337.2 MHz (F
0
- 21.5 to F
0
- 21.2 MHz)
337.2 – 337.6 MHz (F
0
- 21.2 to F
0
- 20.8 MHz)
337.6 – 338.4 MHz (F
0
- 20.8 to F
0
- 20 MHz)
378.4 – 379.2 MHz (F
0
+ 20 to F
0
+ 20.8 MHz)
379.2 – 379.6 MHz (F
0
+ 20.8 to F
0
+ 21.2 MHz)
379.6 – 379.9 MHz (F
0
+ 21.2 to F
0
+ 21.5 MHz)
379.9 – 380.4 MHz (F
0
+ 21.5 to F
0
+ 22.0 MHz)
380.4 – 381.0 MHz (F
0
+ 22.0 to F
0
+ 22.6 MHz)
381.0– 391.4 MHz (F
0
+ 22.6 to F
0
+ 33 MHz)
391.4 – 406.9 MHz (F
0
+ 33 to F
0
+ 48.5 MHz)
406.9 – 458.4 MHz (F
0
+ 48.5 to F
0
+ 100 MHz)
458.4 – 525.0 MHz (F
0
+ 100 to 525 MHz)
525.0 – 560.0 MHz
560.0 – 675.0 MHz
675.0 – 750.0 MHz
750.0 – 1000 MHz
Source Impedance (balanced)
(10)
Load Impedance (balanced)
(10)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. An external impedance matching network with ±2% tolerance will be necessary to achieve the proposed specifications
3. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
4. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
5. Typical values are based on average measurements at room temperature
6. These Variations are defined as the difference between the lowest loss and the highest loss within the defined frequency points
7. Measured with a RRC filtered QPSK modulated signal with a BW of 3.84 MHz placed anywhere within the defined frequency points
8. Excluding the triple transit peak at 1.35 µs that may reach 38 dB.
9. Relative to insertion loss at center frequency
10. This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev B 07/12/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856966
358.4 MHz SAW Filter

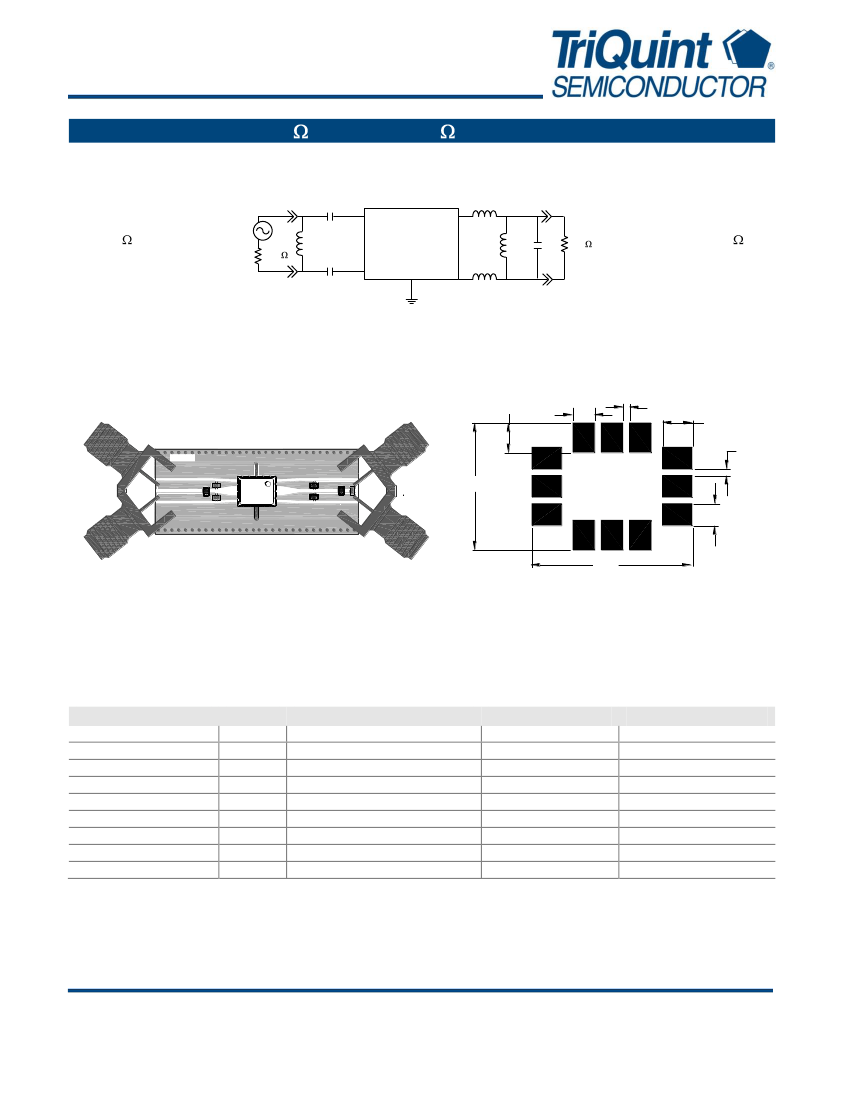

Reference Design – 200
Schematic
27pF
12nH
Bal Input, 200
Bal Output
12
4
27nH
15pF
200
200
Balanced
Input
22nH
200
10
27pF
1,2,3,5
7,8,9,11
6
12nH
200
Balanced
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.34
.99
.28
1.34
.28
C2
L1
C1
TriQuint
856966
JJJYHH
960686
L3
L2
L4
C3
5.71
.99
7.21
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
L3
L4
C1
C2
C3
SMA
PCB
Value
22 nH
12nH
12 nH
27nH
27 pF
27 pF
15 pF
N/A
N/A
Description
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0805, 5%
Chip Ceramic, 0805, 5%
Chip Ceramic, 0805, 5%
Chip Ceramic, 0805, 5%
SMA connector
3-layer
Manufacturer
Coilcraft
Coilcraft
Coilcraft
Coilcraft
MuRata
MuRata
MuRata
Johnson Components
multiple
Part Number
0805CS-220XJLC
0805CS-120XJLC
0805CS-120XJLC
0805CS-270XJLC
GRM40COG270J050BL
GRM40COG270J050BL
GRM40COG150J050BL
142-0701-801
960686
Data Sheet: Rev B 07/12/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856966
358.4 MHz SAW Filter

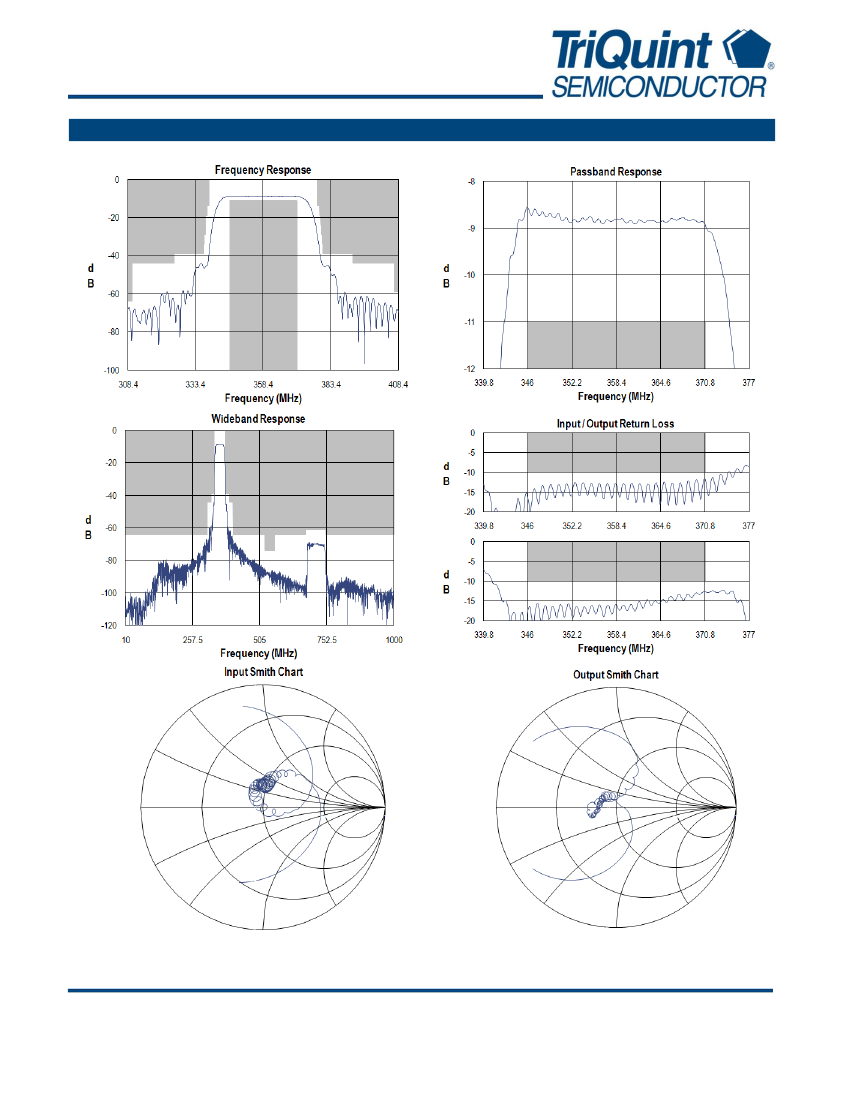

Typical Performance
(at room temperature)
Data Sheet: Rev B 07/12/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856966
358.4 MHz SAW Filter

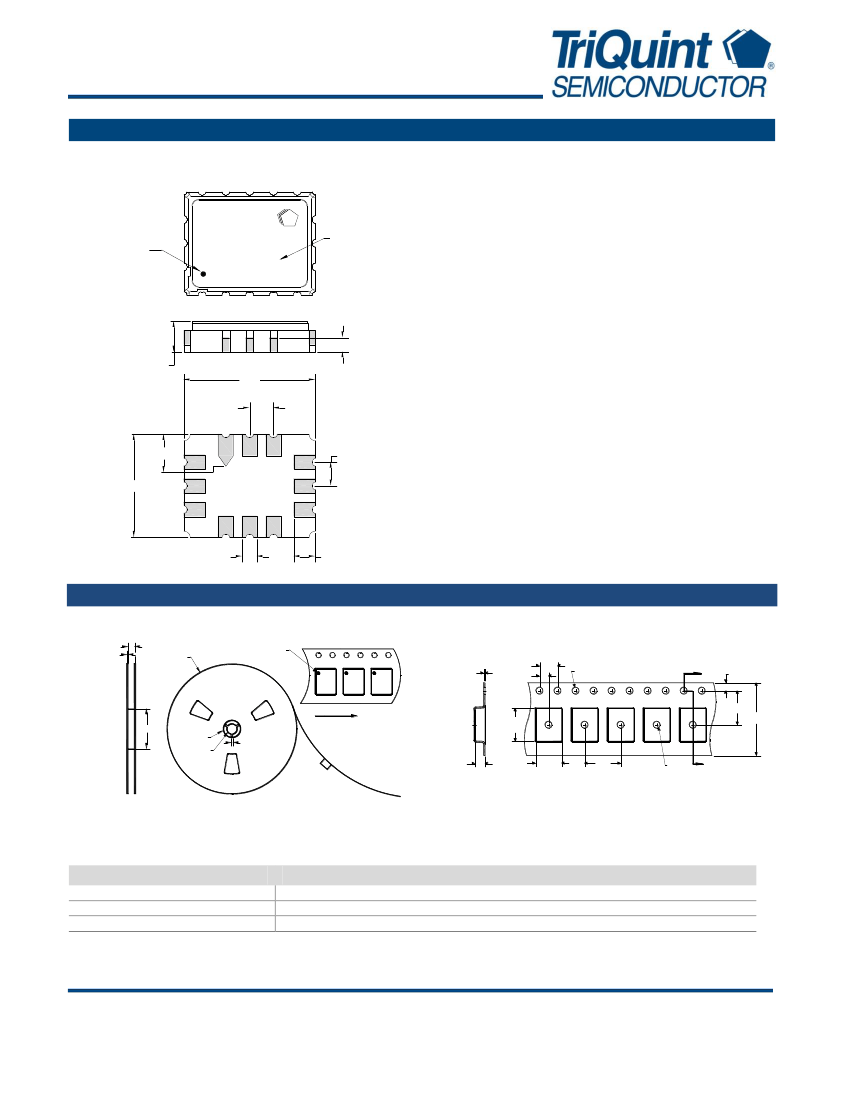

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
856966
JJJYHH
Package Style: SMP-28B
Dimensions: 7.01 x 5.51 x 1.63 mm
Date code
ID dot
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of: day of the current year (Julian,
3 digits), Y = last digit of the year (1 digit), and HH = hour
(2 digits)
1.27
0.76
1.63 NOM.
1.78 MAX.
7.01
1.27
1.70
5.51
0.79
1.14
Tape and Reel Information
Standard T/R size = 3000 units/reel. All dimensions are in millimeters
16.8
2.7
Ø330
Pad 1 ID dot
0.3
4.0
2.0
Ø1.5
A
1.75
7.5
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
7.3
16.0
2.2
Section A-A
5.8
8.0
Ø1.5
A
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Input Power
Rating
-15 to +85
o
C
-40 to +85
o
C
+19 dBm, 24 hours at 50°C, in band; +25 dBm, 24 hours at 50°C, out of band
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev B 07/12/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
