GS1/4LCT52A9104F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> GS1/4LCT52A9104F

GS1/4LCT52A9104F: DescriptionRES,AXIAL,METAL GLAZE,9.1M OHMS,500WV,1% +/-TOL,-200,200PPM TC; CategoryPassive components The resistor; File Size258KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

GS1/4LCT52A9104F Overview

RES,AXIAL,METAL GLAZE,9.1M OHMS,500WV,1% +/-TOL,-200,200PPM TC

GS1/4LCT52A9104F Parametric

Parameter Name	Attribute value
Maker	KOA Speer
package instruction	Axial,
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Cylindrical
JESD-609 code	e2
Lead diameter	0.65 mm
Lead length	38 mm
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	2.3 mm
Package length	6.3 mm
Package form	Axial
method of packing	Ammo Pack
Rated power dissipation(P)	0.25 W
Rated temperature	25 °C
resistance	9100000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	-200,200 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu) - hot dipped
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	500 V

Preview

Download Datasheet

View All

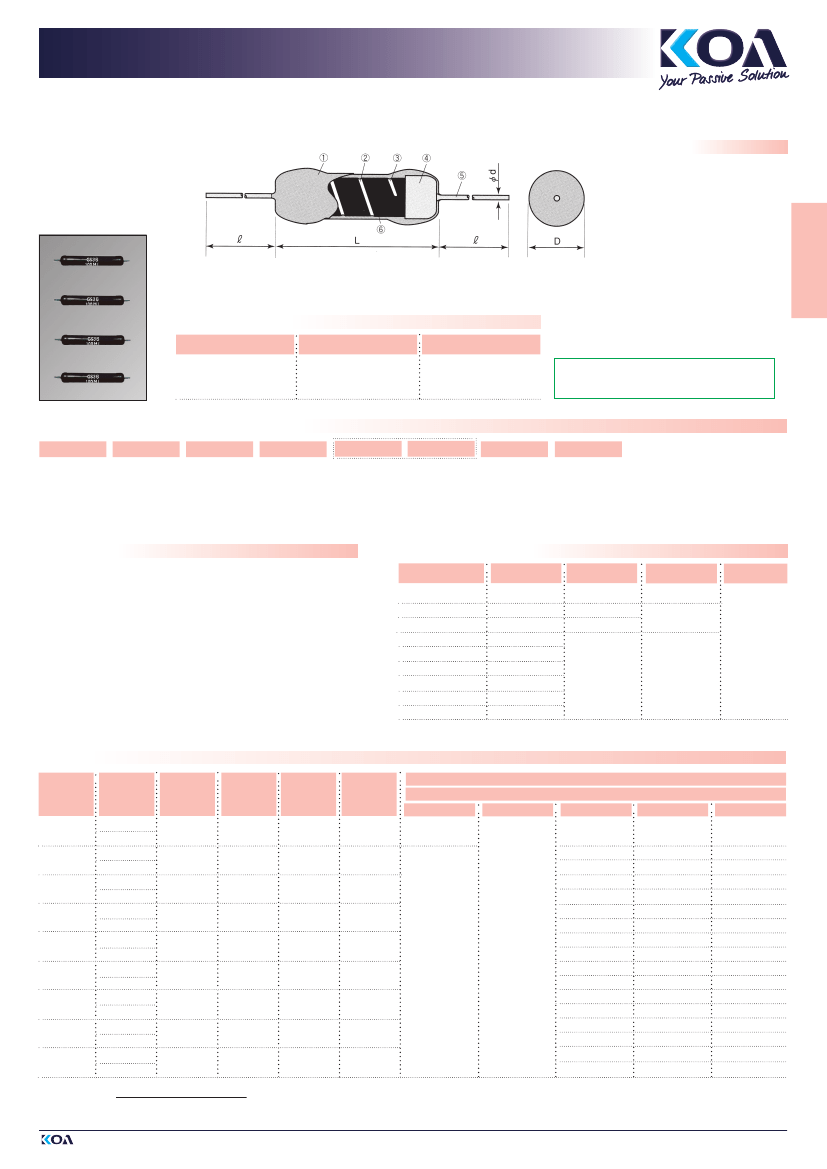

POWER TYPE RESISTORS

METAL GLAZE

HIgH VOLTagE

HIgH R-VaLUES

STRUCTURE

Insulation overcoating

Trimming line

Ceramic core

Electrode cap

Lead wire

Resistive film

IDEnTIFICaTIOn

PRODUCT CODE

COaTIng COLOR

Dark Brown

MaRKIng

Alpha Numeric

(Type, R-value and

tolerance)

all these products have Pb-free terminations

and meet EU-RoHS requirements

TYPE DESIgnaTIOn (HOW TO ORDER)

Contact our sales representatives before you use our products for applications including

automotives, medical equipment and aerospace equipment. Malfunction or failure of the

products in such applications may cause loss of human life or serious damage .

PRODUCT

CODE

1/4

POWER RATING

Unit: Watt

1/4… 12

T .C .R .

D: ±100ppm/K

L: ±200ppm/K

TERMINATION

SURFACE

MATERIAL

C: SnCu

T52

TAPING &

FORMING

PACKAGING

A: Ammo

106

NOMINAL

RESISTANCE

G, J, K: 3 digits

D, F: 4 digits

RESISTANCE

TOLERANCE

D, F, G, J, K

request for environmental hazardous

material other than the substance

specified by EU-RoHS

Taping only for GS1/4 and GS1/2

*Please see “PACKAGING”

*Custom forming for all parts and custom taping for GS1/4 and GS1/2 are available on request.

FEaTURES

■

Suitable for high voltage and high impedance applications

Excellent in anti-surge characteristics

High stability

Miniature size

Wide resistance range (500 kΩ ... 10 GΩ)

Small standard TCR’s: L (±200ppm/K) or D (±100ppm/K)

Taping is available for GS1/4 and GS1/2

Ideal for use in copy machines, LBP’s or as charge/discharge resistor

in power supply circuits

Can be used as high voltage dividing resistor

Rated ambient temperature: +25°C

Operating temperature range: -55°C... +125°C

DIMEnSIOnS (mm)

TYPE

gS 1/4

gS 1/2

gS 1

gS 2

gS 3

gS 5

gS 7

gS 10

gS 12

6.3 ± 1.0

9.5 ± 1.0

15 ± 1.5

24 ± 1.5

52 ± 2

76 ± 2

97 ± 3

117 ± 3

137 ± 3

øD

2.3 ± 0.5

3.5 ± 0.6

4.5 ± 1.0

7.9 ± 1.0

ø d (nominal)

0.65

0.8

1.0

38±3

RaTIng

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order/or use.

TYPE

T.C.R.

(ppm/K)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

L (± 200)

D (± 100)

POWER

RaTIng

at 25°C

0.25 W

0.5 W

2 W

3 W

5 W

7 W

10 W

12 W

MaX.

WORKIng

VOLTagE

0.5 kV

1 kV

3 kV

5 kV

15 kV

20 kV

30 kV

35 kV

40 kV

MaX.

OVERLOaD

VOLTagE

1 kV

2 kV

4 .5 kV

7.5 kV

20 kV

30 kV

40 kV

50 kV

60 kV

IMPULSE

WITH-

STanDIng

VOLTagE*

1.25 kV

2.5 kV

6 kV

10 kV

30 kV

40 kV

50 kV

60 kV

70 kV

D(±0.5%)

0.5MΩ ... 20MΩ

0.5MΩ ...50MΩ

RESISTanCE RangE anD TOLERanCE

E 24 & 25, 50 x 10

F(±1%)

J(±5%)

g(±2%)

0.5 MΩ

…

100 MΩ

0.5MΩ ... 100MΩ

0.5MΩ ... 500MΩ

0.5MΩ ... 200MΩ

0.5MΩ . . . 1GΩ

0.5MΩ ... 500MΩ

0.5MΩ . . . 1GΩ

0.5MΩ ... 500MΩ

0.5MΩ . . . 1GΩ

0.5MΩ ... 500MΩ

0.5MΩ . . . 1GΩ

0.5MΩ ... 500MΩ

0.5MΩ ... 1GΩ

1MΩ ... 500MΩ

0.5MΩ . . . 1GΩ

1MΩ ... 500MΩ

0.5MΩ . . . 1GΩ

1MΩ ... 500MΩ

K(±10%)

gS 1/4

gS 1/2

gS 1

gS 2

gS 3

gS 5

gS 7

gS 10

gS 12

0.5MΩ ... 100MΩ 0.5MΩ ... 100MΩ

0.5MΩ ... 500MΩ

0.5MΩ... 200 MΩ

0.5MΩ . . . 5GΩ

0.5MΩ ... 500MΩ

0.5MΩ . . . 5GΩ

0.5MΩ ... 500MΩ

0.5MΩ ... 10GΩ

0.5MΩ ... 500MΩ

0.5MΩ ... 10GΩ

0.5MΩ ... 500MΩ

0.5MΩ ... 10GΩ

1MΩ ... 500MΩ

0.5MΩ... 10GΩ

1MΩ ... 500MΩ

0.5MΩ ... 10GΩ

1MΩ ... 500MΩ

0.5MΩ... 500MΩ

0.5MΩ... 200MΩ

0.5MΩ . . . 5GΩ

0.5MΩ... 500MΩ

0.5MΩ . . . 5GΩ

0.5MΩ... 500MΩ

0.5MΩ ... 10GΩ

0.5MΩ... 500MΩ

0.5MΩ.. 10GΩ

0.5MΩ... 500MΩ

0.5MΩ.. 10GΩ

1MΩ... 500MΩ

0.5MΩ.. 10GΩ

1MΩ... 500MΩ

0.5MΩ ... 10GΩ

1MΩ... 500MΩ

* Impulse withstanding voltage under standard waveform (1.2 / 50µs) specified to IEC-60060

Rated voltage = Power rating x resistance value or max. working voltage, whichever is lower.

Please contact KOA for special precautions before you order and use this series .

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

119

Revision: 14. Dec. 2009

POWER TYPE

RESISTORS
