SKINTOP® MS-M ATEX BRUSH

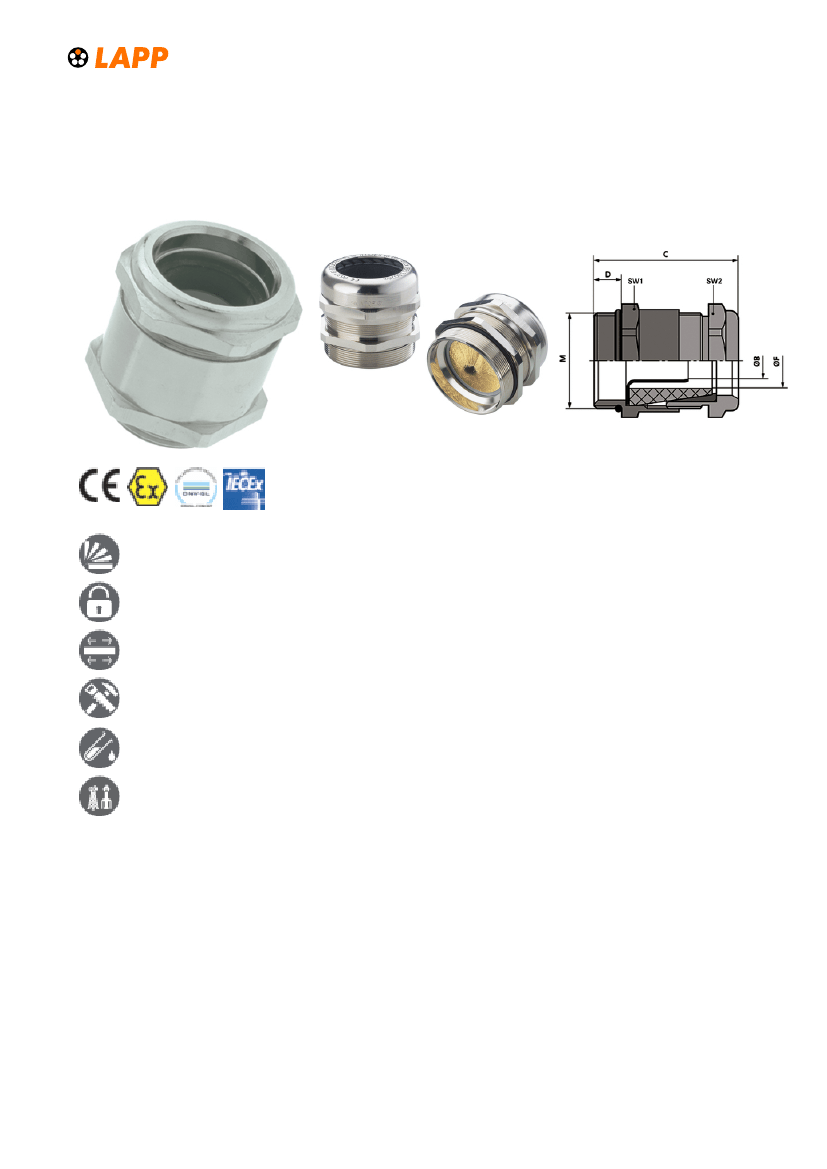

SKINTOP® MS-M ATEX BRUSH, brass cable gland, 360° screen contact, anti-static & impact-resistant at cold temperatures,
for chemical industry
Variety of approval certifications
Reliability
Optimum strain relief
Mechanical resistance
Good chemical resistance
Oil & Gas
Benefits
Faster and less complicated assembling than any other system
Optimum, low-resistance 360° screen contact
Simple cable adjustment
Easy to uninstall
Anti-static, safe, and impact-resistant at cold temperatures
Application range
For EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath
Chemical and petrochemical industry
Plant engineering
Equipment group II / Category 2G+1D
Devices, machines and apparatus of enhanced safety protection type "e", dust ignition proof "t"
Last Update (23.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
SKINTOP® MS-M ATEX BRUSH
Product Make-up
Metric connection thread acc. to DIN EN 60423
Basis for technical information DIN IEC 62444
Note
SKINDICHT® SHVE-M 20 x 1.5 ATEX design with EMC earthing sleeve to cover smaller cable clamping ranges
SKINDICHT® SHVE-M 20x1,5 ATEX is not IECex certified
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Caution:
Certifications:
ETIM 5.0 Class-ID: EC000441
ETIM 5.0 Class-Description: Cable screw gland
ETIM 6.0 Class-ID: EC000441
ETIM 6.0 Class-Description: Cable screw gland
Refer to the instruction leaflet for the installation dimensions
and torques
CE 0637 Ex II 2G
Ex eb IIC Ex II 1D
Ex ta IIIC
IECEx IBE 13.0026X
SKINTOP® MS-M ATEX BRUSH
Body: nickel plated brass
Insert: special polyamide
EMV-Brush: brass
Seal: special elastomer
O-Ring: special elastomer
SKINDICHT® SHVE-M ATEX
Body: nickel plated brass
Earthing sleeve: brass
Seal: special elastomer
O-Ring: special elastomer
DIN EN 60079-0
DIN EN 60079-7
DIN EN 60079-31
IP 68 - 10 bar
SKINTOP® MS-M ATEX BRUSH
-30°C to +90°C
SKINDICHT® SHVE-M ATEX
-20°C to +80°C
Material:
Tests:
Protection rating:
Temperature range:
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (23.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
SKINTOP® MS-M ATEX BRUSH
Article number
Article designation / size Outer Ø (mm), from - to
Minimum Ø above
braiding (mm)
5
6
8
10
14
20
25
SW wrench size mm
Thread length D mm
Pieces / PU
Last Update (23.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16

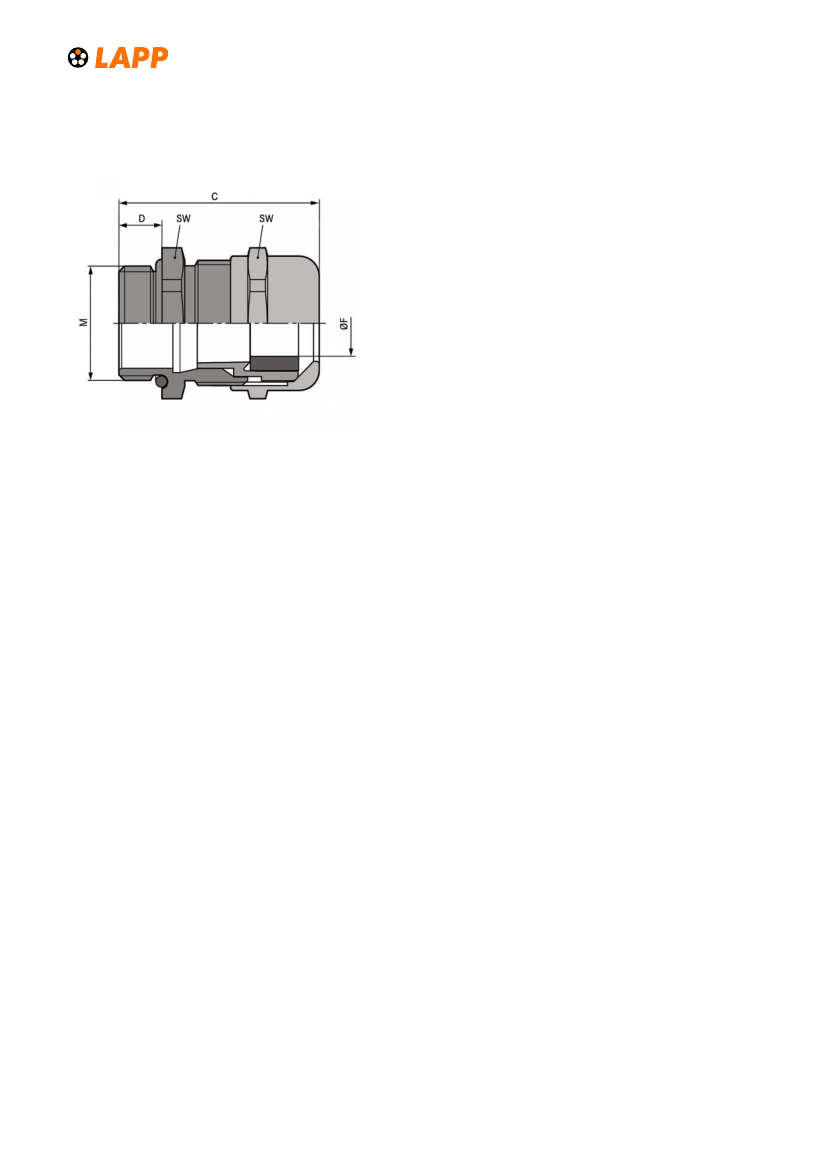

SKINDICHT® SHVE-M ATEX
52107102
52110023
52110024
52110025
52110026
52110027
52110028
M 20 x 1,5
M 25 x 1,5
M 32 x 1,5
M 40 x 1,5
M 50 x 1,5
M 63 x 1,5
M 63 x 1,5 plus
6.9 - 8.9
9.0 - 17.0
11.0 - 21.0
19.0 - 28.0
27.0 - 35.0
34.0 - 45.0
44.0 - 55.0
22
29
36
45
54
67
75
6
8
9
9
10
15
15
10
10
5
5
5
1
1
SKINTOP® MS-M ATEX BRUSH
PRODUCT INFORMATION
PRODUCT INFORMATION
SKINTOP® MS-M ATEX BRUSH
Last Update (23.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
