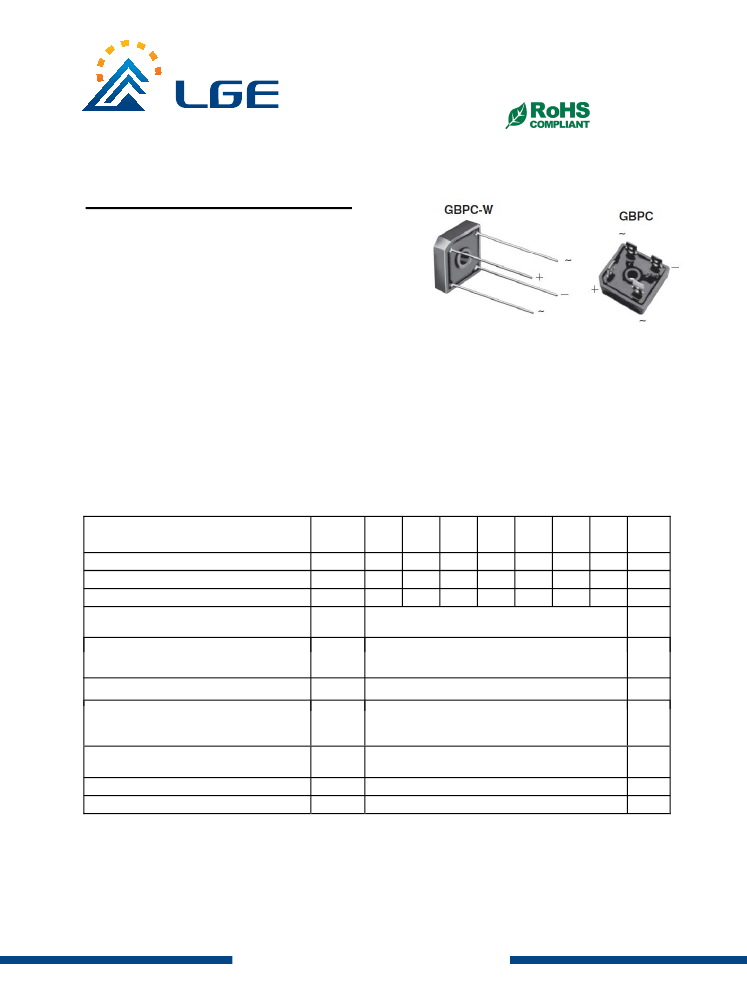

GBPC15005-GBPC1510
High Current 15AMP.Single Phase
Glass Passivated Bridge Rectifiers
Features
The plastic material used carries Underwriters
Laboratory Flammability Recognition 94V-0
Integrally molded heatsink provide very low
thermal resistance for maximum heat
dissipation
Surge overload ratings from 300 amperes to
400 amperes
Typical I
R
less than 0.2 uA
High temperature soldering guaranteed:
260
o
C / 10 seconds / .375”, (9.5mm) lead
lengths(For wire type)
Isolated voltage from case to lead over 2500
volts
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Maximum Ratings and Electrical Characteristics
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
C
= 55
o
C
Peak Forward Surge Current, Single Sine-
wave Superimposed on Rated Load
(JEDEC method )
Symbol
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I²t
GBPC GBPC GBPC GBPC GBPC GBPC GBPC
15005 1501 1502 1504 1506 1508 1510
Units
V
V
V
A
A
A²S
50
35
50
100
70
100
200
140
200
400
280
400
15.0
300
375
600
420
600
800
560
800
1000
700
1000
I²t Rating for fusing @Tj=25℃
Maximum Instantaneous
Forward Voltage Drop Per
Element at Specified Current
Maximum DC Reverse Current
at Rated DC Blocking Voltage Per Element
Typical Thermal Resistance (Note 1)
Operating and Storage Temperature Range
GBPC15 7.5A
V
F
I
R
R
θJC
T
J
,T
STG
1.1
5
V
uA
o
3.0
-50 to +150
C/W
o
C
Notes: 1. Thermal Resistance from Junction to Case.
2. Suffix “W” - Wire Lead Structure/”M” - Terminal Location Face to Face.
Revision:20170701-P1
ht
t
p
:
//
www.lgesem i
.c
o
m
mail:lge@lgesemi.com
GBPC15005-GBPC1510
RATINGS AND CHARACTERISTIC CURVES
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
FIG.2- TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
100
INSTANTANEOUS REVERSE CURRENT. ( A)
Tj=125
0
C
AVERAGE FORWARD CURRENT. (A)
10
10
8
6
Tj=25
0
C
1
4
2
0
0.1
20
40
60
80
100
120
o
140
160
180
0
20
40
60
80
100
120
140
CASE TEMPERATURE. ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
FIG.3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER BRIDGE ELEMENT
PEAK FORWARD SURGE CURRENT. (A)
400
300
200
100
1000
FIG.4- TYPICAL FORWARD CHARACTERISTICS
PER BRIDGE ELEMENT
INSTANTANEOUS FORWARD CURRENT. (A)
100
GBPC15
80
60
40
20
GB
P
15
10
1
1.5
2
3
4
5 6 7 8 9 10
15
20 25 30 40
60
80 100
NUMBER OF CYCLES AT 60Hz
1
FIG.5- TYPICAL JUNCTION CAPACITANCE
1000
600
JUNCTION CAPACITANCE.(pF)
0.1
0.6
Tj=25
0
C
0.8
1.0
1.2
1.4
1.6
1.8
2.0
500
400
100
50
25
0
0.1
FORWARD VOLTAGE. (V)
0.5
1
2
5
10
20
50 100
200
500 800
REVERSE VOLTAGE. (V)
Revision:20170701-P1
ht
t
p
:
//
www.lgesem i
.c
o
m
mail:lge@lgesemi.com
