MP5502(W) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Ordinary rectifier bridge> MP5502(W)

MP5502(W): DescriptionOrdinary rectifier bridge, 200V, 50A, 400A, 1.1V, 25A, 10uA; CategoryDiscrete semiconductor Ordinary rectifier bridge; File Size838KB，2 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

MP5502(W) Overview

Ordinary rectifier bridge, 200V, 50A, 400A, 1.1V, 25A, 10uA

MP5502(W) Parametric

Parameter Name	Attribute value
Package	MP,MP-W
Maximum recurrent peak reverse voltage	200
Maximum average forward rectified curre	25
Peak forward surge curre	400
Maximum instantaneous forward voltage	1.1
Maximum reverse curre	10
TJ(℃）	-55～+150

Preview

Download Datasheet

View All

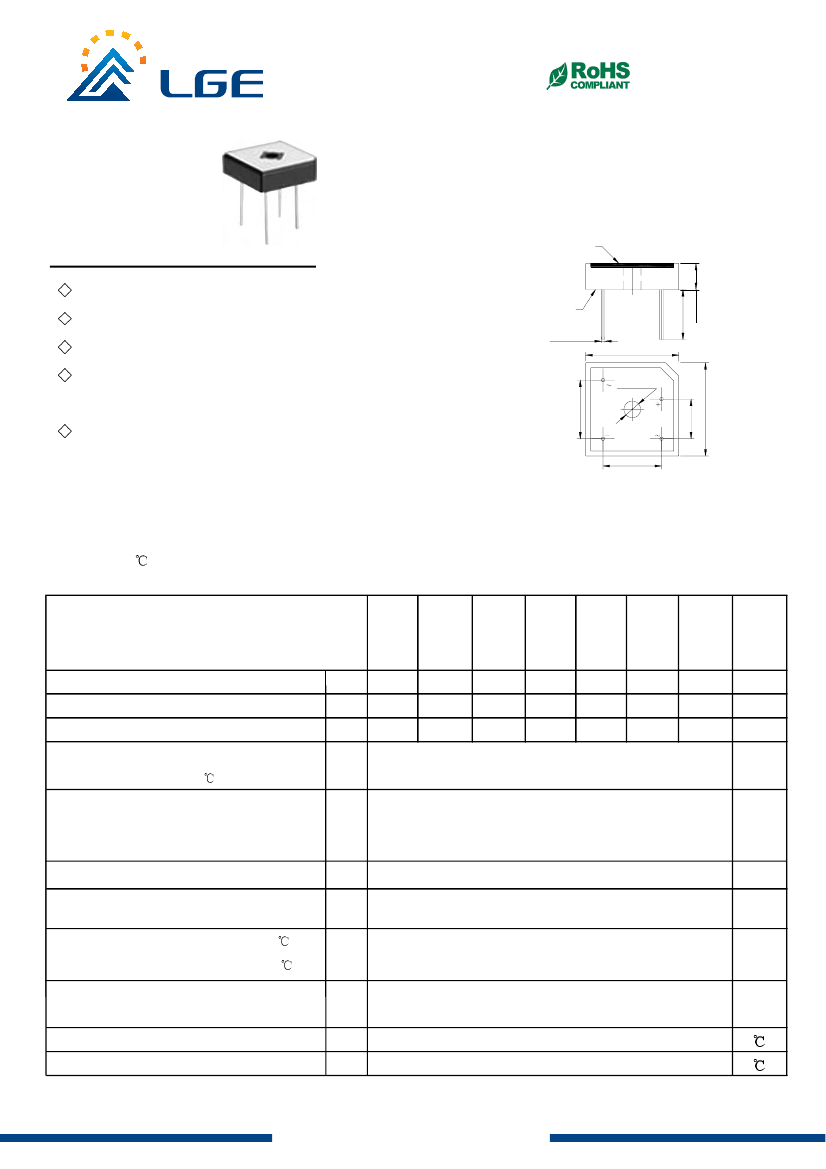

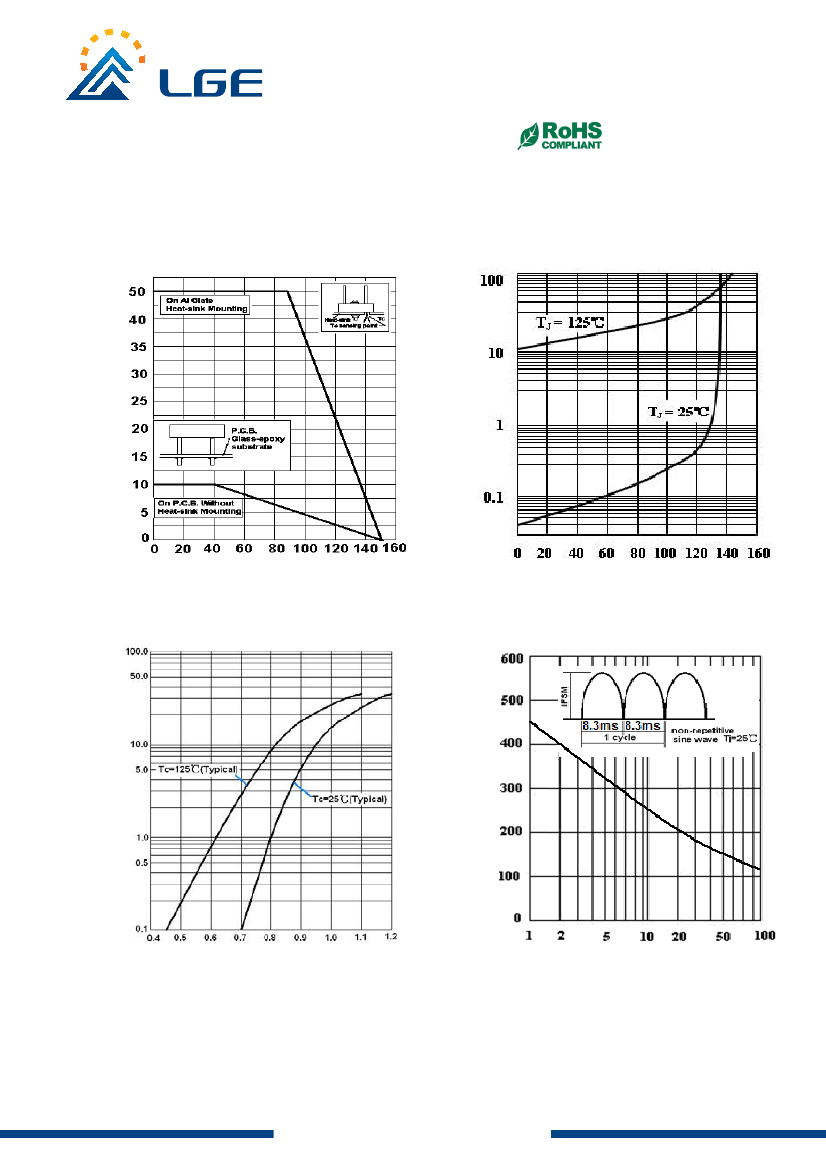

MP35005(W)-MP3510(W)

Silicon Bridge Rectifiers

VOLTAGE RANGE: 50 --- 1000 V

CURRENT: 35.0 A

MP - W

Features

Rating to 1000V PRV

Surge overload rating to

400

Am peres peak

Ideal for printed circuit board

Reliable low cost construction utilizing molded

METAL HEAT SINK

PLASTIC

1 .0± 0.1

28.6± 0.4

5.2 TYP.

17.9± 0.5

12.7± 0.5

17.9± 0.5

28.6± 0.4

plastic technique results in inexpensive product

Lead solderable per MIL-STD-202 method 208

Dimensions in millimeters

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

ambient temperature unless otherwise specified.

Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.

23 MIN

35005

(W)

Maximum recurrent peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forw ard

Output current

=25

3501

(W)

100

3502

(W)

200

140

200

3504

(W)

400

280

400

35.0

3506

(W)

600

420

600

3508

(W)

800

560

800

8.0± 0.1

3510

(W)

1000

700

1000

UNITS

RRM

RMS

F(AV)

Peak forw ard surge current

8.3ms single half-sine-w ave

superimposed on rated load

I²t Rating for fusing @Tj=25℃

Maximum instantaneous forw ard voltage

Maximum reverse current

at rated DC blocking voltage

Typical thermal resistance per leg

FSM

I²t

400.0

A²S

R ΘJA

RθJC

1.1

10.0

1.0

μA

℃/W

=25

=100

1.5

- 55 ---- + 150

Operating junction temperature range

Storage temperature range

STG

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com

MP5502(W) Related Products

	MP5502(W)	MP50005(W)	MP5001(W)	MP5004(W)	MP5006(W)	MP5008(W)	MP5010(W)
Description	Ordinary rectifier bridge, 200V, 50A, 400A, 1.1V, 25A, 10uA	Ordinary rectifier bridge, 50V, 50A, 400A, 1.1V, 25A, 10uA	Ordinary rectifier bridge, 100V, 50A, 400A, 1.1V, 25A, 10uA	Ordinary rectifier bridge, 400V, 50A, 400A, 1.1V, 25A, 10uA	Ordinary rectifier bridge, 600V, 50A, 400A, 1.1V, 25A, 10uA	Ordinary rectifier bridge, 800V, 50A, 400A, 1.1V, 25A, 10uA	Ordinary rectifier bridge, 1000V, 50A, 400A, 1.1V, 25A, 10uA
Package	MP,MP-W	MP,MP-W	MP,MP-W	MP,MP-W	MP,MP-W	MP,MP-W	MP,MP-W
Maximum recurrent peak reverse voltage	200	50	100	400	600	800	1000
Maximum instantaneous forward voltage	1.1	1.1	1.1	1.1	1.1	1.1	1.1
TJ(℃）	-55～+150	-55～+150	-55～+150	-55～+150	-55～+150	-55～+150	-55～+150
Maximum average forward rectified current	-	-	25	25	25	25	25
Peak forward surge current	-	-	400	400	400	400	400
Maximum reverse current	-	-	10	10	10	10	10
