MT5014 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Three-phase rectifier bridge> MT5014

MT5014: DescriptionThree-phase rectifier bridge, 1400V, 50V, 500A, 1.2V, 25A, 10uA; CategoryAnalog mixed-signal IC Three-phase rectifier bridge; File Size648KB，3 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

MT5014 Overview

Three-phase rectifier bridge, 1400V, 50V, 500A, 1.2V, 25A, 10uA

MT5014 Parametric

Parameter Name	Attribute value
Package	MT
Maximum recurrent peak reverse voltage	1400
IAV(V)	50
Peak forward surge current	500
Maximum instantaneous forward voltage	1.2
Maximum average forward rectified current	25
Maximum reverse current	10
TJ(℃）	-55-150

Preview

Download Datasheet

View All

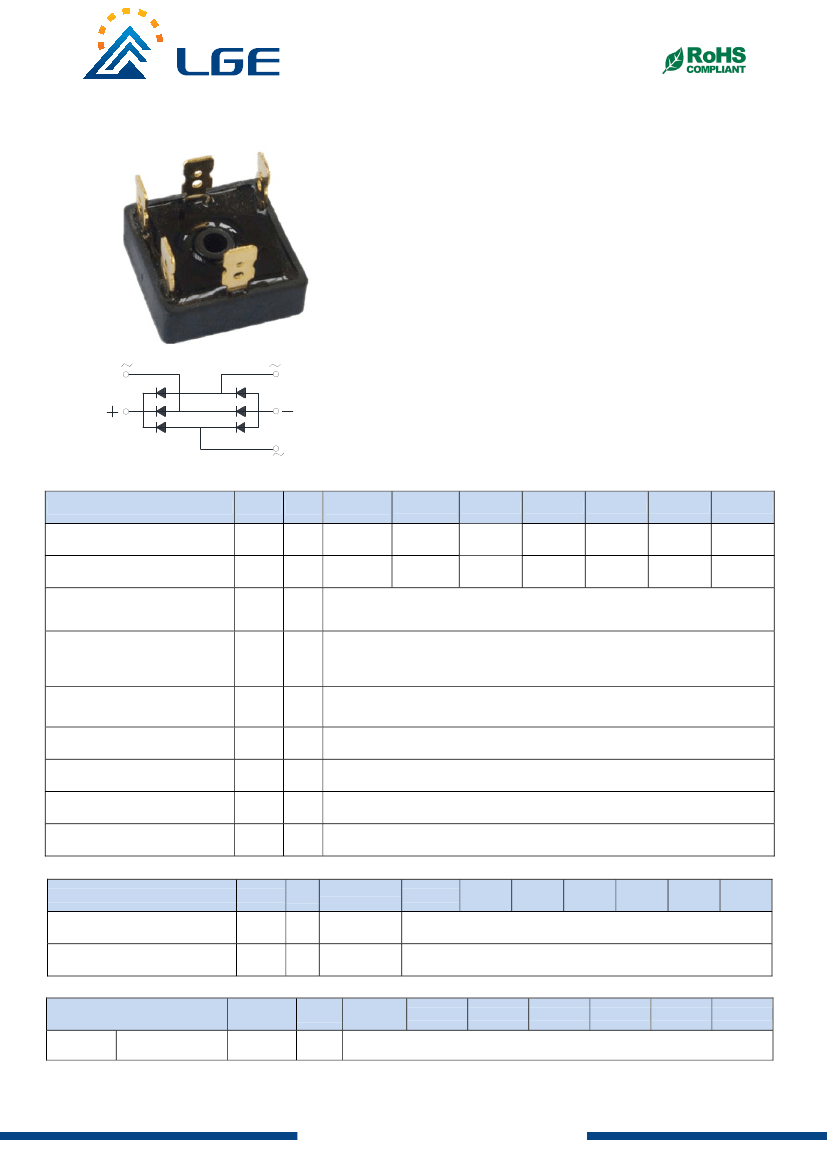

MT5004 THRU MT5016

Three Phase Bridge Rectifiers

‐

Features

● UL recognition, file #E230084

● Glass passivated chip

● High surge current capability

● Low thermal resistance

● Solder dip 275 °C max. 7 s, per JESD 22-B106

Typical Applications

General purpose use in AC/DC bridge full wave

rectification for power supply, home appliances, office

equipment, industrial automation applications.

Mechanical Data

●

Package:

Molding compound meets UL 94 V-0

flammability rating, RoHS-compliant

●

Terminals:

Tin plated leads, solderable

per J-STD-002 and JESD22-B102

■

Maximum Ratings

(Ta=25℃ Unless otherwise specified)

PARAMETER

Device marking code

Repetitive Peak Reverse Voltage

Average Rectified Output Current

@60Hz sine wave, R-load, With

heatsink, Tc=55℃

Surge(Non-repetitive)Forward

Current

@60Hz Half- sine Wave, 1 cycle,

Ta=25℃

Current Squared Time

@1ms≤t≤8.3ms Tj=25℃, Rating of

per diode

Storage Temperature

Junction Temperature

Dielectric Strength, Terminals to

case, AC 1 minute

Mounting Torque

VRRM

SYMBOL UNIT

MT5004

400

MT506

MT5006

600

MT5008

800

MT5010

1000

MT5012

1200

MT5014

1400

MT5016

1600

IFSM

500

Tstg

Vdis

TOR

℃

kg·cm

1040

-55~+150

2.5

■

Electrical Characteristics

(Ta=25℃ Unless otherwise specified)

PARAMETER

Maximum instantaneous forward

voltage drop per diode

Maximum DC reverse current at

rated DC blocking voltage per diode

SYMBOL UNIT

VFM

IRRM

TEST

CONDITIONS

IFM=25A

MT5004

MT5006

MT5008

MT5010 MT5012 MT5014

1.2

MT5016

μA VRM=VRRM

■

Thermal Characteristics

(Ta=25℃ Unless otherwise specified)

PARAMETER

Thermal

Resistance

Between junction and

case, With heatsink

SYMBOL

θJ-C

UNIT

℃/W

MT5004

MT5006

MT5008

MT5010

0.88

MT5012

MT5014

MT5016

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com
