SKBPC3514 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Three-phase rectifier bridge> SKBPC3514

SKBPC3514: DescriptionThree-phase rectifier bridge, 1400V, 35V, 300A, 1.2V, 17.5A, 10uA; CategoryAnalog mixed-signal IC Three-phase rectifier bridge; File Size701KB，3 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

SKBPC3514 Overview

Three-phase rectifier bridge, 1400V, 35V, 300A, 1.2V, 17.5A, 10uA

SKBPC3514 Parametric

Parameter Name	Attribute value
Package	SKBPC
Maximum recurrent peak reverse voltage	1400
IAV(V)	35
Peak forward surge curre	300
Maximum instantaneous forward voltage	1.2
Maximum average forward rectified curre	17.5
Maximum reverse curre	10
TJ(℃）	-55-150

Preview

Download Datasheet

View All

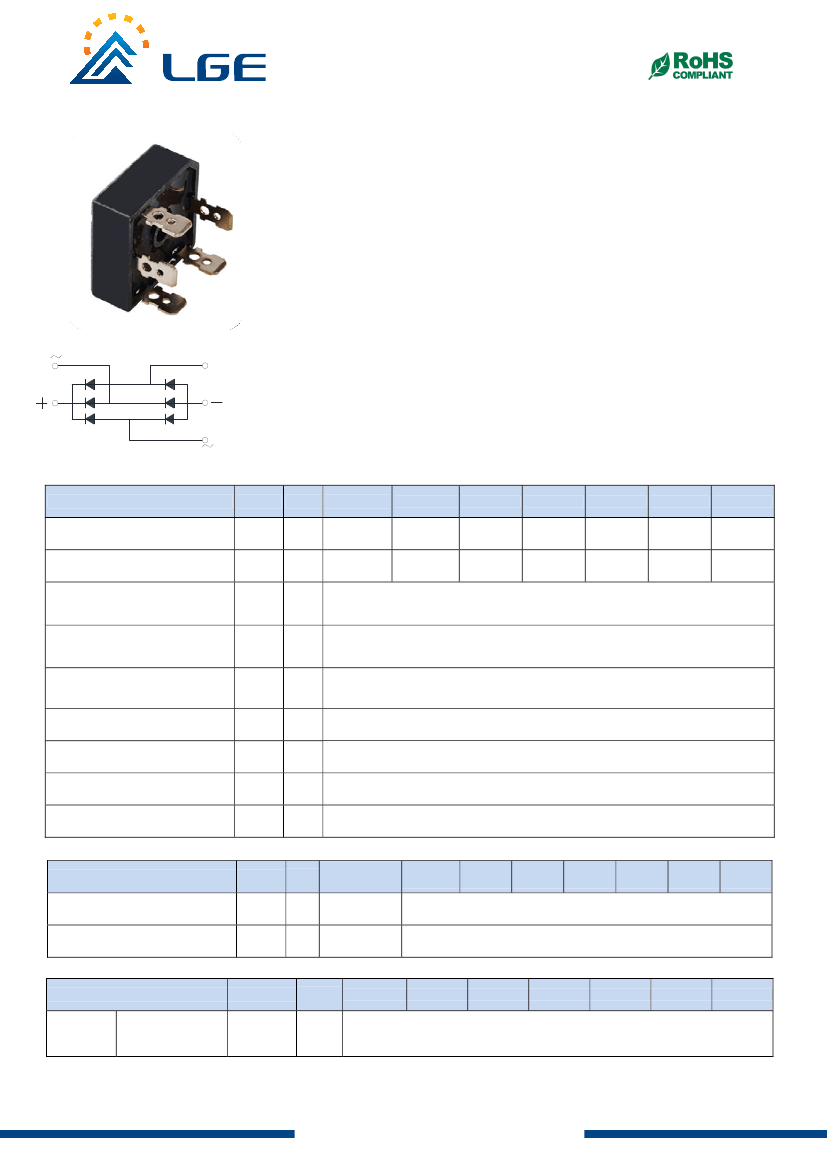

SKBPC3504 THRU SKBPC3516

Three Phase Bridge Rectifiers

Features

●

UL recognition, file #E230084

●

Glass passivated chip

●

High surge current capability

●

Low thermal resistance

●

Solder dip 275 °C max. 7 s, per JESD 22-B106

Typical Applications

‐

General purpose use in AC/DC bridge full wave

rectification for power supply, home appliances, office

equipment, industrial automation applications.

Mechanical Data

●

Package:

SKBPC

Molding compound meets UL 94 V-0

flammability rating, RoHS-compliant

●

Terminals:

Tin plated leads,

solderable per

J-STD-002 and JESD22-B10

■

Maximum Ratings

(Ta=25℃ Unless otherwise specified

）

PARAMETER

Device marking code

Repetitive Peak Reverse Voltage

Average Rectified Output Current

@60Hz sine wave, R-load, With

heatsink Tc=55℃

Surge(Non-repetitive)Forward

Current @60HZ Half- sine Wave, 1

cycle, Ta=25℃

Current Squared Time

@1ms≤t<8.3ms Tj=25℃, Rating of

per diode

Storage Temperature

Junction Temperature

Dielectric Strength, Terminals to

case，AC 1 minute

Mounting Torque

VRRM

SYMBOL UNIT

SKBPC3504

SKBPC3506 SKBPC3508 SKBPC3510 SKBPC3512 SKBPC3514 SKBPC3516

400

600

800

1000

1200

1400

1600

IFSM

Tstg

400

℃

kg·cm

664

-55 ~+150

2.5

dis

TOR

■Electrical

Characteristics

（T

=25℃ Unless otherwise specified）

PARAMETER

Maximum instantaneous forward

voltage drop per diode

Maximum DC reverse current at

rated DC blocking voltage per diode

SYMBOL UNIT

VFM

IRRM

TEST

CONDITIONS

IFM=

17.5A

SKBPC35 SKBPC35 SKBPC35 SKBPC35 SKBPC35 SKBPC35 SKBPC35

1.2

μA

VRM=VRRM

■

Thermal Characteristics

（T

=25℃ Unless otherwise specified）

PARAMETER

Thermal

Resistance

SYMBOL

UNIT

SKBPC3506 SKBPC3508 SKBPC3508 SKBPC3510 SKBPC3512 SKBPC3514 SKBPC3516

℃/W

1.35

Between junction

and case, With

heatsink

J-C

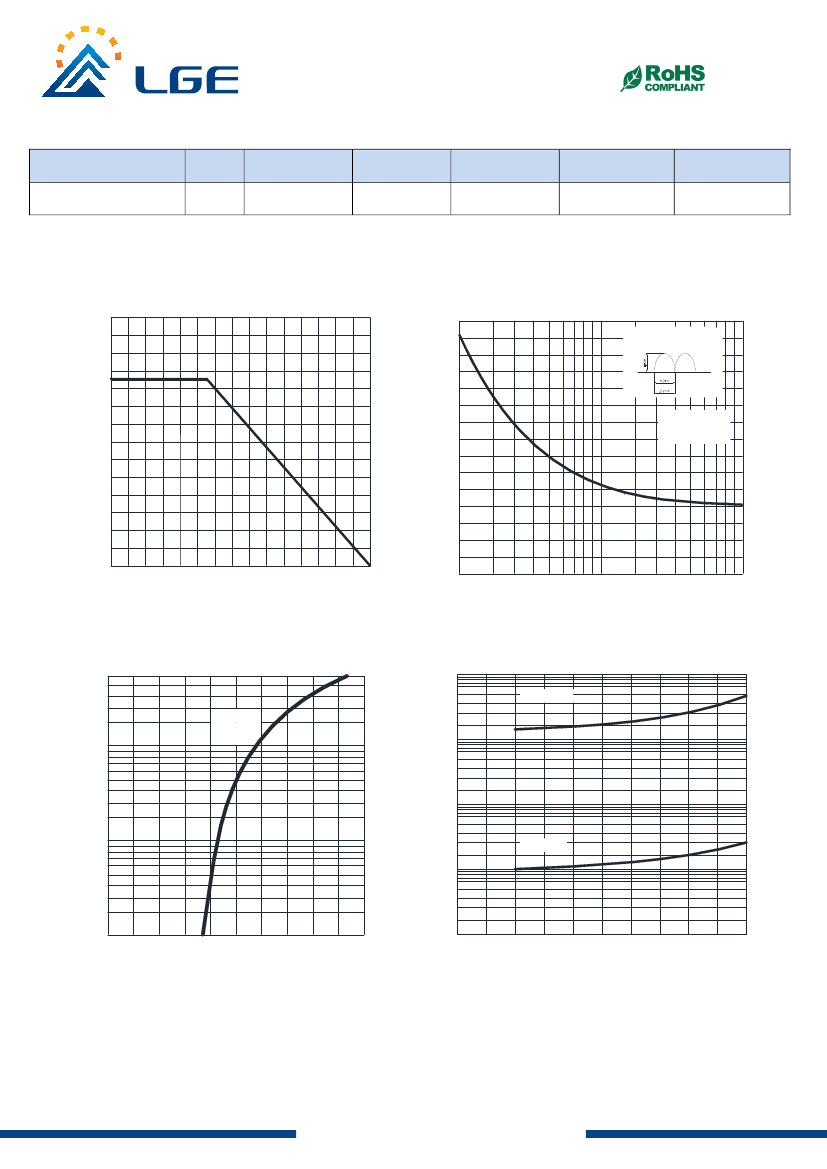

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com

SKBPC3514 Related Products

	SKBPC3514	SKBPC3510	RNN55E2803DRRJ7	SKBPC3506	SKBPC3516	SKBPC3508	SKBPC3512
Description	Three-phase rectifier bridge, 1400V, 35V, 300A, 1.2V, 17.5A, 10uA	No description yet	Fixed Resistor, Metal Film, 0.1W, 280000ohm, 200V, 0.5% +/-Tol, 25ppm/Cel, Through Hole Mount, AXIAL LEADED	No description yet	Three-phase rectifier bridge, 1600V, 35V, 300A, 1.2V, 17.5A, 10uA	Three-phase rectifier bridge, 800V, 35V, 300A, 1.2V, 17.5A, 10uA	Three-phase rectifier bridge, 1200V, 35V, 300A, 1.2V, 17.5A, 10uA
Package	SKBPC	SKBPC	-	SKBPC	SKBPC	SKBPC	SKBPC
Maximum recurrent peak reverse voltage	1400	1000	-	600	1600	800	1200
IAV(V)	35	35	-	35	35	35	35
Maximum instantaneous forward voltage	1.2	1.2	-	1.2	1.2	1.2	1.2
TJ(℃）	-55-150	-55-150	-	-55-150	-55-150	-55-150	-55-150
