SKBPC5006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Three-phase rectifier bridge> SKBPC5006

SKBPC5006: DescriptionThree-phase rectifier bridge, 600V, 50V, 500A, 1.2V, 25A, 10uA; CategoryAnalog mixed-signal IC Three-phase rectifier bridge; File Size1MB，3 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

SKBPC5006 Overview

Three-phase rectifier bridge, 600V, 50V, 500A, 1.2V, 25A, 10uA

SKBPC5006 Parametric

Parameter Name	Attribute value
Package	SKBPC
Maximum recurrent peak reverse voltage	600
IAV(V)	50
Peak forward surge curre	500
Maximum instantaneous forward voltage	1.2
Maximum average forward rectified curre	25
Maximum reverse curre	10
TJ(℃）	-55-150

Preview

Download Datasheet

View All

SKBPC5004 THRU SKBPC5016

Three Phase Bridge Rectifiers

Features

● UL recognition, file #E230084

● Glass passivated chip

● High surge current capability

● Low thermal resistance

● Solder dip 275 °C max. 7 s, per JESD 22-B106

Typical Applications

General purpose use in AC/DC bridge full wave

rectification for power supply, home appliances, office

equipment, industrial automation applications.

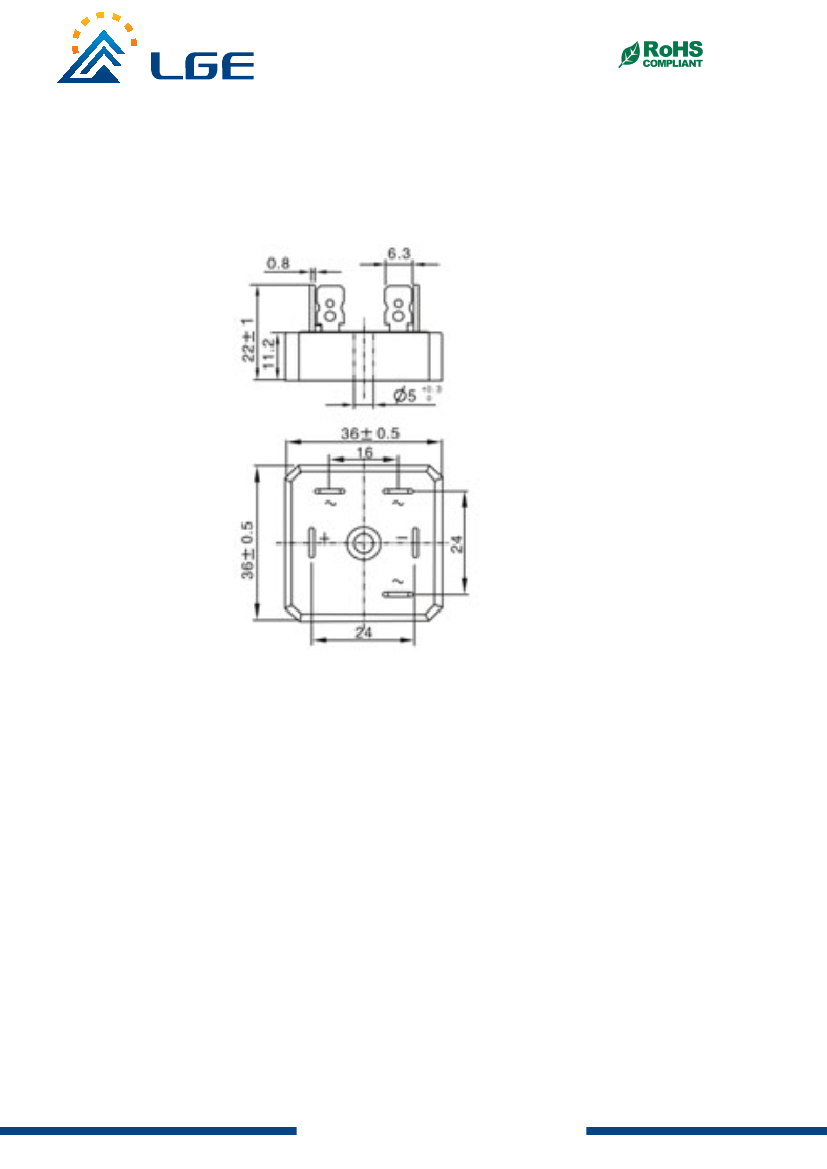

Mechanical Data

●

Package:

SKBPC

Molding compound meets UL 94 V-0

flammability rating, RoHS-compliant

●

Terminals:

Tin plated leads,

solderable per

J-STD-002 and JESD22-B10

■

Maximum Ratings

(Ta=25℃ Unless otherwise specified

）

PARAMETER

Device marking code

Repetitive Peak Reverse Voltage

Average Rectified Output Current

@60Hz sine wave, R-load, With

heatsink Tc=55℃

Surge(Non-repetitive)Forward Current

@60HZ Half- sine Wave, 1 cycle,

=25℃

Current Squared Time @1ms≤t<8.3ms

Tj=25℃, Rating of per diode

Storage Temperature

Junction Temperature

Dielectric Strength, Terminals to

case，AC 1 minute

Mounting Torque

VRRM

IFSM

Tstg

℃

kg·cm

SYMBOL UNIT

SKBPC5004

SKBPC5006 SKBPC5008 SKBPC5010 SKBPC5012 SKBPC5014 SKBPC5016

400

600

800

1000

1200

1400

1600

500

1040

-55 ~+150

-55~+150

2.5

dis

TOR

■Electrical

Characteristics

（T

=25℃ Unless otherwise specified）

PARAMETER

Maximum instantaneous forward

voltage drop per diode

Maximum DC reverse current at

rated DC blocking voltage per diode

SYMBOL UNIT

VFM

IRRM

TEST

CONDITIONS

IFM=25A

SKBPC50 SKBPC50 SKBPC50 SKBPC50 SKBPC50 SKBPC50 SKBPC50

1.2

μA VRM=VRRM

■

Thermal Characteristics

（T

=25℃ Unless otherwise specified）

PARAMETER

Thermal

Resistance

SYMBOL

UNIT

SKBPC5006 SKBPC5008 SKBPC5008 SKBPC5010 SKBPC5012 SKBPC5014 SKBPC5016

℃/W

0.9

Between junction

and case, With

heatsink

J-C

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com
