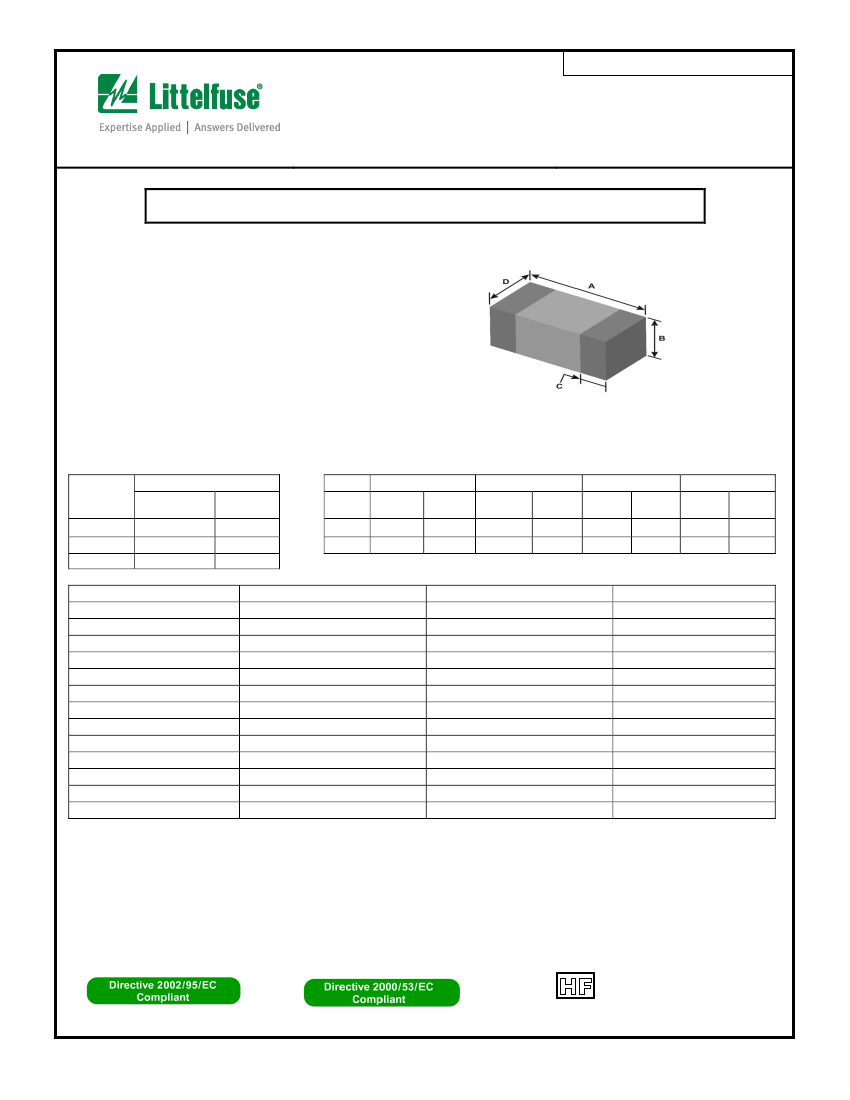

PRODUCT: 0603SFV Family
Surface Mount Fuse
Very Fast Acting
DOCUMENT:SCD27575
REV LETTER: B
REV DATE: JULY 26, 2016
PAGE NO.: 1 OF 4
Specification Status:
Released
Max Electrical Rating at 25°C
Max Voltage: 32V
DC
Max Interrupt Current at Rated Voltage:
50A for 0.5A – 1.0A
35A for 1.25A – 5.0A
Termination Material: Silver, Nickel, Tin
Fuse Element: Silver
Body Material: Glass Ceramic
Clear Time Characteristics
% of
current
rating
100%
200%
300%
Min.
4 hours
0.01 sec
0.001 sec
Clear time at 25°C
Max.
5 sec
0.2 sec
mm:
in:
MIN
1.45
0.057
A
MAX
1.75
0.069
MIN
0.22
0.009
B
MAX
0.48
0.019
Dimensions
C
MIN
0.21
0.008
MAX
0.51
0.020
MIN
0.65
0.025
D
MAX
0.95
0.037
Part Number
0603SFV050F/32
0603SFV075F/32
0603SFV100F/32
0603SFV125F/32
0603SFV150F/32
0603SFV175F/32
0603SFV200F/32
0603SFV250F/32
0603SFV300F/32
0603SFV350F/32
0603SFV400F/32
0603SFV450F/32
0603SFV500F/32
Current Rating (A)
0.50
0.75
1.00
1.25
1.50
1.75
2.00
2.50
3.00
3.50
4.00
4.50
5.00
Voltage Rating (VDC)
32
32
32
32
32
32
32
32
32
32
32
32
32
Nominal Cold DCR (Ω)*
0.86
0.45
0.28
0.205
0.136
0.095
0.069
0.046
0.039
0.028
0.023
0.019
0.015
* Measured at 10% of rated current and 25°C
Agency Recognition:
Precedence:
Effectivity:
UL E197536
This specification takes precedence over documents referenced herein.
Reference documents shall be the issue in effect on the date of invitation for bid.
Materials Information
ROHS Compliant
ELV Compliant
Halogen Free*
HF
* Halogen Free refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm
© 2016 Littelfuse,Inc
Specifications are subject to change without notice.
Revised July 26, 2016
littelfuse.com

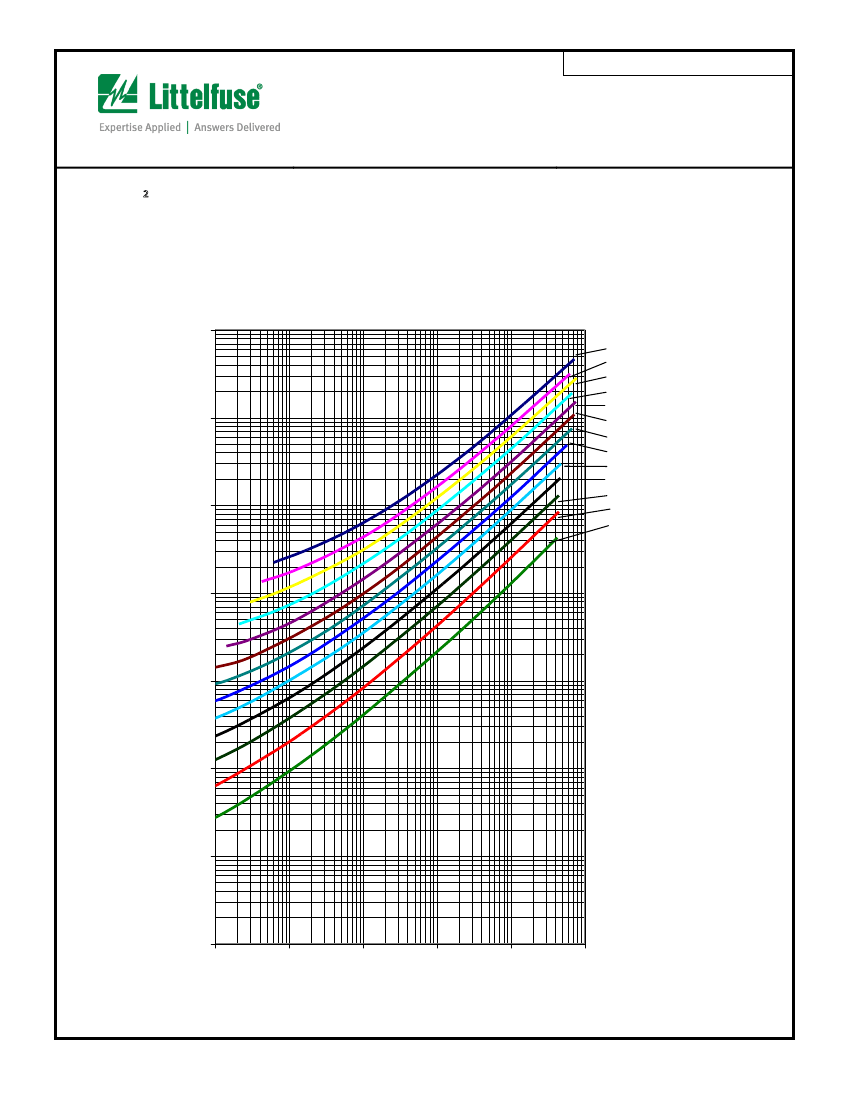

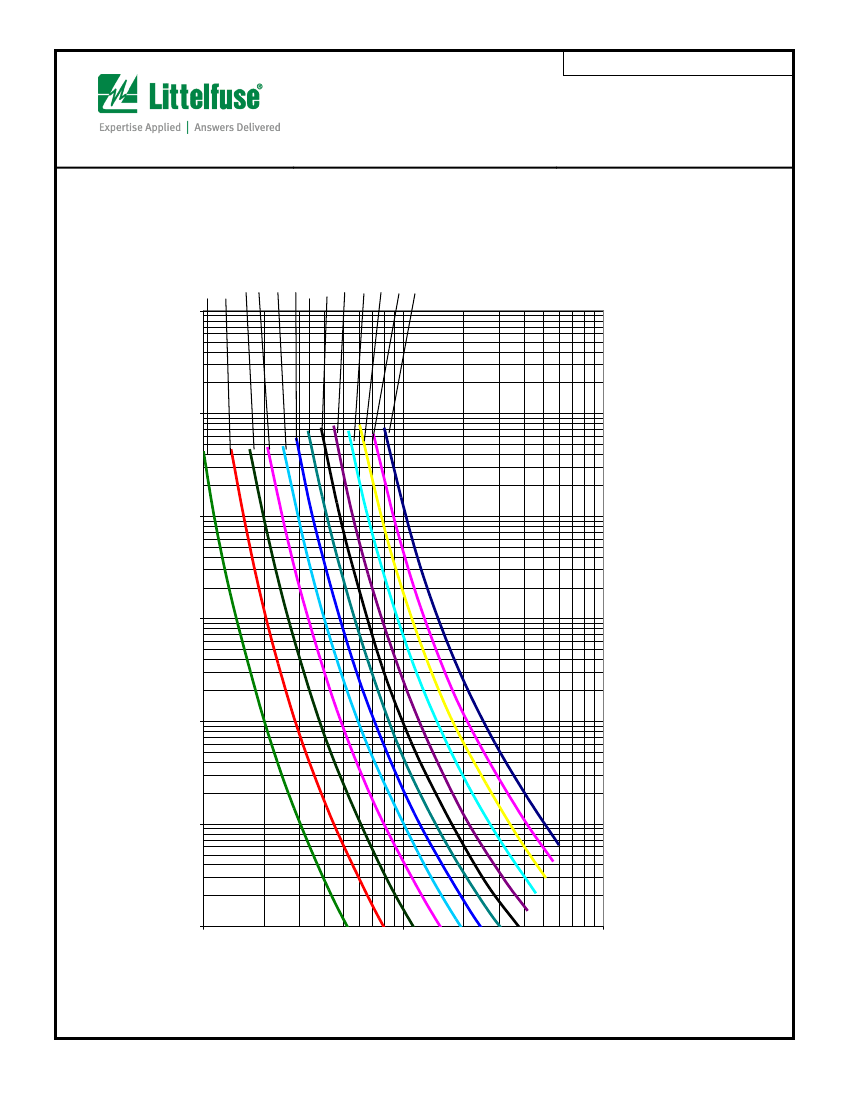

PRODUCT: 0603SFV Family
Surface Mount Fuse
Very Fast Acting
DOCUMENT:SCD27575
REV LETTER: B
REV DATE: JULY 26, 2016
PAGE NO.: 4 OF 4
Littelfuse products are not designed for, and shall not be used for, any purpose (including, without limitation, automotive, military, aerospace, medical,
life-saving, life-sustaining, nuclear facility applications, devices intended for surgical implant into the body, or any other application in which the failure or
lack of desired operation of the product may result in personal injury, death, or property damage) other than those expressly set forth in applicable
Littelfuse product documentation. Warranties granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in
applicable Littelfuse documentation. Littelfuse shall not be liable for any claims or damages arising out of products used in applications not expressly
intended by Littelfuse as set forth in applicable Littelfuse documentation. The sale and use of Littelfuse products is subject to Littelfuse Terms and
Conditions of Sale, unless otherwise agreed by Littelfuse.
© 2016 Littelfuse,Inc
Specifications are subject to change without notice.
Revised July 26, 2016
littelfuse.com
