LXZ1000-23-13 Overview

Mixer Diode, Zero Barrier, Silicon

LXZ1000-23-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-3
Reach Compliance Code	compli
ECCN code	EAR99

Preview

Download Datasheet

View All

LXZ1000

SURFACE MOUNT SOT-23

Zero Bias (ZBD) Schottky Diodes

RoHS Compliant

DESCRIPTION

Mil spec quality Schottky barrier devices are available in

economical SOT23 plastic packages. Priced for high volume

commercial applications, these devices provide state-of-the-art

electrical performance, ideal for use as detectors, mixers, in

up/down converters or in sampling phase detectors. When

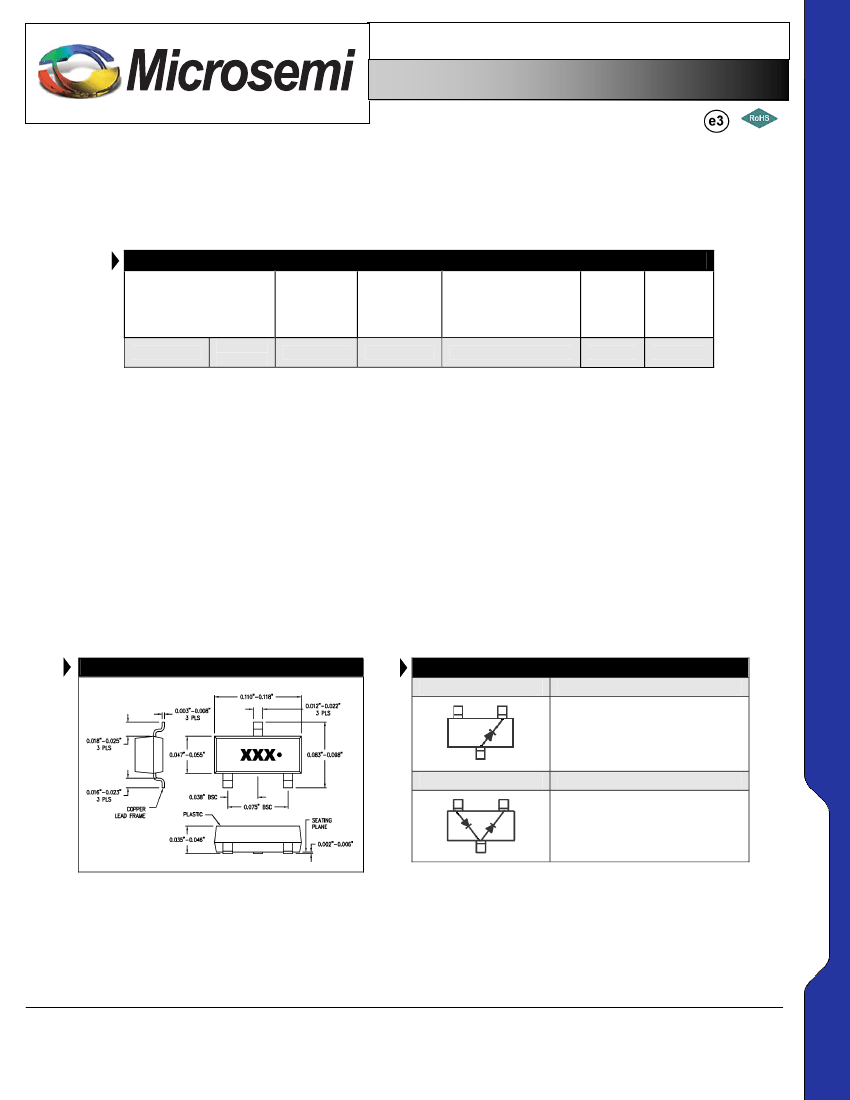

ordering, specify configuration - see configuration table for internal

wiring diagrams. Other configurations are available - some

limitations apply. Consult factory for availability. The LXZ1000

series of diodes are the RoHS compliant versions of the LSZ1000

series. The LXZ series supersedes the LSZ version.

This LSX series of devices meets RoHS requirements per EU

Directive 2002/95/EC.

KEY FEATURES



Standard SOT23 Package Outline



Surface Mount design



Wide Selecting of Values and

Configurations



Available on Tape & Reel for

Automated Pick & Place Assembly



Excellent Conversion Loss



RoHS Compliant

www.MICROSEMI.com

APPLICATIONS

Microsemi offers a variety of Schottky Barrier diodes in the SOT23

package style. These products are well suited for mixer and

detector applications, as well as for sampling, limiter and wave

shaping circuits. Available on tape & reel, these products are ideal

for high volume applications.

APPLICATIONS/BENEFITS



Detectors



Limiters



Sampling



Wave Shaping

ABSOLUTE MAXIMUM RATINGS AT 25º C

(UNLESS OTHERWISE SPECIFIED)

Rating

Power Dissipation (De-rated

linearly to 0 at T

(max)

Storage Temperature

Operating Temperature

Junction Temperature

Symbol

STG

Value

-55 to +125

125

Unit

ºC

LSZ1000

ºC

IMPORTANT:

For the most current data, consult our website

www.MICROSEMI.com

Specification subject to change. Consult factory for latest information.

These devices are ESD sensitive and must be handled using ESD precautions.

These devices are supplied with a

matte tin finish suitable for RoHS

compliant assembly.



2007

Rev.: 2009-01-22

Microsemi

Microwave Products

75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748

Page 1
