MS24264R24T61P8: DescriptionMIL Series Connector, 61 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size138KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS24264R24T61P8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS24264R24T61P8	-	-	View	Buy Now

MS24264R24T61P8 Overview

MIL Series Connector, 61 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle

MS24264R24T61P8 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknow
Other features	STANDARD: MIL-C-26500, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FIRE/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLACK
Shell material	ALUMINUM ALLOY
Housing size	24
Termination type	CRIMP
Total number of contacts	61

Preview

Download Datasheet

View All

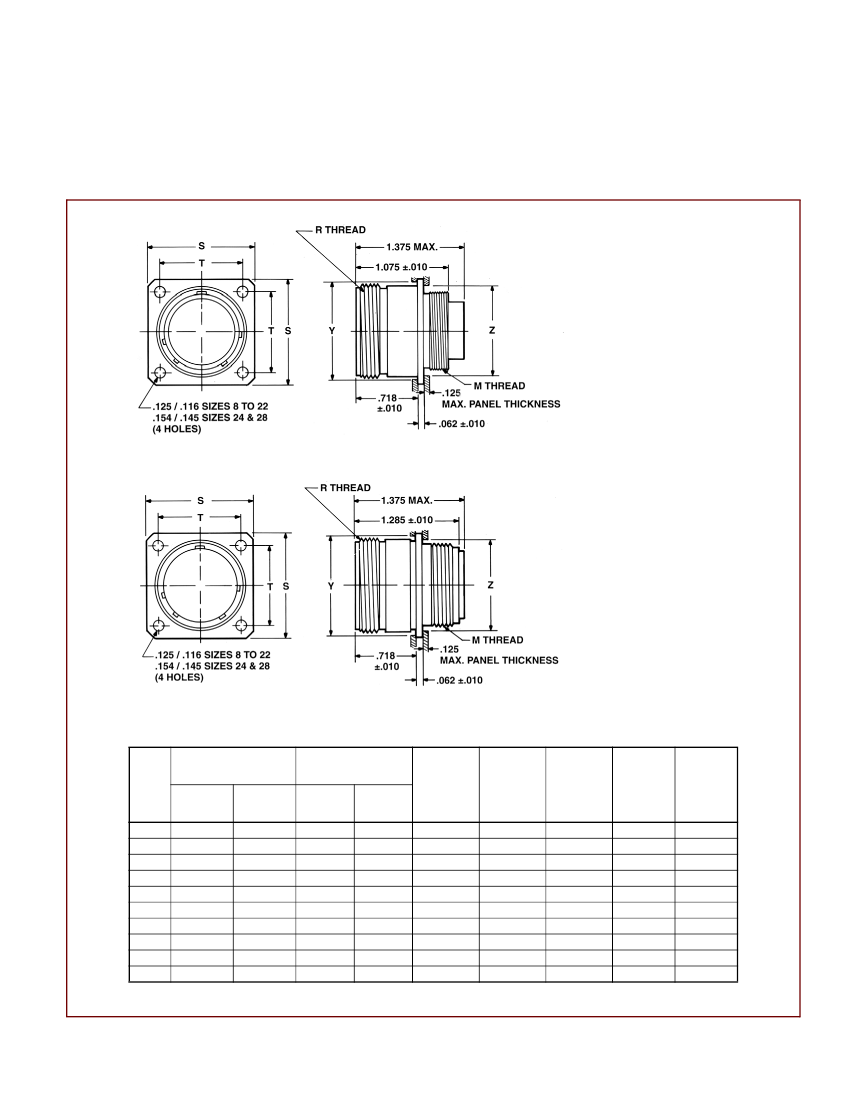

Flange Mounted Receptacle

aluminum/stainless steel

threaded coupling

STAINLESS STEEL

Pyle ZZY-RC-17XX* Series

MS24264EXXTXX*

Military Class E

ALUMINUM

Pyle ZZY-AC-17XX* Series

MS24264RXXTXX*

Military Class R

* To complete order number,

see how to order, page 7.

Cable Support

Thread M

Shell

Size

Steel

NS-2A

Alum.

UNEF-2A

Modified

Aluminum Connector

Weight (lbs.) max

including Contacts

Insert

Socket

Insert

Coupling

Thread

R

Flange

Width

S ±.005

Mounting

Hole

Centers

T ±.005

Back

Mount

Min. Hole

Y

Front

Mount

Min. Hole

Z

08**

10

12

14

16

18

20

22

24

28†

NA

.563-36

.733-36

.803-36

.930-36

1.036-36

1.161-36

1.286-36

1.411-36

1.661-36

.437-28

.562-24

.750-20

.812-20

.937-20

1.062-18

1.187-18

1.312-18

1.437-18

NA

.025

.042

.061

.072

.087

.110

.130

.152

.181

NA

.026

.044

.062

.074

.090

.112

.134

.159

.188

NA

.562-24

.687-24

.875-20

.937-20

1.062-18

1.187-18

1.312-18

1.437-18

1.562-18

1.812-16

.812

.937

1.031

1.125

1.250

1.343

1.437

1.562

1.703

2.000

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.562

.606

.748

.913

.980

1.107

1.209

1.325

1.452

1.577

1.827

.443

.572

.760

.822

.948

1.072

1.197

1.322

1.448

1.700

NA designates not available. ** Not available in Stainless Steel.

All dimensions for reference only.

† Not available in Aluminum.
