MS24265E24T43S8 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS24265E24T43S8

Preview

MS24265E24T43S8: DescriptionMIL Series Connector; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS24265E24T43S8 Overview

MIL Series Connector

MS24265E24T43S8 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	MIL SERIES CONNECTOR
Manufacturer's serial number	MS24265E

Preview

Download Datasheet

View All

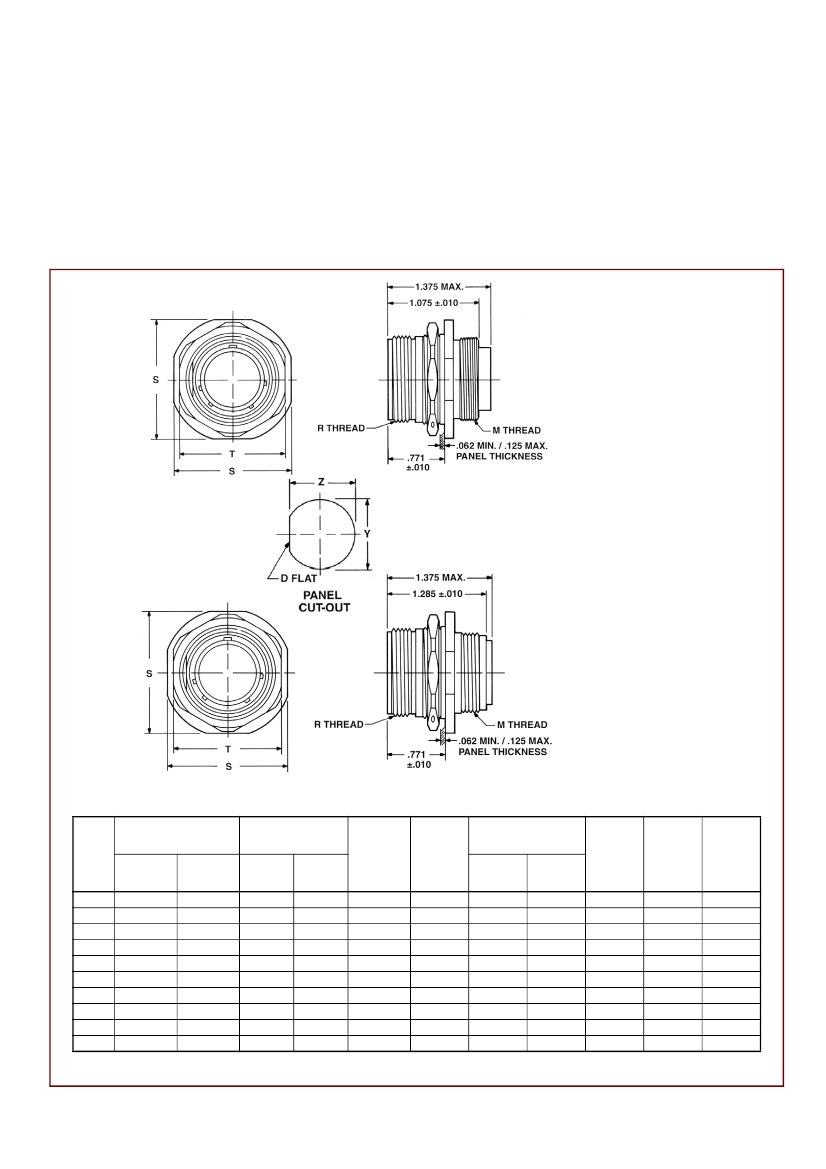

D-Hole Mounted Receptacle

aluminum/stainless steel

threaded coupling

STAINLESS STEEL

Pyle ZZY-RC-15XX* Series

MS24265EXXTXX*

Military Class E

ALUMINUM

Pyle ZZY-AC-15XX* Series

MS24265RXXTXX*

Military Class R

* To complete order number,

see how to order, page 7.

Cable Support

Thread M

Shell

Size

Steel

NS-2A

Alum.

UNEF-2A

Modified

Aluminum Connector

Weight (lbs.) max

including Contacts

Insert

Socket

Insert

Coupling

Thread

R

Flange

Width

S ±.005

Lock Nut Flats

T

Mounting

Hole

Dia. Y

Mounting

Hole

Flat Z

Steel

Alum.

Rec. min.

Torque

Jam Nut

Inch/Lbs.

08

10

12**

14

16

18

20

22

24

28

NA

.563-36

NA

.803-36

.930-36

1.036-36

NA

1.286-36

1.411-36

NA

.562-24

.750-20

.812-20

.937-20

1.062-18

NA

1.312-18

1.437-18

NA

.049

.069

.087

.104

.131

.152

.181

.208

NA

.050

.070

.089

.106

.133

.157

.187

.212

NA

1.171-24

.875-20

.937-20

1.062-18

1.187-18

NA

1.312-18

NA

1.104

1.291

1.391

1.516

1.614

NA

1.954

NA

.937

1.125

1.062

1.187

1.312

NA

1.562

NA

.937

1.125

1.187

1.312

1.437

NA

1.687

NA

.760

.947

1.010

1.135

1.260

NA

1.510

NA

.730

.917

.980

1.105

1.225

NA

1.475

NA

36

56

65

69

81

100

123

133

NA

NA designates not available. ** Not available in Stainless Steel.

All dimensions for reference only.
