0916270030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0916270030

0916270030: DescriptionRectangular Power Connector,; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0916270030 Overview

Rectangular Power Connector,

0916270030 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

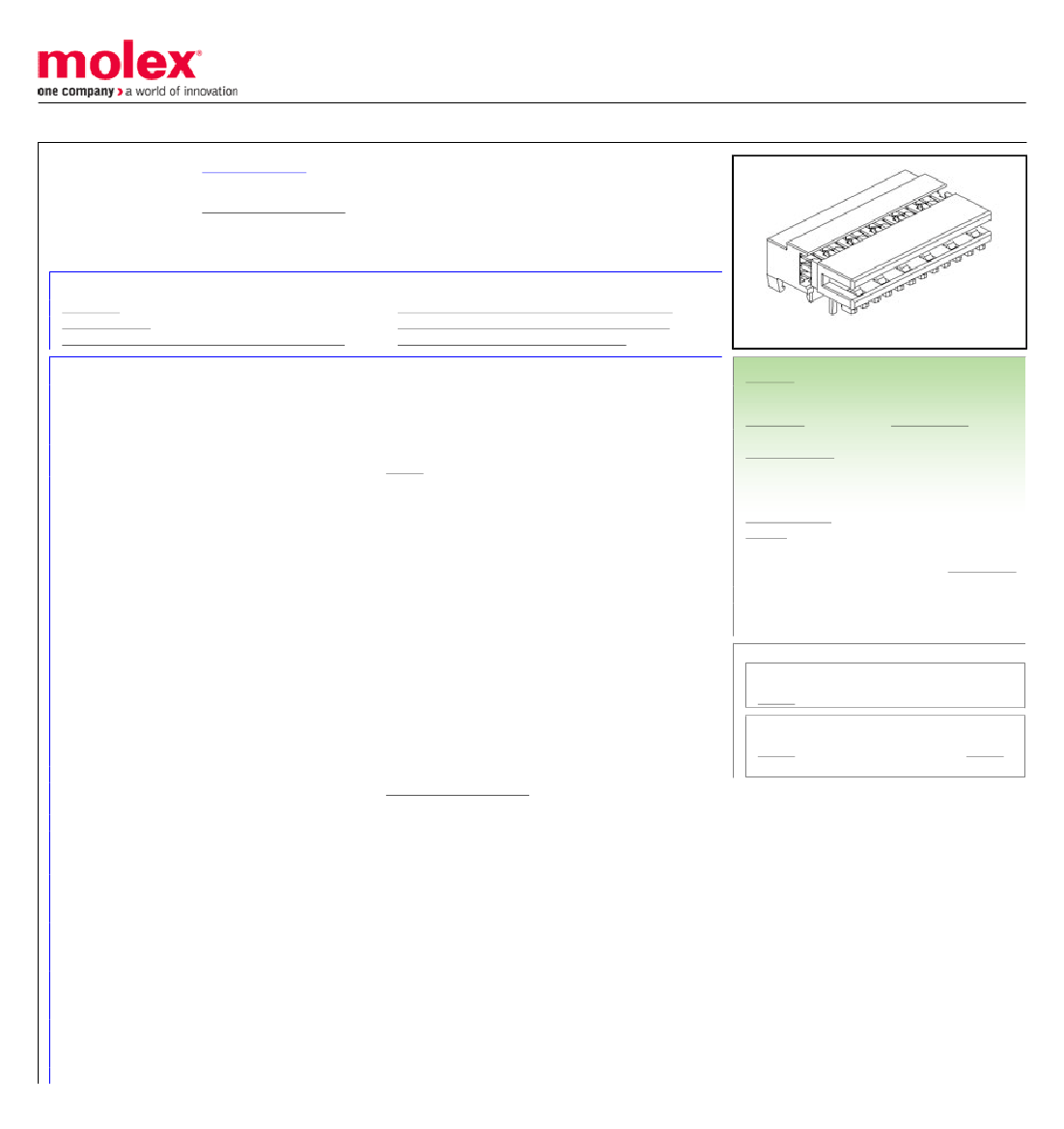

This document was generated on 10/16/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0916270030

Active

RAST Power Connector

5.00mm Pitch Appli-Mate RAST Power IDT Housing, Direct/Indirect, Female, 2 Circuits,

Glow-Wire Capable, Removed Coding Keys None, End Wall Open, Polarization Rib 1 &

Documents:

3D Model

Drawing (PDF)

Product Specification PS-91627-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Comments

Application Specification AS-91627-001 (PDF)

Packaging Specification PK-91627-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/61/2018 (27 June

2018)

Halogen-Free

Status

Not Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

IDT and Solder Connectors

91627

"""This Molex product is manufactured from material

that has the following ratings, tested by independent

agencies:. a) A Glow Wire Ignition Temperature (GWIT)

of at least 775 deg C per IEC 60695-2-13.. b) A Glow

Wire Flammability Index (GWFI) above 850 deg C

per IEC 60695-2-12.and hence complies with the

requirements set out in the International Standard IEC

60335-1 5th edition - household and similar electrical

appliances - safety, section 30 Resistance to heat

and fire. <P><P> The customers using this product

must determine its suitability for use in their particular

application through testing or other acceptable means

as described in end-product glow-wire flammability test

standard IEC 60695-2-11 and any applicable product

end-use standard(s). <P> If it is determined during

the customer’s evaluation of suitability, that higher

performance is required, please contact Molex for

possible product options."""

Yes

RAST Power Connector

RAST Power

884982414082

RAST standard Interface

Natural (White)

94V-2

Female

Yes

None

High Performance Alloy (HPA)

Tin

Nylon

1.378/g

Search Parts in this Series

91627 Series

Mates With

90860 Appli-Mate Vertical Header. 90861

Appli-Mate Right Angle Header

Crimp Quality Equipment

Overview

Product Name

UPC

Use With

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Capable

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight
