33472-1681 datasheet, PDF - EEWORLD Datasheet

33472-1681: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, 0.138 inch Pitch, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size550KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

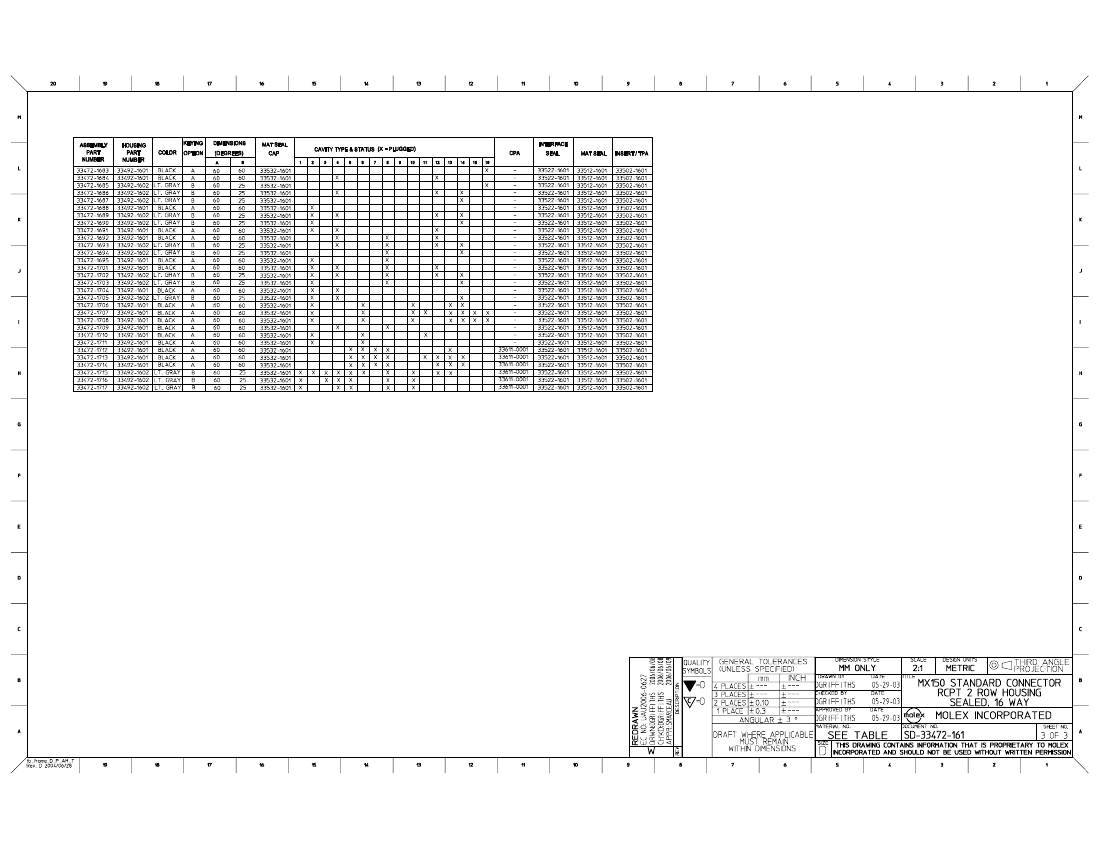

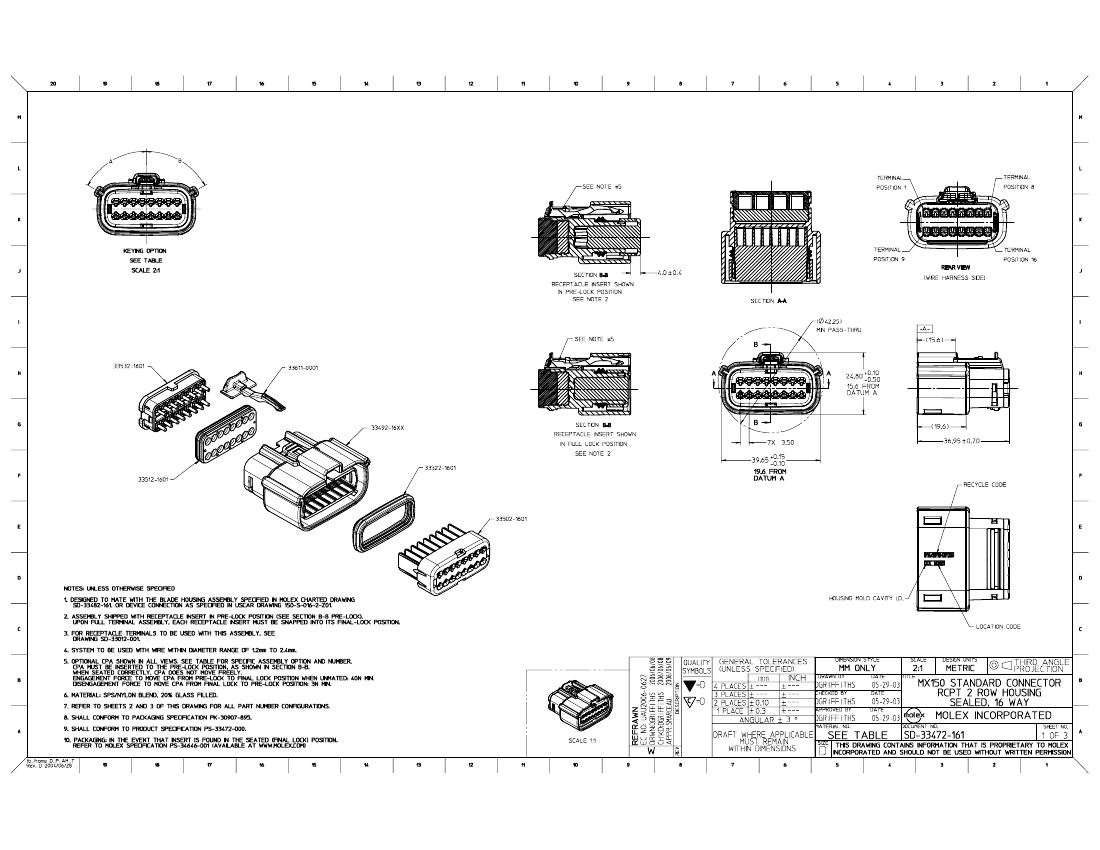

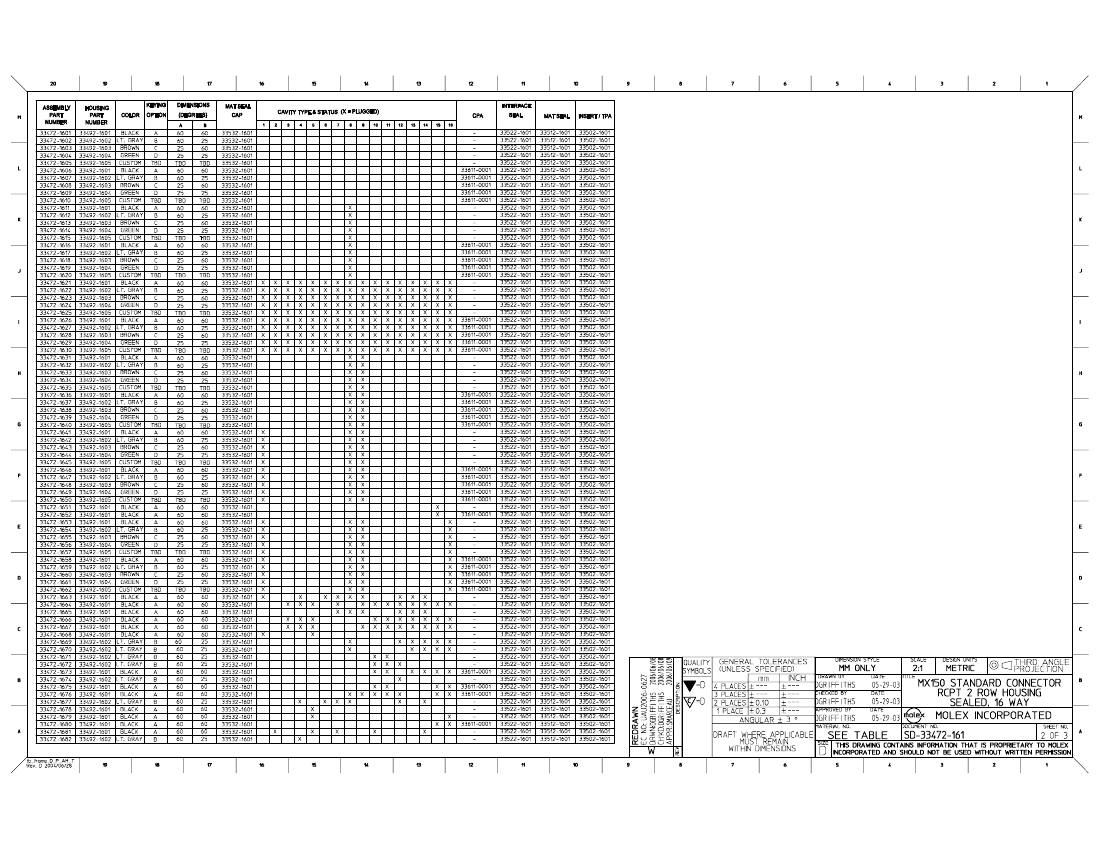

33472-1681 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, 0.138 inch Pitch, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.976 inch
subject depth	1.445 inch
body length	1.561 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	33472
Plug contact pitch	0.138 inch
Installation option 1	LOCKING
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	22 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	16

	33472-1681	33472-1680
Description	Board Connector, 16 Contact(s), 2 Row(s), Female, 0.138 inch Pitch, Locking, Black Insulator, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, 0.138 inch Pitch, Locking, Black Insulator, Plug
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.976 inch	0.976 inch
subject depth	1.445 inch	1.445 inch
body length	1.561 inch	1.561 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	COMBINATION LINE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON
Plug contact pitch	0.138 inch	0.138 inch
Installation option 1	LOCKING	LOCKING
Number of rows loaded	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	22 A	22 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Total number of contacts	16	16
