502231-3309 datasheet, PDF - EEWORLD Datasheet

502231-3309: DescriptionCard Edge Connector, 33 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Latch & Eject, Natural Insulator; CategoryThe connector The connector; File Size341KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

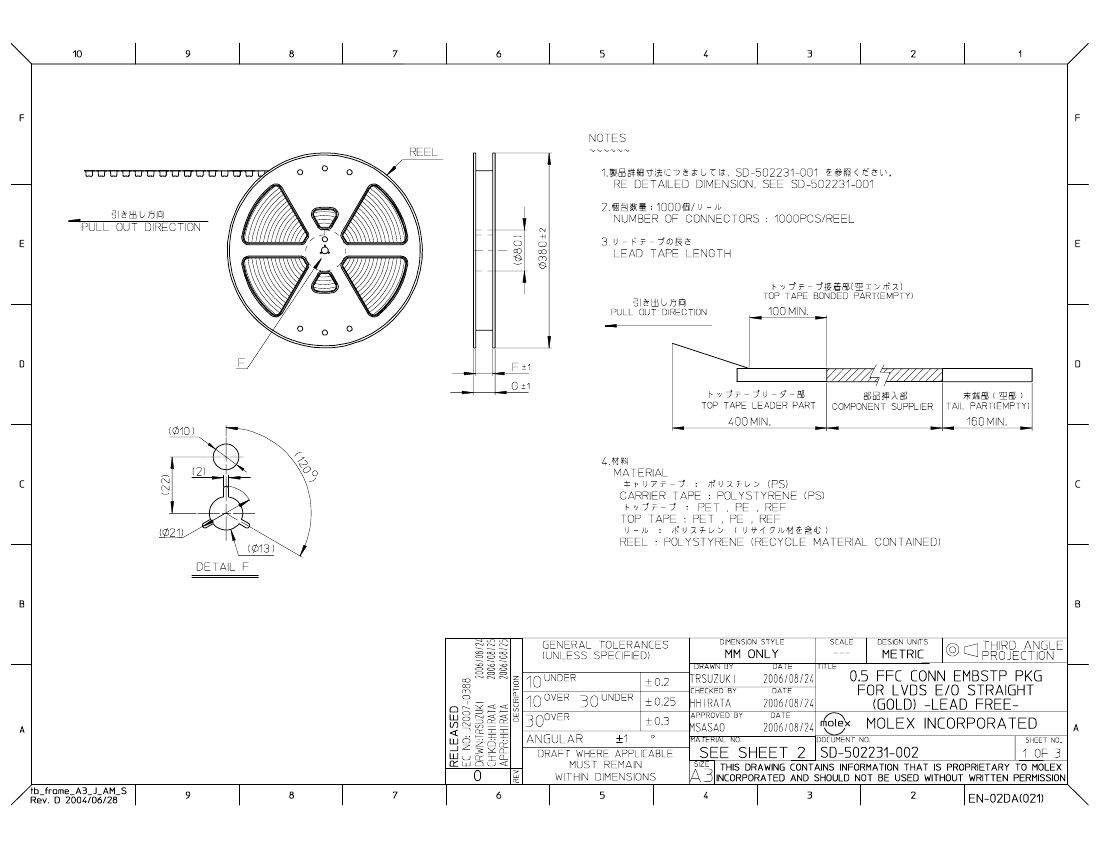

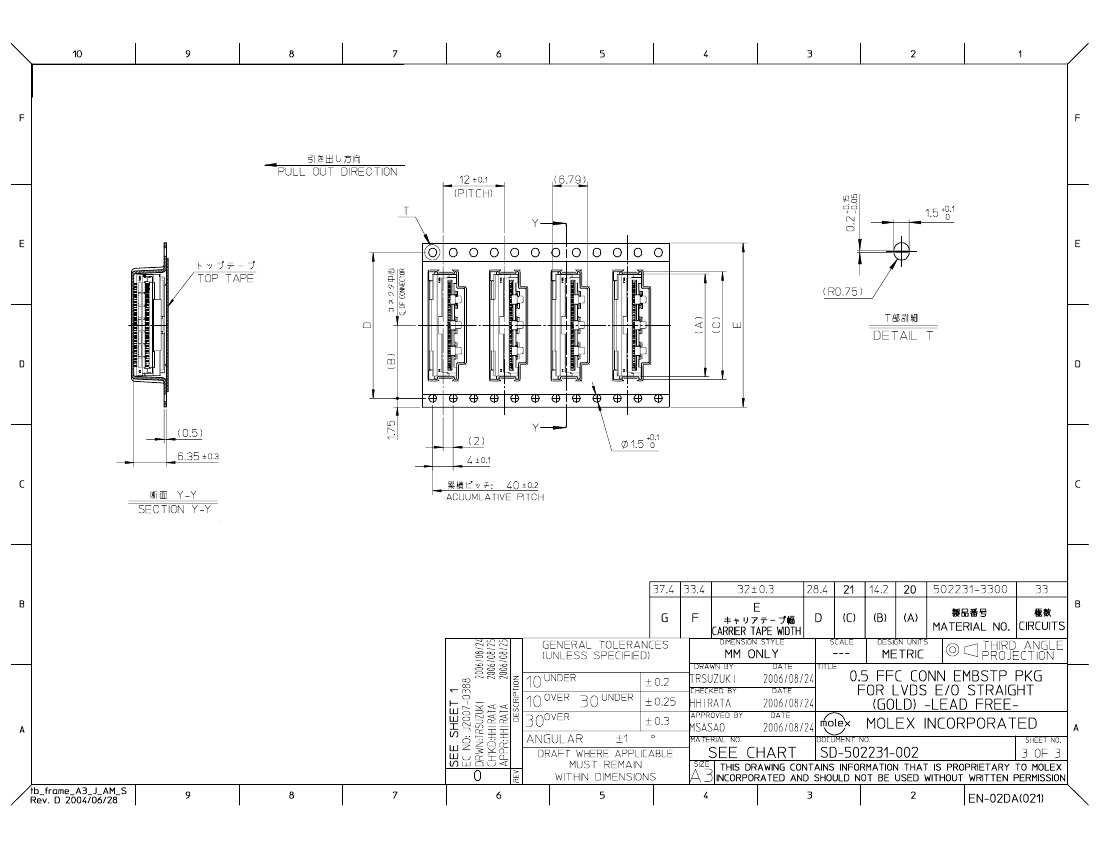

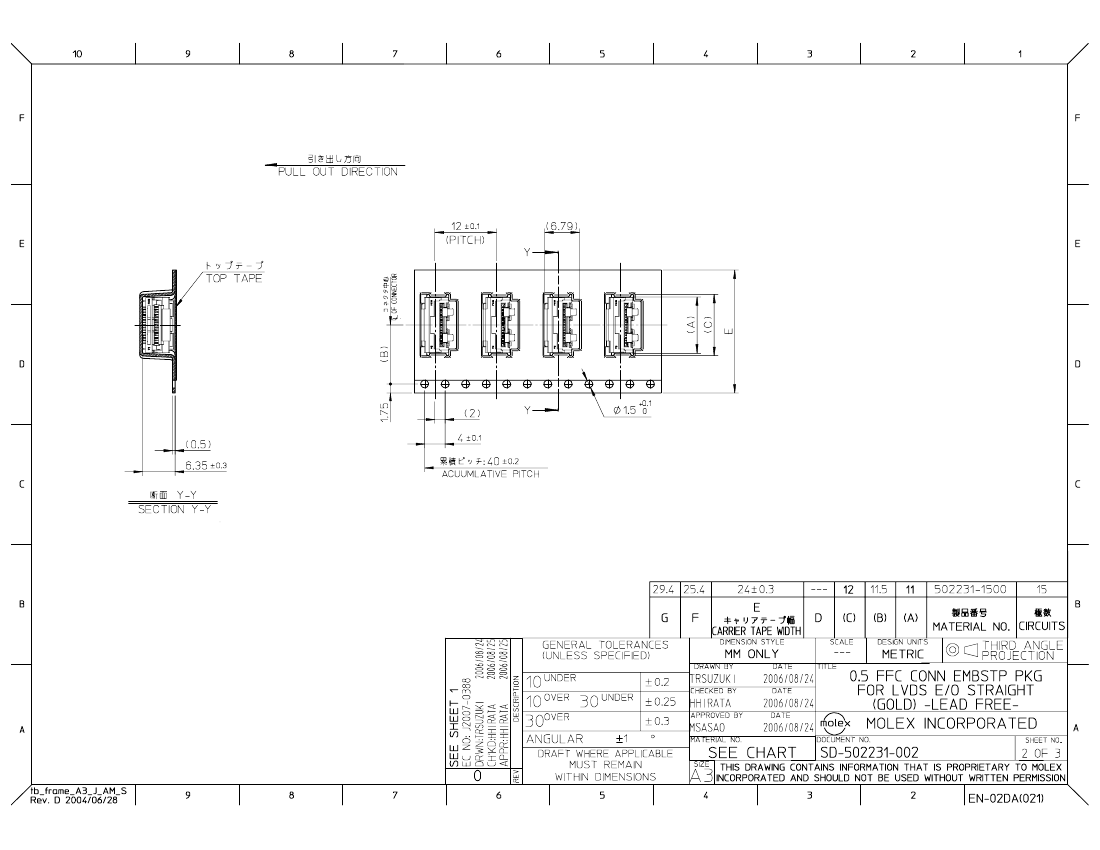

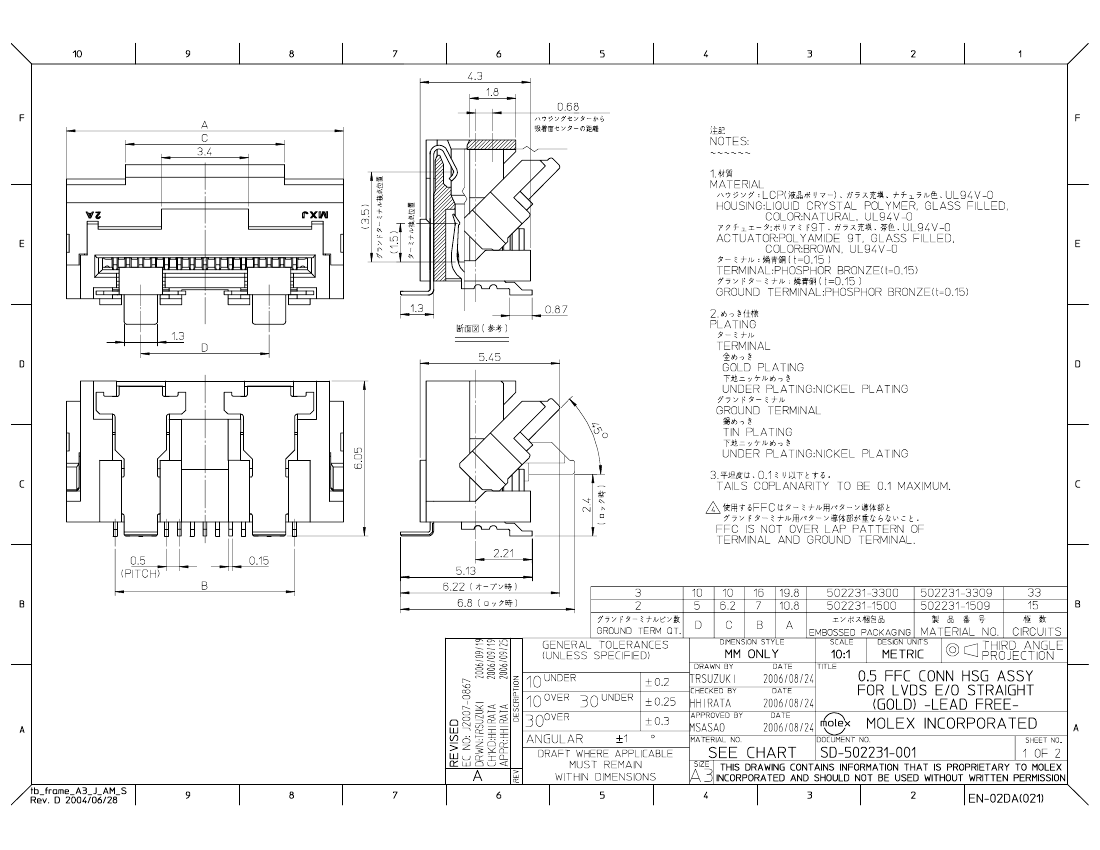

502231-3309 Overview

Card Edge Connector, 33 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Latch & Eject, Natural Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS AND ELV COMPLIANT
body width	0.169 inch
subject depth	0.238 inch
body length	0.78 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.02 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C

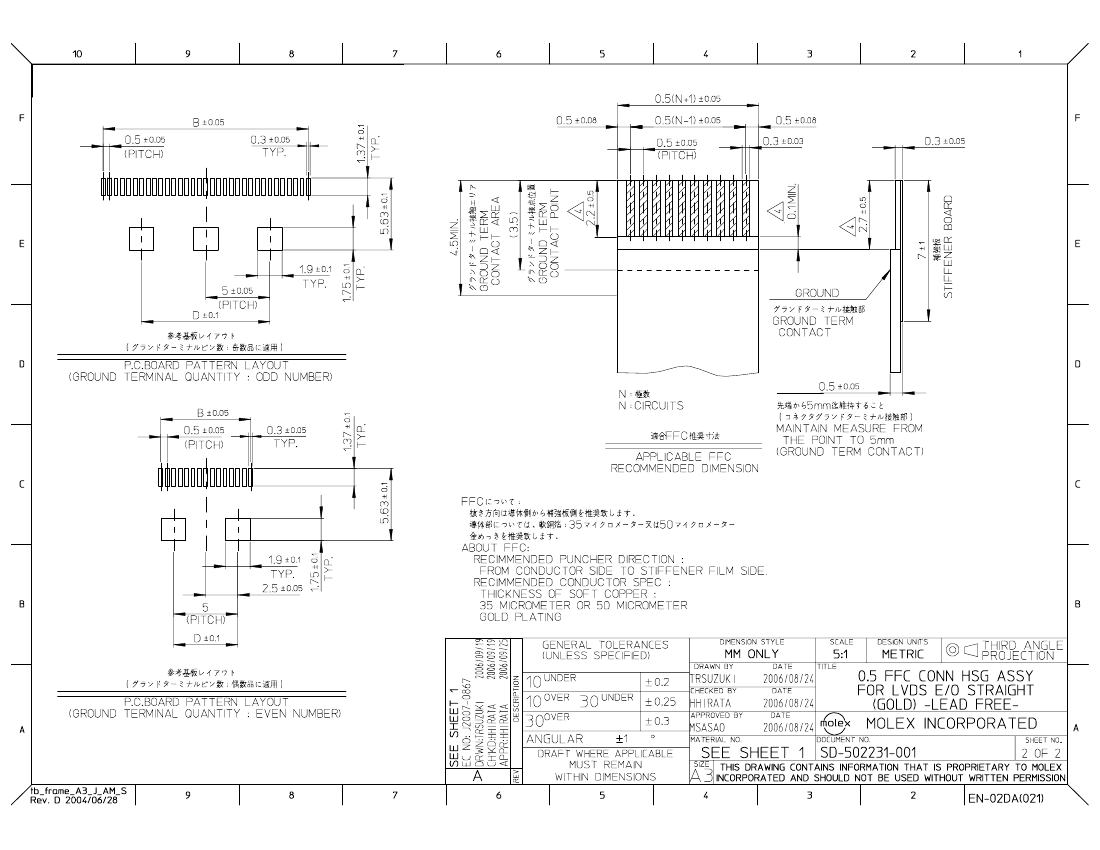

PCB contact pattern	RECTANGULAR
Plating thickness	4u inch
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	33
