54LS168A/BEBJC datasheet, PDF - EEWORLD Datasheet

54LS168A/BEBJC: DescriptionDecade Counter, Synchronous, Bidirectional, TTL, CDIP16; Categorylogic logic; File Size269KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

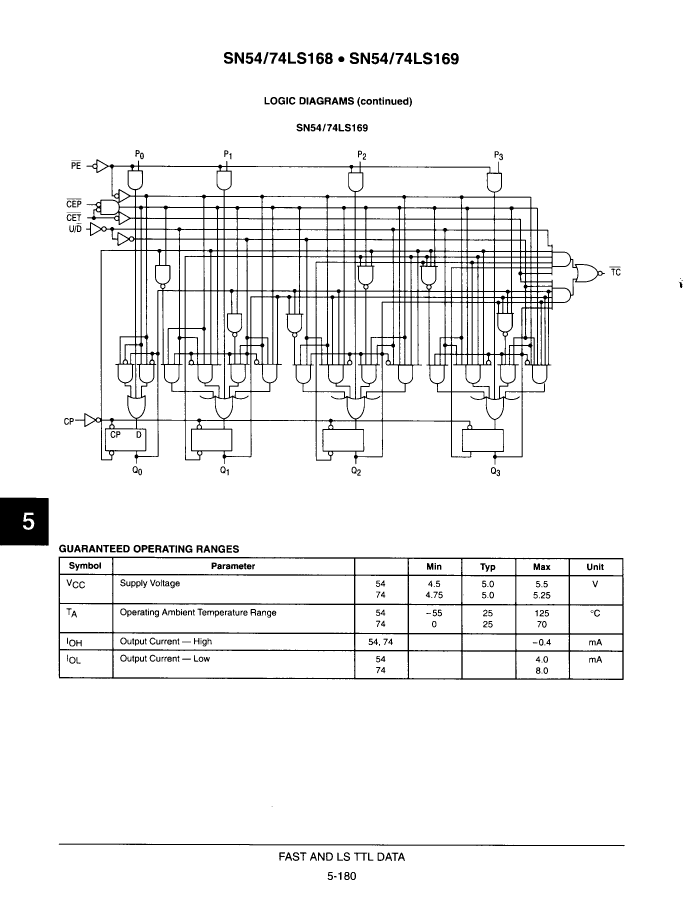

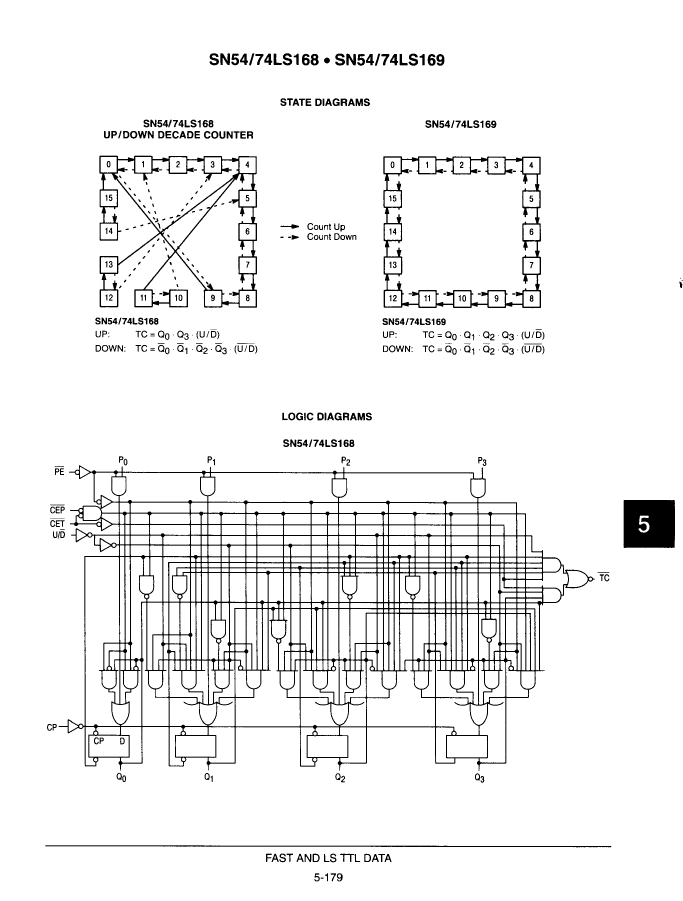

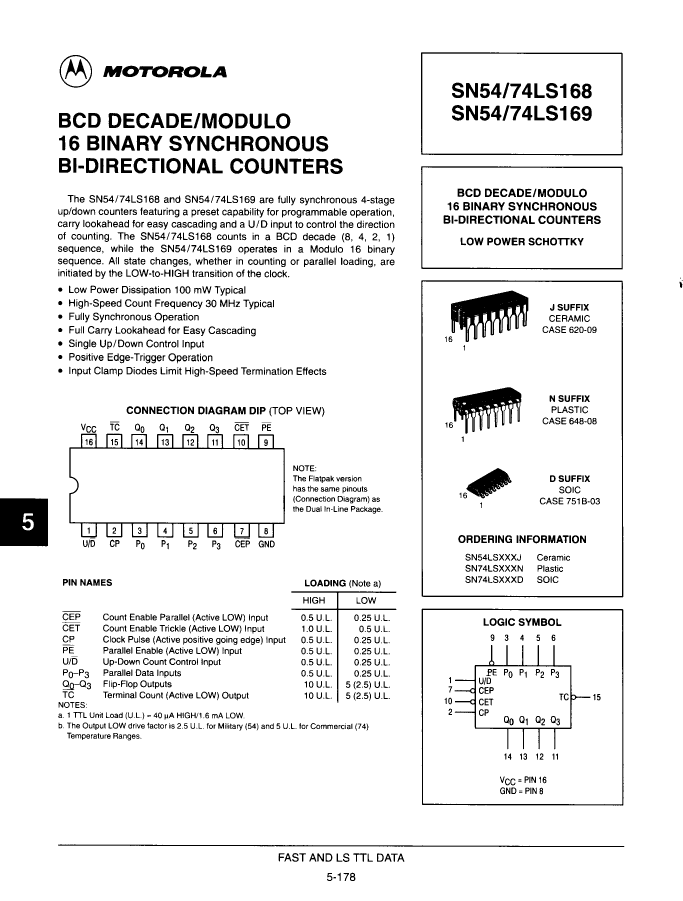

54LS168A/BEBJC Overview

Decade Counter, Synchronous, Bidirectional, TTL, CDIP16

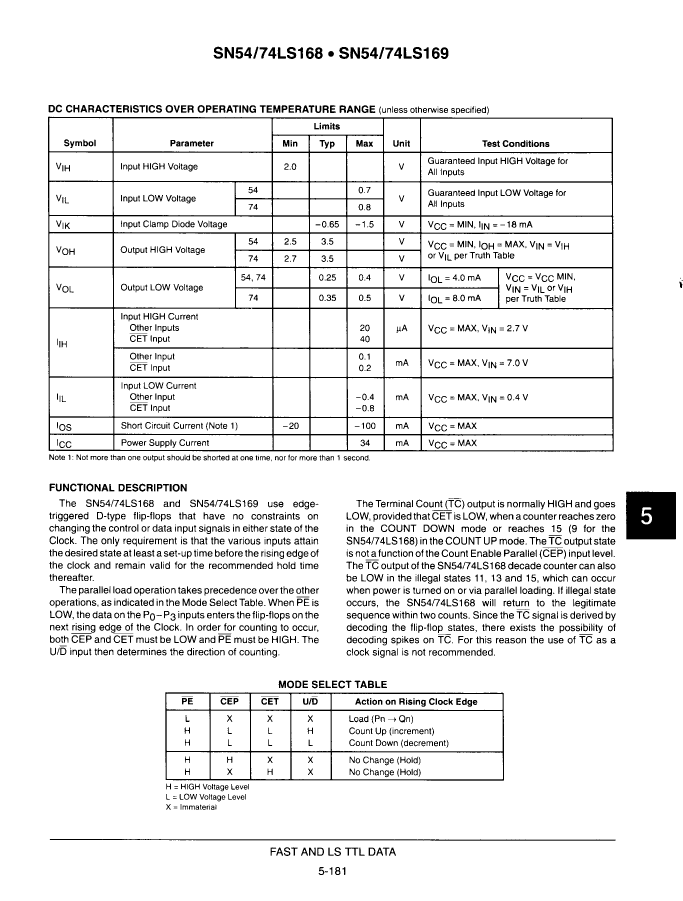

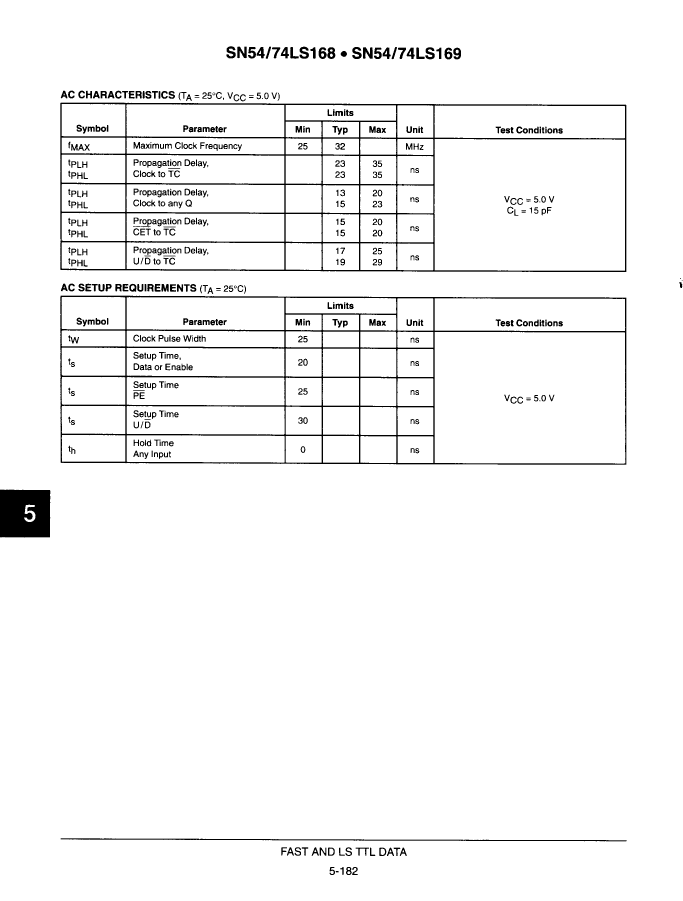

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknow
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
