#A921CY-4R7M=P3 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> #A921CY-4R7M=P3

#A921CY-4R7M=P3: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, LEAD FREE; CategoryPassive components inductor; File Size721KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

#A921CY-4R7M=P3 Overview

General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, LEAD FREE

#A921CY-4R7M=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 2524
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	2524
structure	Magnetically Shielded
core material	FERRITE
DC Resistance	0.033 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3 mm
Package length	6.3 mm
Package form	SMT
Package width	6.2 mm
method of packing	TR
Maximum rated current	2.58 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	LOW PROFILE
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

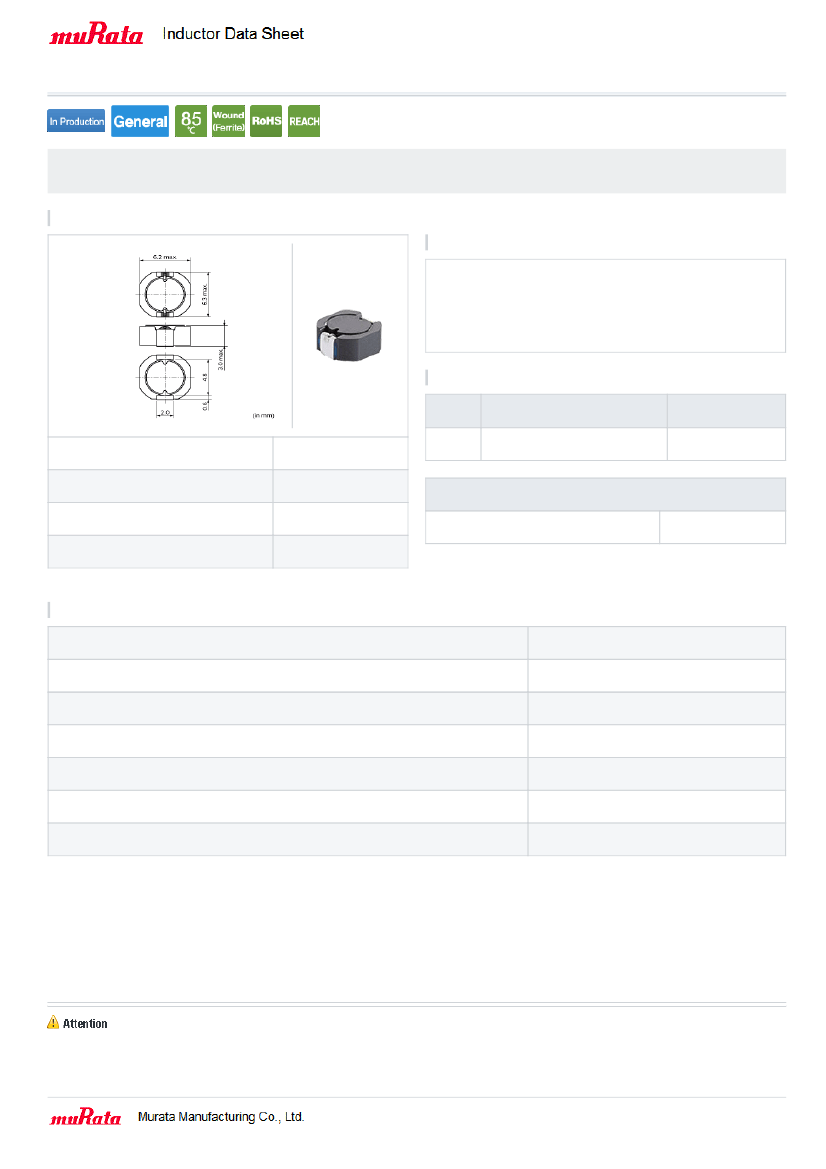

#A921CY-4R7M=P3

< List of part num bers with package codes >

#A921CY-4R7M=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 30%. (The ambient reference temperature is

20℃)

Rated current (Itemp) is specified when temperature of the

inductor is raised 40℃ by DC current. (The ambient reference

temperature is 20℃)

References

Packaging

code

L size

W size

T size

Size code in inch (mm)

6.3 mm

6.2 mm

3 mm

2524 (6362)

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

1500

Mass (Typ.)

1 piece

0.358g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

4.7µH ±20%

0.1MHz

1660mA

2580mA

0.033Ω

-40½85℃

Magnetic shield of

½errite

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 20 16 /0 9/19
