CABLE-D-9SUB/M/OE/0,25/S/1,0M datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> CABLE-D-9SUB/M/OE/0,25/S/1,0M

CABLE-D-9SUB/M/OE/0,25/S/1,0M: DescriptionCable Assembly,; CategoryThe connector Connector bracket; File Size63KB，5 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

CABLE-D-9SUB/M/OE/0,25/S/1,0M Overview

Cable Assembly,

CABLE-D-9SUB/M/OE/0,25/S/1,0M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compli
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/in/products/2926373

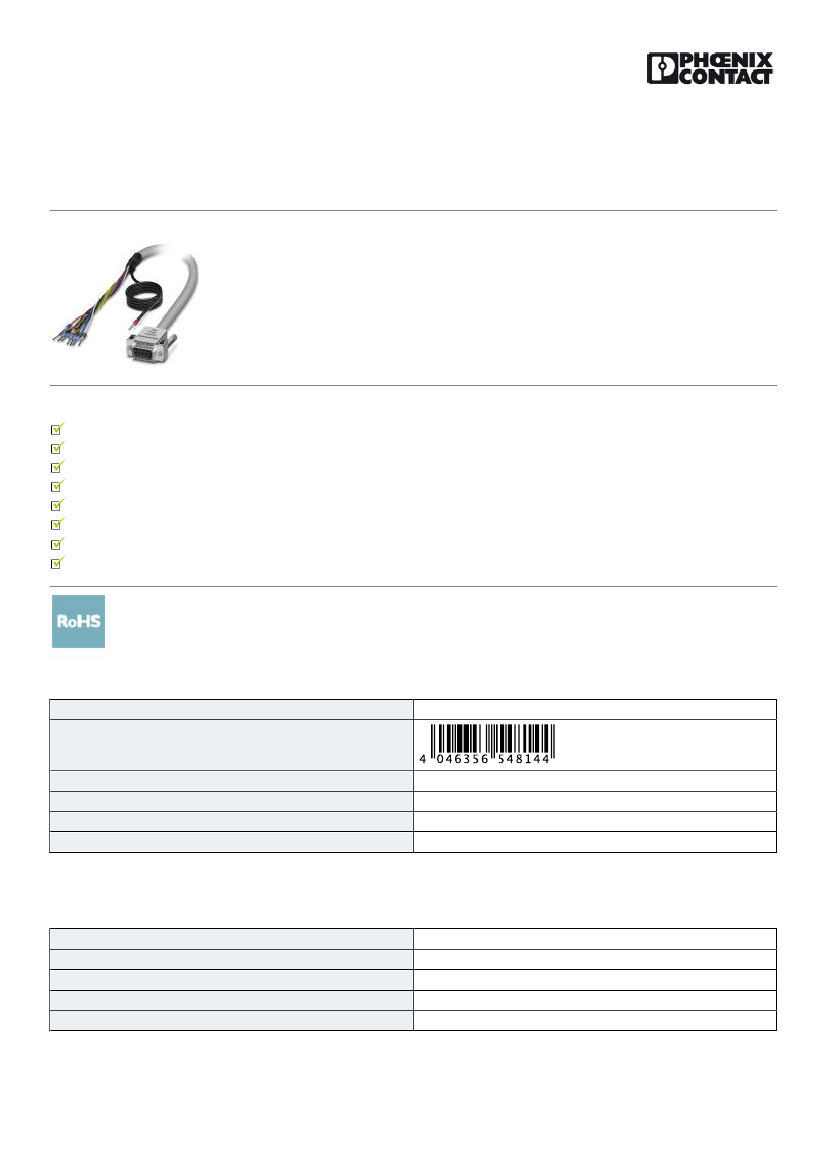

Cable - CABLE-D- 9SUB/M/OE/0,25/S/1,0M - 2926373

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Assembled shielded round cable; connection 1: Single wires (9-position) (The wires are marked and fitted with

ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 9-position);

cable length: 1 m

Your advantages

Individual wire marking: 1, 2, 3, 4, etc.

Individual wires fitted with ferrules

Connector according to IEC 60807-2/DIN 41652

D-SUB socket or pin strip at one end

1:1 connection

Shield connection: H05V-K 1 mm² cable, black, 0.5 m in length

Screw connection: 2 UNC 4-40 screws

Open end at one end

Key Commercial Data

Packing unit

GTIN

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

4046356548144

94.900 g

85444290

Germany

1 pc

Technical data

General

Nominal voltage U

Max. current carrying capacity per path

Max. conductor resistance

Length of cable

25 V AC

60 V DC

≤ 0.09 Ω/m

01/01/2019 Page 1 / 5
