I605-4CC5H-20.000: Description5 mm x 7 mm Ceramic Package SMD VCXO, TTL / HC-MOS; File Size43KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com

Download Datasheet View All

I605-4CC5H-20.000 Overview

5 mm x 7 mm Ceramic Package SMD VCXO, TTL / HC-MOS

Preview

Download Datasheet

View All

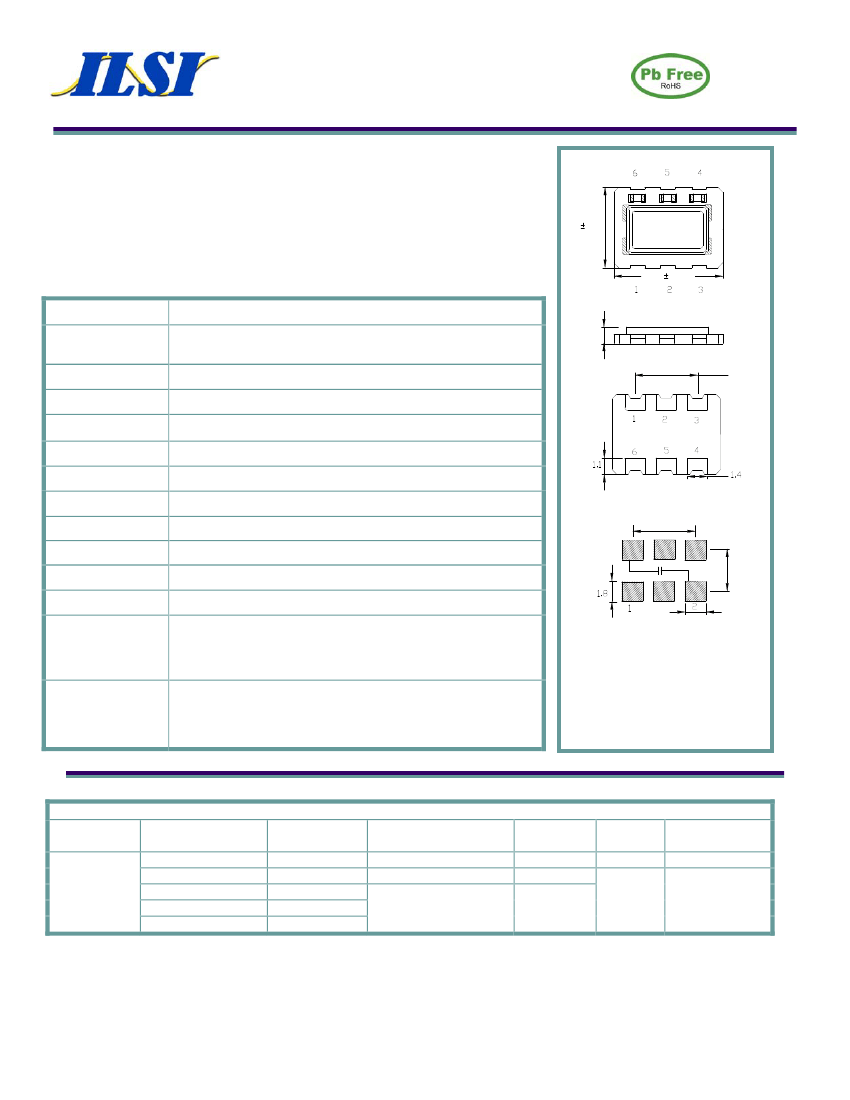

5 mm x 7 mm Ceramic Package SMD VCXO, TTL / HC-MOS

I605 Series

Product Features:

Small Surface Mount Package

Based Output for many frequencies

CMOS/TTL Compatible Logic Levels

Compatible with Leadfree Processing

Applications:

SD/HD Video

Wireless Base Stations

Sonet /SDH

VoIP

T1/E1, T3/E3

5.0

0.2

7.0 0.3

Frequency

Output Level

HC-MOS

TTL

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

Start-up Time

Supply Voltage

Control Voltage

Pull Range

Current

Linearity

Temperature

Operating

Storage

1 MHz to 170.000 MHz

2.0 Max.

‘0’ = 0.1 Vcc Max., ‘1’ = 0.9 Vcc Min.

‘0’ = 0.4 VDC Max., ‘1’ = 2.4 VDC Min.

50% ±5%

10.0 nS Max.

15pF, Fo < 50 MHz = 10 TTL, Fo > 50 MHz = 5 TTL

50 ppm Max.

10 mS Max.

See Input Voltage Table, tolerance ±5 %

1.65 VDC ±1.5 VDC for 3.3 VDC, 2.5 VDC ±2.0 VDC for 5.0 VDC

See Pullability Table

50 mA Max**

10% Max.

Bypass =0.01 uF

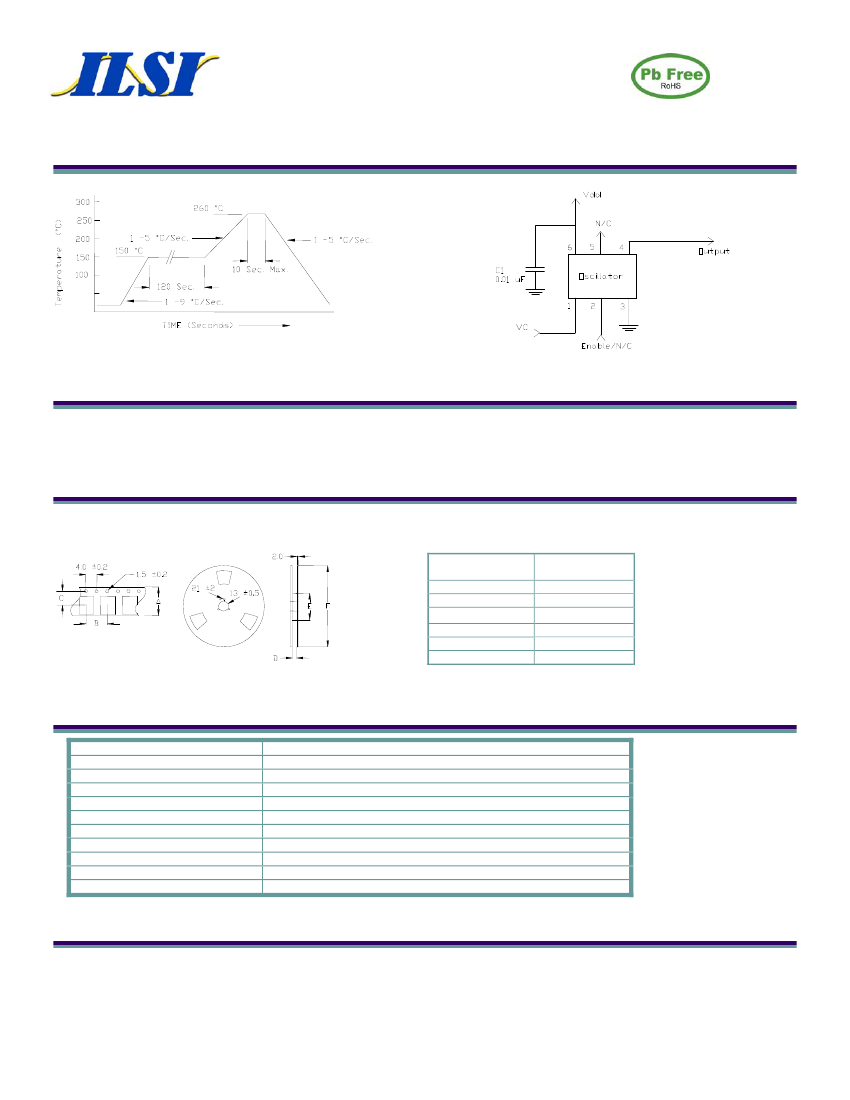

Recommended Pad Layout

5.08

4.2

2.0

See Operating Temperature Table in Part Number Guide

-55



C to +125



Phase Jitter

<3 pS RMS

Connection

Control Voltage

Enable / Disable

Ground

Output

N.C.

Vdd

Dimension Units: mm

Part Number Guide

Package

Operating

Temperature

1 = 0 C to +70 C

6 = -10 C to +70 C

Sample Part Number: I605-1BC3H-20.000

Stability

Pullability

(in ppm)

*D =

15

A =

25

B =

50

C =

100

B =

50

PPM Min.

C =

100

PPM Min.

Supply

Voltage

5 = 5.0 VDC

3 = 3.3 VDC

Enable /

Disable

H = Enable

Frequency

- 20.000 MHz

I605 -

3 = -20 C to +70 C

4 = -30 C to +75 C

2 = -40 C to +85 C

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 6) and GND (pin 3) to minimize power supply noise.

* Not available at all frequencies. ** Frequency, supply, and load related parameters.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

12/10_C
