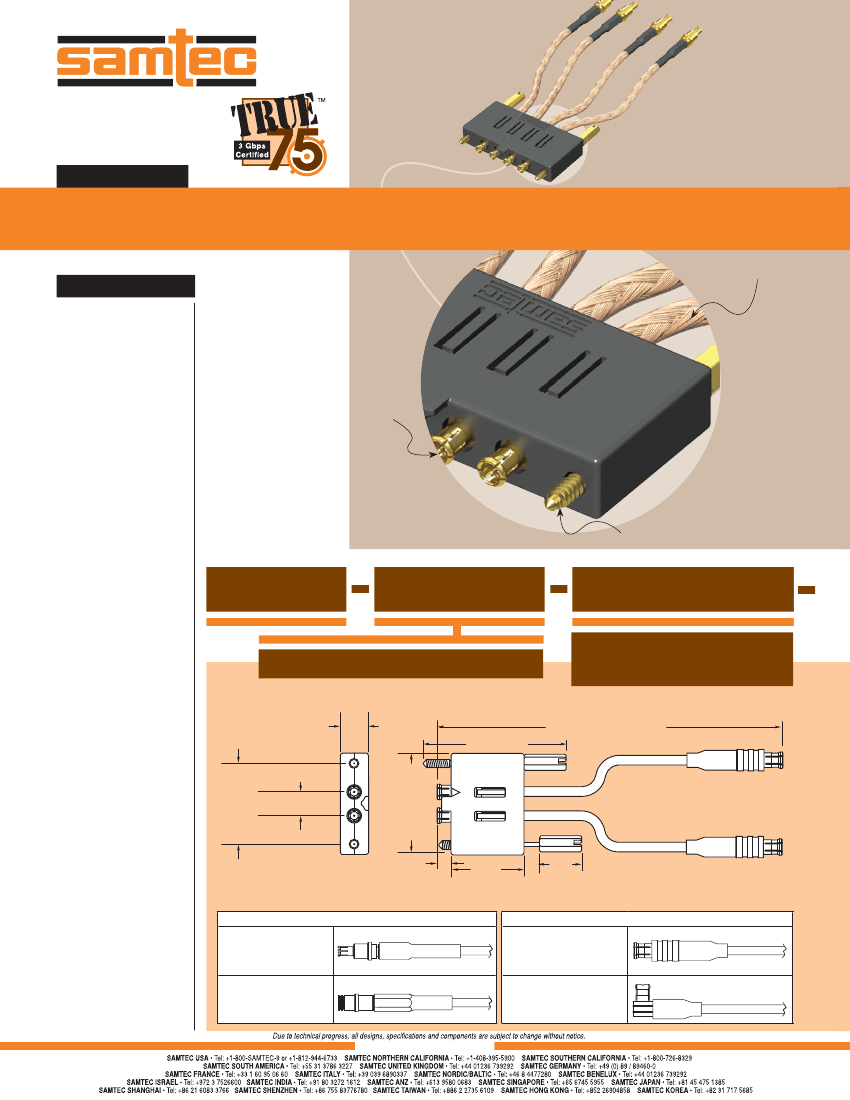

RF-13 (Rev 28FEB14)
GRF7H–4–0500–1–CA3–S–73SP1
(5,00 mm) .197"
75Ω HYBRID MICRO-MINI RF CABLE
SPECIFICATIONS
For complete specifications see
www.samtec.com?GRF7H-C
Mates with:
GRF7-J, MCX7, MMCX7,
SMB7H, DIN7A, BNC7T
High performance
30 AWG RG 179
coax cable
RF Connector:
Shell Material:
Brass
(GRF, MCX, SMB,
DIN, BNC, MMCX7-J)
BeCu
(MMCX7-P)
Insulator Material:
PTFE
Contact Material:
BeCu
(GRF, SMB)
Brass
(MCX, BNC-P, MMCX7)
Copper Alloy
(DIN, BNC-J)
Operating Temp Range:
-40°C to +90°C
Impedance:
75Ω
RoHS Compliant:
Yes
2, 4, 6 or 8
Positions
Optional Captive
Panel Screws
RG 179 Cable:
Impedance:
75Ω ±3Ω
Capacitance:
64 pF/meter
Max Attenuation
(cable only):
0.8dB @ 1GHz for 1 meter
Conductor Size:
30 AWG, (0,31 mm) .012" dia.
Conductor Material:
Silver Plated Copper
Insulator Material:
PTFE
Shield Material:
Silver Plated Copper
Jacket Material:
FEP
Jacket Diameter:
(2,54 mm) .100"
Jacket Color:
Amber
RoHS Compliant:
Yes
GRF7H
NO. OF
POSITIONS
ASSEMBLED
LENGTH
–“XXXX”
–2, –4, –6, –8
(6,00)
.236
(28,58) 1.125
(No. of
Positions
x
(5,00) (No. of Positions -1)
x (5,00) .197
.197)
+
(7,20)
.283
No.
Positions
x
(5,00)
.197
+
(11,60)
.457
(2,86)
.112
(15,50)
.610
(8,89)
.350
= Assembled Length in millimeters
–0100 (100 mm) 3.94" minimum
Assembled Length = XXXX
–72SP1 END 2
OPTION SHOWN
END OPTIONS
–73SP1 = 75Ω MMCX7
Straight Plug
(30µ" (0,76 µm) Gold
on Center Contact,
Gold Flash on Shell)
–73SJ1 = 75Ω MMCX7
High Vibration Straight Jack
(30µ" (0,76 µm) Gold
on Center Contact,
Gold Flash on Shell)
–72SP1 = 75Ω MCX
Straight Plug
(30µ" (0,76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–72RP1 = 75Ω MCX
Right Angle Plug
(30µ" (0,76 µm)
Gold on Center Contact,
Gold Flash on Shell)
END OPTIONS
Note:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Note:
This Series is non-standard,
non-returnable.
WWW.SAMTEC.COM

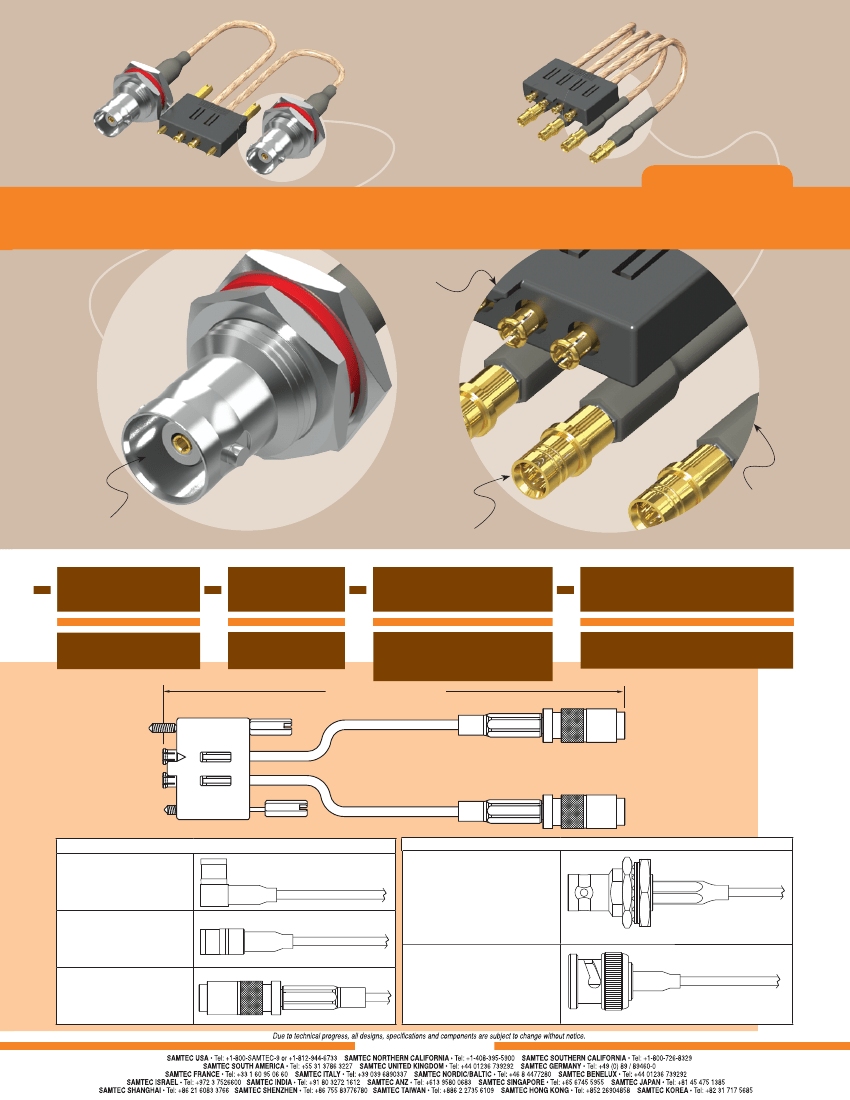

GRF7H–2–0300–1–CA3–S–74BJ3
GRF7H–4–0800–1–CA3–73SJ1
GRF7H-C SERIES
Optional
captive panel
screws
Variety of standard straight
and right angle plugs and jacks
High
vibration
jacks
Standard heat
shrink wraps
END 1
PLATING
CABLE
TYPE
SCREW
OPTION
END 2
OPTION
–1
= All Gold components
–CA3
= RG 179 cable
Assembled Length = XXXX
–S
= Captive Panel Screws
(Leave blank for no Screw Option)
Specify END OPTIONS
from chart
–78SP4 END 2
OPTION SHOWN
END OPTIONS
–77RP1 = 75Ω SMB
Right Angle Plug
(30µ" (0,76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–77SP1 = 75Ω SMB
Straight Plug
(30µ" (0,76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–78SP4 = 75Ω DIN
Straight Plug
(10µ" (0,25 µm)
Gold on Center Contact,
Nickel on Shell)
END OPTIONS
–74BJ3 = 75Ω BNC
Straight Bulkhead Jack
(10µ" (0,25 µm)
Gold on Center Contact,
Nickel on Shell)
–74SP3* = 75Ω BNC
Straight Plug
(10µ" (0,25 µm)
Gold on Center Contact,
Nickel on Shell)
(*Die Cast also available = –D4SP3)
WWW.SAMTEC.COM
