REVISION P
1.40 .055
2.79 .110
S1SSX-XX-XXX-XX-XX.XX-X-XXX
FEP CABLE OPTION
-T: FEP INSULATION
LEAVE BLANK FOR PVC
(SEE NOTE 8)
No OF POSITIONS
-02, -03, -05, -07, -10, -15, -20
(PER ROW) AVAILABLE AS STANDARD
-02 THRU -20 AVAILABLE AS ASO
WIRE GAUGE (AWG)
-28, -30
COLOR CODE
-C: COLOR CODE WIRE
(SEE TABLE 3, SHEET 2)
LEAVE BLANK FOR STANDARD WIRE
(SEE TABLE 1 )
NOT AVAILABLE WITH S1SST
OPTION
DOUBLE
(MUST BE USED ON -D END OPTION ONLY
& APPLIES TO END 2 HOUSING)
-NUS: NO LATCH, "N" UP, STRAIGHT
-NDS: NO LATCH, "N" DOWN, STRAIGHT
END OPTION
-S: SINGLE END
-D: DOUBLE END
ASSEMBLIED LENGTH
(SPECIFY IN INCHES)
01.80 IN MINIMUM
PLATING SPECIFICATION
*-T: TIN PLATING
-GF: 3u" MIN Au/50u" Ni
IN CONTACT AND TAIL
* = EXISTING CUSTOMERS ONLY
5.00 .197 REF
DO NOT
SCALE FROM
THIS PRINT
1.40 .055
-S: SINGLE END
5.59 .220
1.40 .055
-D: DOUBLE END
OVERALL LENGTH SUBTRACTORS
'B'
0.050±0.040 .0020±.0016
(TYP)
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
C-309-01-XX
DETAIL 'A'
SCALE 12 : 1
2.80 .110 REF
POSITION 1 INDICATOR
ASSEMBLED LENGTH
C
(SEE NOTE 4)
01
'A'
02
1.03 .040
"D"
C
"A"
REF
"B"
REF
"C"
REF
DWCX-XX-XX-XXX
ISS1-02
S1SS-02-30-XX-XX.XX-S SHOWN
FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: SIGNAL: 6.6N[1.5 LB]
3. PARTS TO BE PACKAGED IN BAG.
4. FOR ASSEMBLIED LENGTHS LESS THAN 13.00 IN, TOLERANCE SHALL BE
± .125[3.18], FOR OTHER LENGTHS, TOLERANCE SHALL BE ± 2%.
C
5. REFER TO CRIMP SPECIFICATIONS FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING, AND ITS REQUIREMENTS.
C
6. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS IN PLACE.
7. ALL FINISHED GOODS ARE TO BE ELECTRICALLY TESTED INCLUDING
HI-POT TEST AT 1000 VOLTS DC. AFTER FINAL ELECTRICAL TEST, LABEL EACH
ASSEMBLY WITH (1) ET STAMP ON THE BODY.
8. SINGLE ENDED ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP
APPLICATIONS ONLY.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
DETAIL 'B'
SCALE 8 : 1
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
SEE NOTE 6
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
INSULATOR: PPA UL 94-V0, COLOR: BLACK
CONTACT: PHOS BRONZE
DO NOT SCALE DRAWING
SHEET SCALE: 6:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.

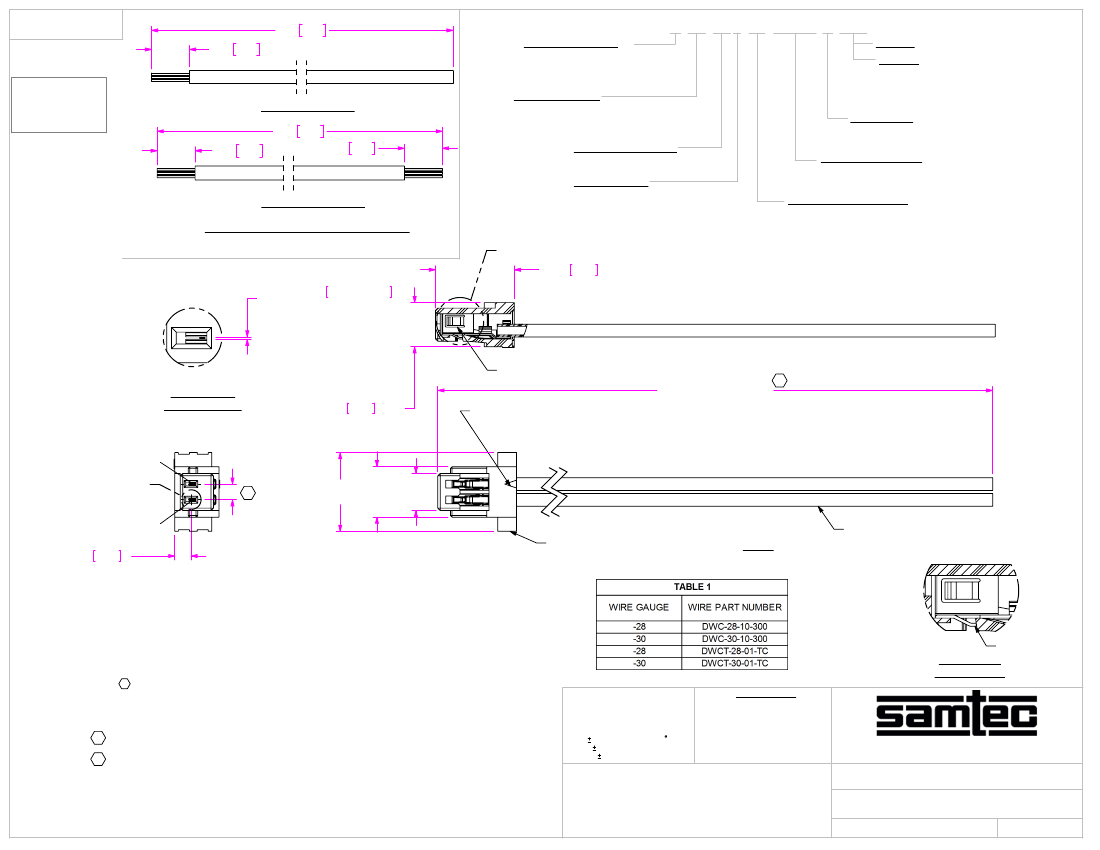

1MM CABLE ASSEMBLY
S1SSX-XX-XXX-XX-XX.XX-X-XXX
04/13/2010
SHEET
1
OF
2
F:\DWG\MISC\MKTG\S1SSX-XX-XXX-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
VICKY Z
REVISION P
02
ASSEMBLED LENGTH
(SEE NOTE 4)
"N" LOGO UP
01
01
"N" LOGO UP

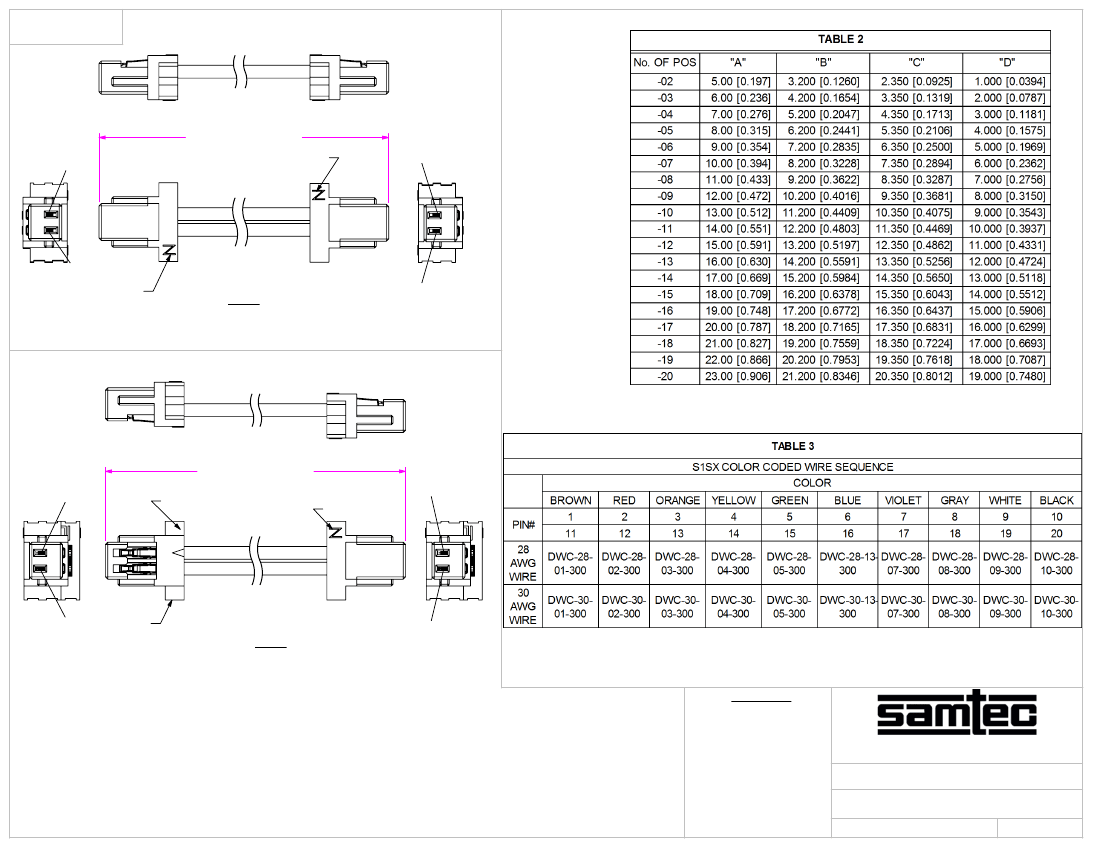

S1SS-02-30-XX-XX.XX-D-NUS SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 2
02
ASSEMBLED LENGTH
(SEE NOTE 4)
01
"N" LOGO DOWN
"N" LOGO UP
01
02
ISS1-02
S1SS-02-30-XX-XX.XX-D-NDS SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
02
FIG 3
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
1MM CABLE ASSEMBLY
S1SSX-XX-XXX-XX-XX.XX-X-XXX
04/13/2010
SHEET
2
OF
2
F:\DWG\MISC\MKTG\S1SSX-XX-XXX-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
VICKY Z
