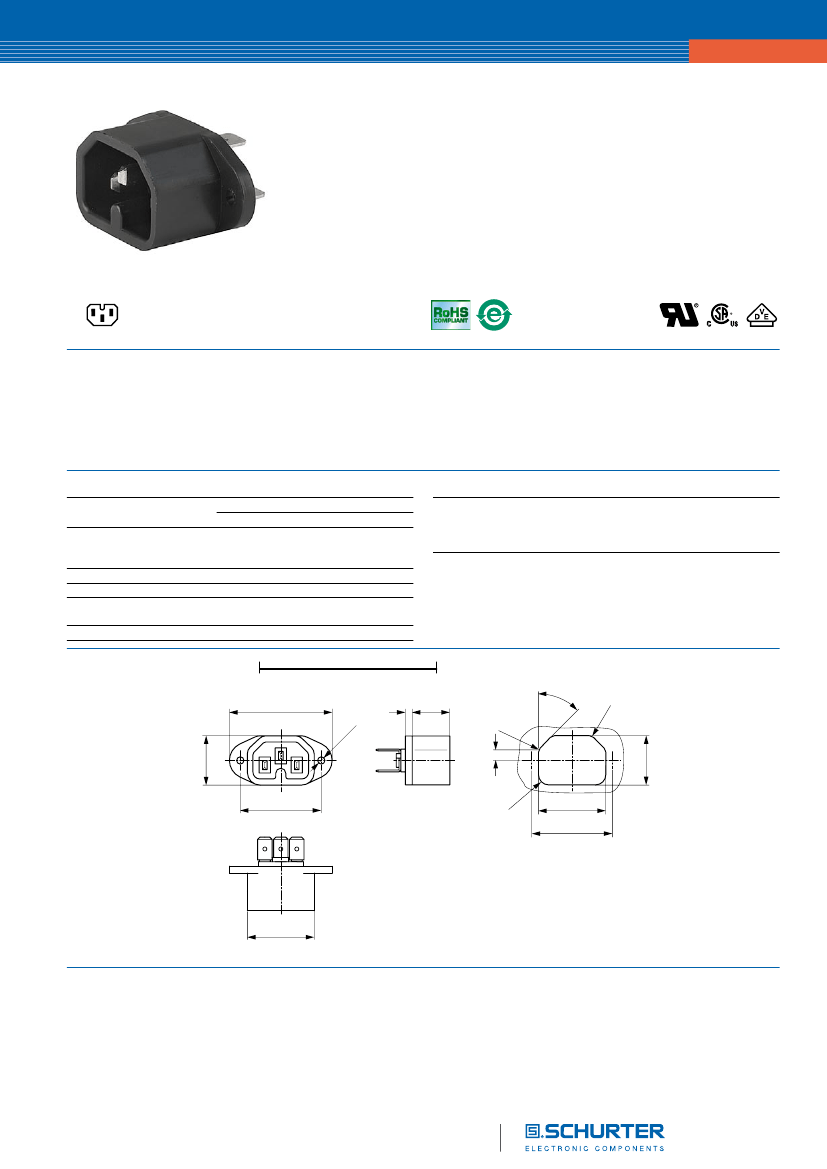

Connectors (Inlets/Outlets)
www.schurter.com/pg07
IEC Appliance Inlet C16, Screw-on Mounting, Front or Rear Side, Quick-connect or Screw-on Terminal
063
C16
120° C
Description
- Panel Mount:
Screw-on mounting, front or rear-side
- Appliance Inlet, Pin temperature 120 °C, Protection class I
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories
Weblinks
Approvals
- VDE Certificate Number: 40009508
- UL File Number: E96454
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 120 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
PA6, black or grey, UL 94V-0
Appliance Inlet
C16 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (For hot
conditions) pin-temperature 120 °C,
10 A, Protection Class 1
Allowable Operation Temp.
Degree of Protection
Protection Class
Material: Housing
Dimensions
45
2
3.
45 mm
R2
.5
.5
21.6
- 0
+0.2
3
16.5
45˚
R2
4.7
21.4
ø
35.5
R
5
4.
29.5
- 0
35.5
+0.2
29.3
Length of the terminal please find at the order code configuration table
Connectors
063
www.schurter.com/pg07
Config. Code
0163
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
Connectors (Inlets/Outlets)
The characters are placeholders for the correspondingly keys of selections from the key tables.
0163
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Type
Type
protection class 1
0163
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Configuration
key
X
Terminal Ground
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
screw terminal
Configuration
key
8
9
A
Symbols similar as in table A
Configuration
key
8
9
A
0163
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal L
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
screw terminal
0163
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Color
Color
jet black: RAL9005
light grey: RAL7035
Configuration
key
A
C
0163
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal N
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
screw terminal
Symbols similar as in table A
Configuration
key
8
9
A
0163
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Style
Style
flange with through holes
Configuration
key
2
Packaging unit
50 Pcs

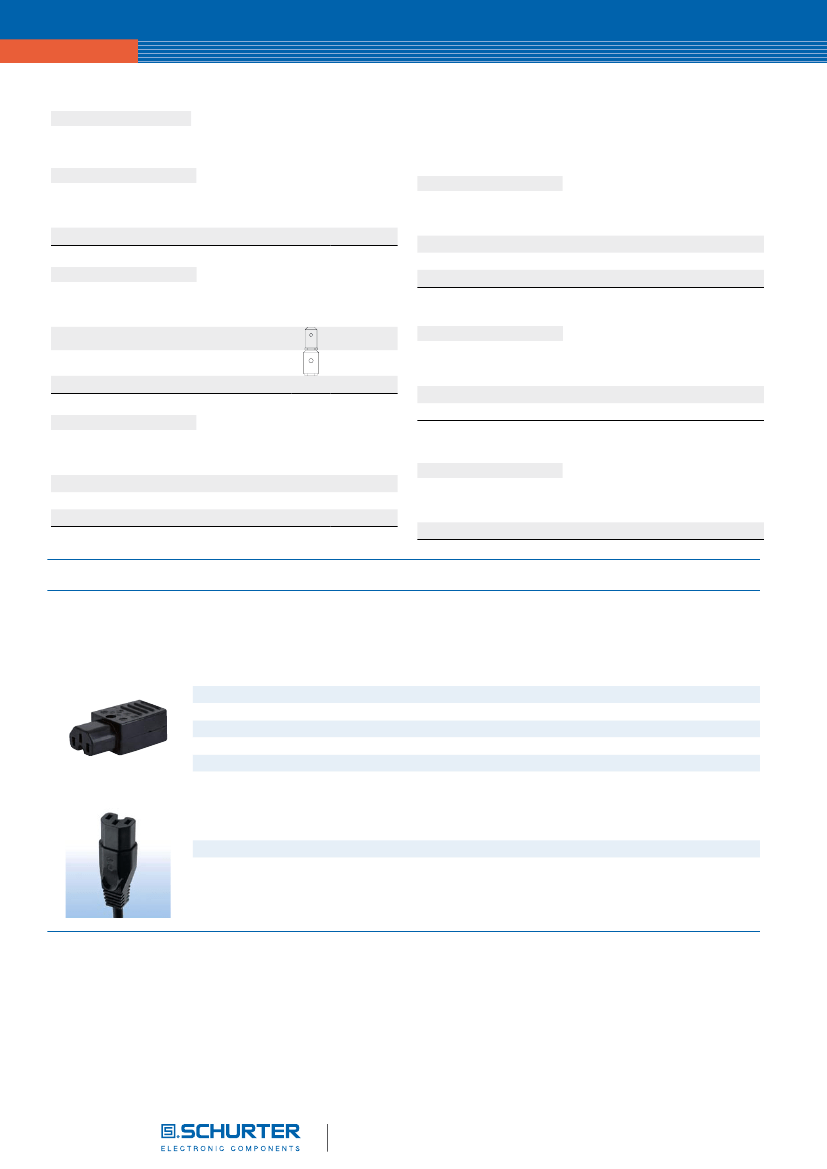

Mating Outlets/Connectors
Category / Description
ConnectorOverview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C15, Rewireable, Straight
Connectorfurther types to0163
0101
0102
0102-G
0112
4781
...
Power CordOverview complete
Power Cord with IEC Connector C15, Straight, 120°C
Power Cord with IEC Connector C15, Angled, 120°C
Power Cordfurther types to0163
3366
3368
