KRL0816D-C-R012-F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> KRL0816D-C-R012-F

KRL0816D-C-R012-F: DescriptionFixed Resistor, Metal Foil, 0.3W, 0.012ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP; CategoryPassive components The resistor; File Size135KB，2 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric Compare View All

KRL0816D-C-R012-F Overview

Fixed Resistor, Metal Foil, 0.3W, 0.012ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP

KRL0816D-C-R012-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SUSUMU
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
structure	Rectangul
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, Embossed, 7 Inch
Rated power dissipation(P)	0.3 W
Rated temperature	120 °C
Guideline	AEC-Q200
resistance	0.012 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	METAL FOIL
Temperature Coefficient	50 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	ONE SURFACE
Tolerance	1%

Preview

Download Datasheet

View All

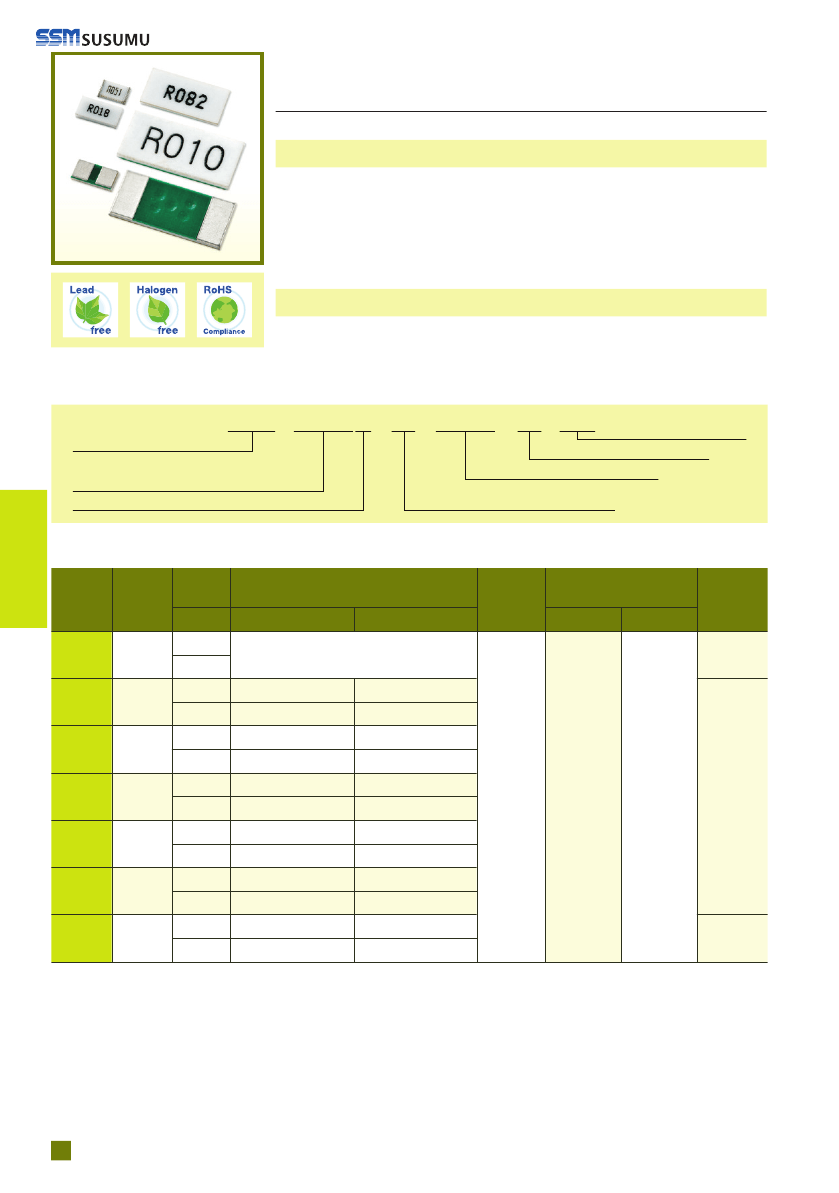

Metal foil low resistance chip resistors

(short-side terminal)

■KRL

series

Features

・

High current sensing short side terminal low resistance chip resistor

・

Two types available: high temperature (operating temperature up to 175°C), low emf

type ( operating temperature up to 155°C).

・

High current handling capability and wide range of power ratings

・

Size: 0510 ~ 50110, power ratings: 0.2W ~ 5W, resistance value range: 5m ~ 1000mΩ

・

Face down construction. Choice between bottom only or wrap around terminal

AEC-Q200 Compliant

Applications

・

Automotive electronics

・

Power source devises, ACDC converters, DCDC converters

・

Motors, inverters, office automation equipment

◆Part

numbering system

KRL 1220E - C - R010 - F - T1

Series code

Size: KRL0510, KRL0816, KRL1220, KRL1632

KRL2550, KRL3264, KRL50110

Current sensing surface mount resistors

Terminal type: D (bottom terminal), E (wrap around terminal)

Packaging quantity:

T1(1,000pcs), T5(5,000pcs)

Resistance tolerance

Nominal resistance value

Temperature characteristics type:

C (high operating temperature ), M (low EMF)

◆Electrical

Specification

Type

Power

ratings

Temperature

coefficient

of resistance

Resistance range(Ω) Resistance tolerance

±1% (F)

50m≦R≦100m

10m≦R≦500m

ー

10m≦R≦500m

ー

10m≦R≦500m

ー

10m≦R≦500m

ー

10m≦R≦1000m

ー

10m≦R≦1000m

ー

5m≦R≦9½(1m step)

ー

5m≦R≦9½(1m step)

ー

5m≦R≦9m(1m step)

ー

5m≦R≦9m(1m step)

ー

5m≦R≦9m

（1m step）

ー

5m≦R≦9m

（1m step）

Resistance

value series

Operating temperature

Packaging

quantity

(ppm/°C)

±50

±2% (G)

KRL series

KRL0510

0.2W

±100

±50

10,000pcs

KRL0816

0.3W

±100

±50

KRL1220

0.5W

±100

±50

KRL1632

0.75W

E-6 / E-12

-55℃ ~ 175℃

-55℃ ~ 155℃

±100

±50

KRL2550

1.5W

±100

±50

KRL3264

±100

±50

KRL50110

±100

We can meet your requirement for resistance value not specified in above table. Please contact our sales office.

We can meet your requirement outside of E-6/E-12 series resistance. Please contact our sales office.

KRL0816D-C-R012-F Related Products

	KRL0816D-C-R012-F	KRL0816D-C-R033-F	KRL0816D-M-R056-F	KRL0816E-M-R047-F	KRL1220E-C-R470-F	KRL1632D-C-R007-G	KRL1632E-M-R006-G
Description	Fixed Resistor, Metal Foil, 0.3W, 0.012ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP	Fixed Resistor, Metal Foil, 0.3W, 0.033ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP	Fixed Resistor, Metal Foil, 0.3W, 0.056ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP	Fixed Resistor, Metal Foil, 0.3W, 0.047ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP	Fixed Resistor, Metal Foil, 0.5W, 0.47ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP	Fixed Resistor, Metal Foil, 0.75W, 0.007ohm, 2% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP	Fixed Resistor, Metal Foil, 0.75W, 0.006ohm, 2% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SUSUMU	SUSUMU	SUSUMU	SUSUMU	SUSUMU	SUSUMU	SUSUMU
package instruction	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rectangul	Rectangul	Rectangul	Rectangul	Rectangul	Rectangul	Rectangul
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	155 °C	155 °C	175 °C	175 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Package length	1.6 mm	1.6 mm	1.6 mm	1.6 mm	2 mm	3.2 mm	3.2 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	0.8 mm	0.8 mm	0.8 mm	0.8 mm	1.25 mm	1.6 mm	1.6 mm
method of packing	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch
Rated power dissipation(P)	0.3 W	0.3 W	0.3 W	0.3 W	0.5 W	0.75 W	0.75 W
Rated temperature	120 °C	120 °C	100 °C	100 °C	120 °C	120 °C	100 °C
Guideline	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
resistance	0.012 Ω	0.033 Ω	0.056 Ω	0.047 Ω	0.47 Ω	0.007 Ω	0.006 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	0603	0603	0603	0603	0805	1206	1206
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	METAL FOIL	METAL FOIL	METAL FOIL	METAL FOIL	METAL FOIL	METAL FOIL	METAL FOIL
Temperature Coefficient	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C	100 ppm/°C	100 ppm/°C
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	WRAPAROUND	WRAPAROUND	ONE SURFACE	WRAPAROUND
Tolerance	1%	1%	1%	1%	1%	2%	2%
