Glass-encapsulated axial lead structure makes strong resistance in high humidity and high temperature environment, and our products
achieve high reliability.
The deviation of Resistance-Temperature characteristics is small.
By applying semiconductor mass production technology, our thermistor achieves miniaturization, excellent mass productivity, and high
cost performance.
The option of lead wire bending is available to easily fix on mounting condition.
Epoxy coating is possible to improve weather resistance and to relieve stress on glass parts.
APPLICATION
Temperature detection of home appliances (refrigerators, air conditioners, etc.)
Temperature detection of automobiles (intake/exhaust temperature, mission oil, etc.)
Temperature detection of industrial equipment (motors, etc.)

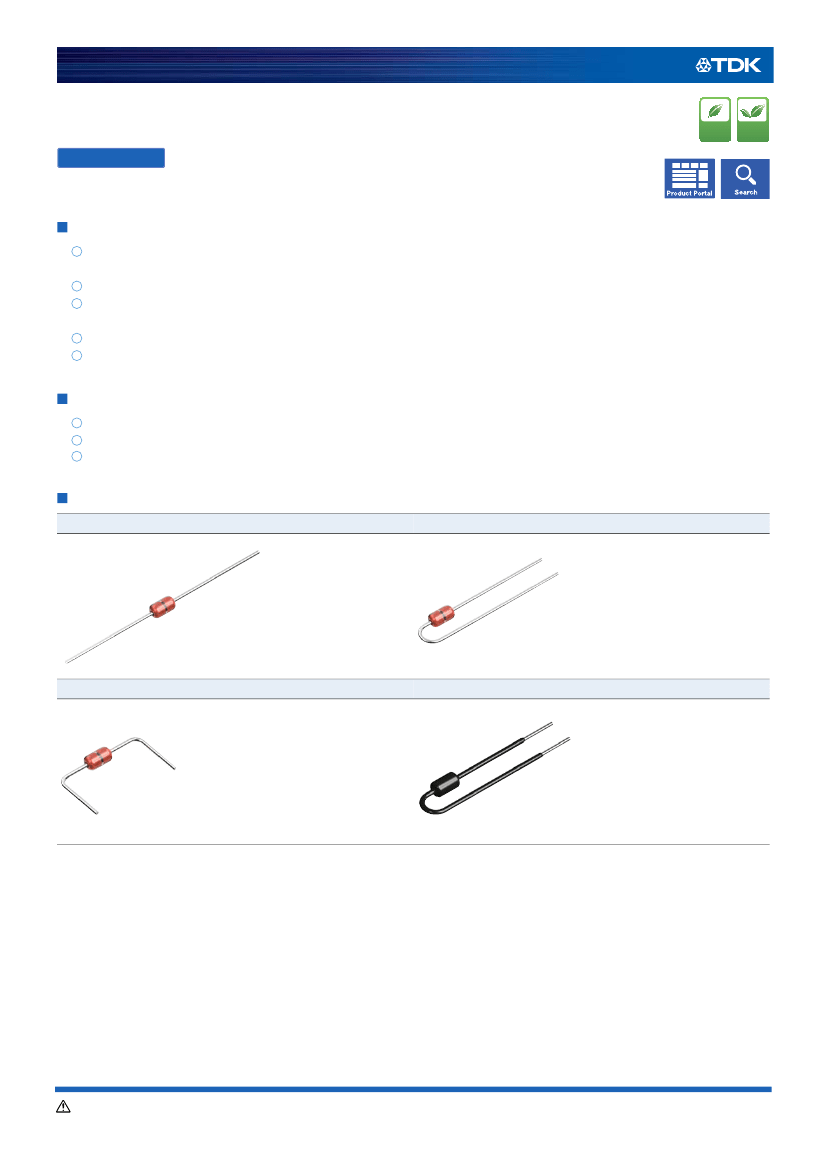

PRODUCT LINEUP
NTCDS series Standard lead
NTCDA series U-bend product
NTCDE series C-bend product
NTCDZ series U-bend + coating product
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/6)
20191223
sensor_ntc-thermistor_element_en.fm
S E N S O R S
Temperature sensor (NTC)
NTC elements
NTCD series
PART NUMBER CONSTRUCTION
NTC
Series
name
NTC
thermistor
D
Structural
classification
○
Lead wire
processing
□□□
B
constant
(K)
○
B constant
tolerance
(%)
F
±1
G
±2
H
±3
J
±5
K
±10
□□□
Nominal
resistance
()
2 significant
digits + power
of 10
○
Resistance
tolerance
(%)
F
±1
G
±2
H
±3
J
±5
K
±10
○
○
○
○
□□□
Internal
code
No.
Standard
temperature Dimensions
(°C)
A
–20
3 3x1.8ø
B
0
4 4x2.0ø
C
25
D
100
Lead wire
Package
surface
clssification
specification
N Nickel
B Bulk
S
Tin
T Taping
Structural classification
D
Glass-encapsulated
axial lead
NTC thermistor
B constant
3A 3000 to 3050
3B 3051 to 3100
3C 3101 to 3150
3D 3151 to 3200
3E 3201 to 3250
3F 3251 to 3300
3G 3301 to 3350
3H 3351 to 3400
3J 3401 to 3450
3K 3451 to 3500
3L
3M
3N
3P
3Q
3R
3S
3T
3U
3V
3501 to 3550
3551 to 3600
3601 to 3650
3651 to 3700
3701 to 3750
3751 to 3800
3801 to 3850
3851 to 3900
3901 to 3950
3951 to 3999
4A
4B
4C
4D
4E
4F
4G
4H
4J
4K
4000 to 4050
4051 to 4100
4101 to 4150
4151 to 4200
4201 to 4250
4251 to 4300
4301 to 4350
4351 to 4400
4401 to 4450
4451 to 4500
4L
4M
4N
4P
4Q
4R
4S
4T
4U
4V
4501 to 4550
4551 to 4600
4601 to 4650
4651 to 4700
4701 to 4750
4751 to 4800
4801 to 4850
4851 to 4900
4901 to 4950
4951 to 4999
Lead wire processing
S
A
E
Z
Standard lead
U-bend
C-bend
U-bend + coating
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/6)
20191223
sensor_ntc-thermistor_element_en.fm
S E N S O R S
Temperature sensor (NTC)
NTC elements
NTCD series

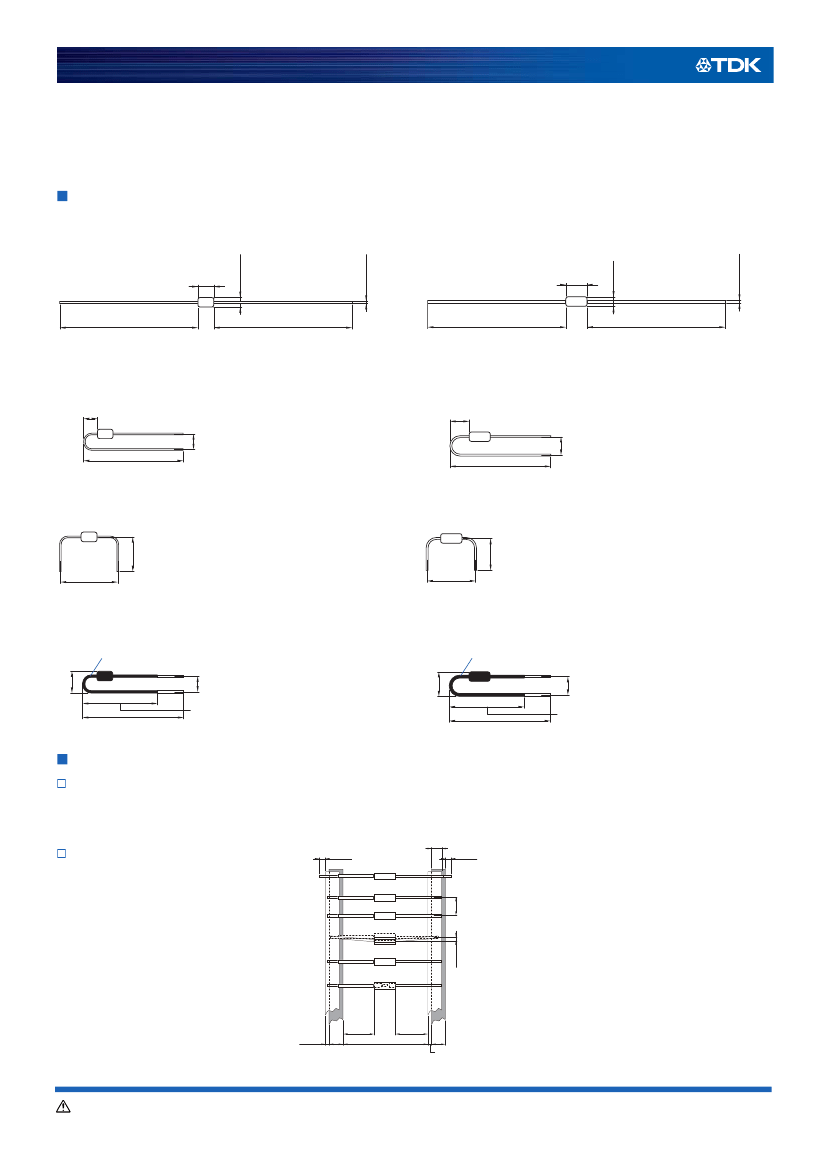

SHAPE & DIMENSIONS
Standard lead / NTCDS series
○Dimensional
code 3
ø0.45max.
ø1.8max.
○Dimensional
code 4
4+0, –0.4
ø0.55max.
28.2±1.0
ø2max.
3+0,
–0.7
28.2±1.0
28.2±1.0
28.2±1.0
Dimensions in mm
Dimensions in mm
U-bend product / NTCDE series
○Dimensional
code 3
2.5±0.5
○Dimensional
code 4
3.5±0.5
(
3
)
16±1 (Applicable dimensions: 13 to 19)
Dimensions in mm
(
3.5
)
16±1
(Applicable
dimensions: 13 to 19)
Dimensions in mm
C-bend product/NTCDE series
○Dimensional
code 3
6.5±1.0
○Dimensional
code 4
6.0±1.0
10.8±1.0
Dimensions in mm
9.1±1.0
Dimensions in mm
U-bend + coating product / NTCDZ series
○Dimensional
code 3
Epoxy
ø
4.7max.
○Dimensional
code 4
Epoxy
ø
5.5max.
11.5±1.5
(Applicable
dimensions:
8
to 15)
16±1
(Applicable
dimensions: 13 to 19)
Dimensions in mm
16±1
(Applicable
dimensions: 13 to 19)
(
3.5
)
11.5±1.5
(Applicable
dimensions:
8
to 15)
(
3
)
Dimensions in mm
PACKAGING STYLE
Bulk package
Package classification code: B
Minimum number of packages: 200 pieces
3.2min.
Taping packaging
Package classification code: T
Minimum number of packages: 2000 pieces
0.5max.
0.5max.
1.2max.
L1
0.8max.
6±.1
52+2/-1
L2
6±.1
0.8max.
・The difference between L
1
and L
2
is set to less than 1 mm.
・Cumulative pitch tolerance is
±2
at 20 pitches.
・NTCDA,
NTCDE, NTCDZ
series
cannot perform taping packing.
Dimensions in mm
5±0.1
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/6)
20191223
sensor_ntc-thermistor_element_en.fm
S E N S O R S
Temperature sensor (NTC)
NTC elements
NTCD series
RT CHARACTERISTICS
Temperature
(°C)
–40
–35
–30
–25
–20
–15
–10
–5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
240
245
250
NTCD□
3LG202
HC□NB
44.89
33.71
25.55
19.53
15.05
11.69
9.154
7.219
5.734
4.586
3.692
2.991
2.439
2.000
1.650
1.368
1.141
0.9566
0.8059
0.6822
0.5802
0.4957
0.4254
0.3665
0.3171
0.2754
0.2401
0.2101
0.1845
0.1625
0.1436
0.1273
0.1132
0.1009
0.09019
0.08083
0.07261
0.06539
0.05901
0.05336
0.04835
0.04389
0.03991
0.03635
0.03315
0.03028
0.02770
0.02536
0.02325
0.02133
0.01958
0.01800
0.01655
0.01522
0.01401
0.01290
0.01188
0.01094
0.01007
NTCD□
3HG222
HC□NB
42.92
32.68
25.09
19.42
15.14
11.89
9.409
7.495
6.010
4.850
3.939
3.218
2.645
2.186
1.817
1.518
1.275
1.076
0.9122
0.7772
0.6652
0.5717
0.4935
0.4277
0.3722
0.3250
0.2849
0.2506
0.2212
0.1958
0.1739
0.1549
0.1384
0.1240
0.1113
0.1002
0.09043
0.08178
0.07411
0.06729
0.06121
0.05577
0.05090
0.04652
0.04258
0.03902
0.03580
0.03288
0.03022
0.02780
0.02559
0.02357
0.02171
0.02001
0.01845
0.01701
0.01569
0.01446
0.01333
NTCD□
3KG492
HC□NB
104.7
78.84
59.96
46.03
35.65
27.83
21.90
17.37
13.89
11.15
9.026
7.351
6.022
4.961
4.110
3.422
2.864
2.409
2.035
1.727
1.472
1.260
1.082
0.9336
0.8083
0.7023
0.6123
0.5356
0.4700
0.4138
0.3653
0.3235
0.2873
0.2558
0.2284
0.2045
0.1835
0.1651
0.1488
0.1345
0.1218
0.1106
0.1005
0.09163
0.08367
0.07654
0.07016
0.06442
0.05925
0.05459
0.05038
0.04657
0.04311
0.03997
0.03711
0.03451
0.03214
0.02997
0.02798
NTCD□
4AG502
HC□NB
212.3
148.9
105.9
76.16
55.46
40.83
30.38
22.84
17.34
13.29
10.27
8.016
6.302
5.000
3.997
3.219
2.612
2.134
1.756
1.453
1.210
1.015
0.8551
0.7246
0.6172
0.5282
0.4543
0.3925
0.3406
0.2967
0.2595
0.2278
0.2007
0.1774
0.1575
0.1400
0.1250
0.1119
0.1003
0.09027
0.08141
0.07359
0.06666
0.06052
0.05506
0.05018
0.04583
0.04192
0.03842
0.03526
0.03241
0.02984
0.02751
0.02540
0.02349
0.02173
0.02014
0.01869
0.01736
NTCD□
3UG942
HC□NB
346.8
247.3
178.5
130.3
96.13
71.65
53.92
40.96
31.39
24.27
18.92
14.87
11.77
9.395
7.551
6.112
4.980
4.085
3.371
2.799
2.337
1.963
1.657
1.406
1.199
1.027
0.8834
0.7634
0.6625
0.5771
0.5046
0.4429
0.3900
0.3446
0.3054
0.2715
0.2421
0.2164
0.1940
0.1744
0.1571
0.1419
0.1284
0.1165
0.1058
0.09638
0.08793
0.08037
0.07359
0.0675
0.06200
0.05705
0.05257
0.04851
0.04482
0.04147
0.03842
0.03564
0.03310
NTCD□
3HG103
HC□NB
193.1
146.7
112.5
87.05
67.93
53.43
42.35
33.81
27.18
21.99
17.90
14.66
12.08
10.00
8.324
6.964
5.854
4.944
4.194
3.572
3.056
2.624
2.262
1.957
1.699
1.480
1.294
1.135
0.9982
0.8808
0.7795
0.6918
0.6157
0.5494
0.4916
0.4409
0.3965
0.3574
0.3230
0.2925
0.2655
0.2415
0.2202
0.2012
0.1842
0.1690
0.1553
0.1430
0.1320
0.1220
0.1130
0.1048
0.09744
0.09072
0.08461
0.07904
0.07396
0.06932
0.06508
NTCD□
3KG203
HC□NB
355.8
275.9
215.3
169
133.5
105.9
84.54
67.8
54.65
44.27
36.04
29.47
24.22
20.00
16.59
13.82
11.57
9.724
8.209
6.958
5.922
5.06
4.34
3.736
3.228
2.799
2.435
2.125
1.861
1.634
1.439
1.272
1.126
1.001
0.891
0.7954
0.7118
0.6385
0.574
0.5172
0.467
0.4225
0.383
0.3478
0.3165
0.2884
0.2634
0.2409
0.2206
0.2024
0.186
0.1711
0.1577
0.1455
0.1344
0.1244
0.1152
0.1068
0.09917
NTCD□
4AG303
HC□NB
1009
728.2
531.9
392.7
292.8
220.3
167.2
128.0
98.69
76.69
60.03
47.32
37.55
30.00
24.12
19.52
15.88
13.01
10.71
8.865
7.378
6.172
5.188
4.382
3.719
3.170
2.713
2.332
2.012
1.743
1.515
1.322
1.157
1.017
0.8957
0.7916
0.7016
0.6235
0.5557
0.4965
0.4447
0.3993
0.3594
0.3241
0.2930
0.2654
0.2408
0.2190
0.1995
0.1821
0.1664
0.1524
0.1398
0.1284
0.1181
0.1088
0.1004
0.09272
0.08576
NTCD□
4AG493
HC□NB
1655
1194
872.3
644.0
480.2
361.3
274.2
209.9
161.8
125.8
98.44
77.59
61.58
49.20
39.56
32.00
26.05
21.33
17.56
14.54
12.10
10.12
8.508
7.187
6.099
5.198
4.449
3.824
3.300
2.858
2.485
2.168
1.898
1.667
1.469
1.298
1.150
1.023
0.9113
0.8142
0.7293
0.6548
0.5893
0.5315
0.4805
0.4352
0.3949
0.3591
0.3271
0.2986
0.2729
0.2499
0.2292
0.2105
0.1937
0.1784
0.1646
0.1520
0.1406
NTCD□
4AG503
HC□NB
1682
1214
886.5
654.5
488.0
367.2
278.7
213.3
164.5
127.8
100.0
78.86
62.59
50.00
40.20
32.53
26.47
21.68
17.85
14.77
12.30
10.29
8.647
7.304
6.198
5.283
4.522
3.887
3.354
2.905
2.526
2.204
1.929
1.694
1.493
1.319
1.169
1.039
0.9262
0.8275
0.7412
0.6655
0.5989
0.5402
0.4883
0.4423
0.4014
0.3650
0.3325
0.3034
0.2774
0.2540
0.2329
0.2140
0.1968
0.1813
0.1673
0.1545
0.1429
NTCD□
3SG104
HC□NB
2874
2107
1561
1168
881.4
671.3
515.6
399.2
311.5
244.9
193.8
154.5
123.9
100.0
81.2
66.31
54.45
44.95
37.30
31.10
26.06
21.94
18.55
15.75
13.43
11.50
9.880
8.522
7.378
6.409
5.587
4.886
4.286
3.772
3.329
2.946
2.615
2.327
2.077
1.857
1.665
1.497
1.348
1.217
1.101
0.9979
0.9063
0.8247
0.7518
0.6865
0.6280
0.5754
0.5280
0.4852
0.4466
0.4115
0.3798
0.3509
0.3246
Detailed RT tables (in 2°C increments) can be searched on the web page. Or contact us.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
京公网安备 11010802033920号
EEWORLD
