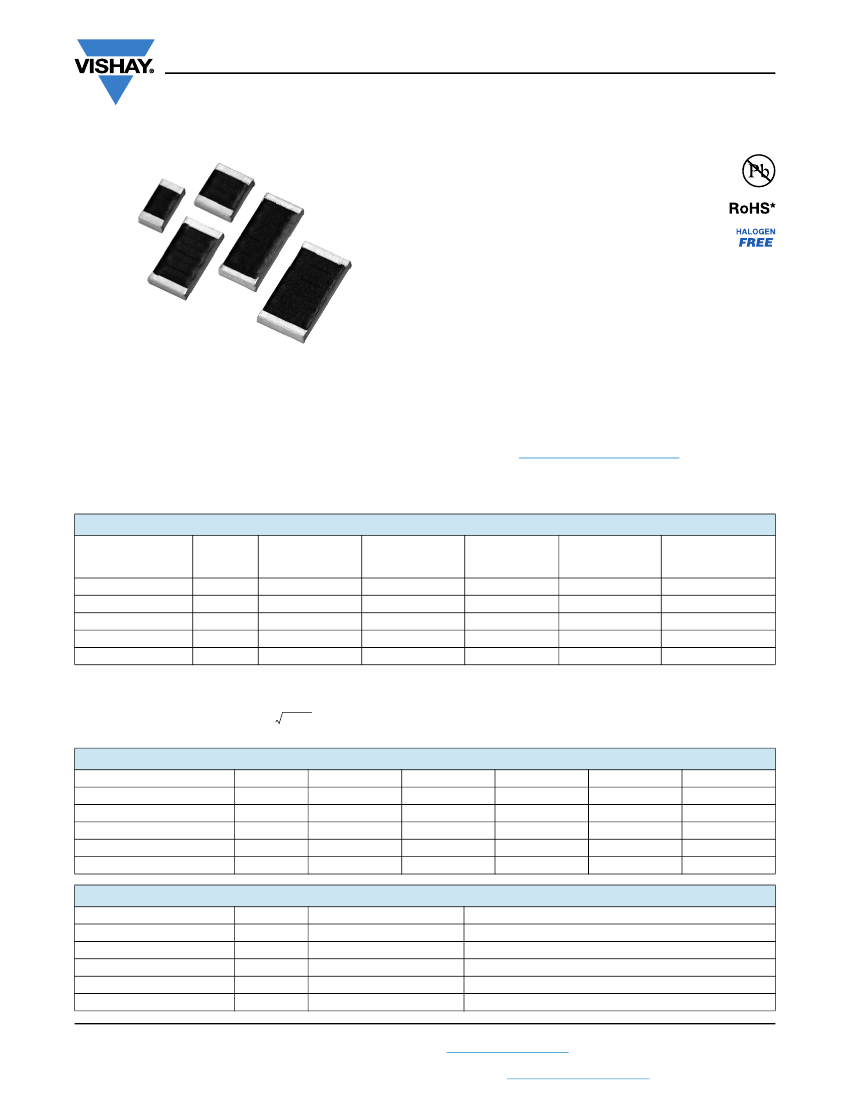

CRMV
www.vishay.com
Vishay Techno
Thick Film Chip Resistors, Medium Voltage
FEATURES
• Voltages up to 1415 V
Available
• Automatic placement capability
• Termination style: 3-sided wraparound
Available
termination or single termination flip chip
available
• Tape and reel packaging available
• Suitable for solderable, epoxy bondable, or wire bondable
applications
• Internationally standardized sizes, custom sizes available
• Termination material: solder-coated nickel barrier or
solder coated non-magnetic terminations standard; gold,
palladium silver, platinum gold, platinum silver or platinum
palladium gold terminations available
• Multiple styles, termination materials and configurations,
allow wide design flexibility
• Epoxy bondable or wire bondable non-magnetic
terminations available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL MODEL
CRMV1206
CRMV1210
CRMV2010
CRMV2510
CRMV2512
CASE
SIZE
1206
1210
2010
2510
2512
POWER RATING
P
70 °C
W
0.30
0.35
0.50
0.80
1.0
MAX. WORKING
VOLTAGE
(2)
V
1000
1250
2000
2500
3000
RESISTANCE
RANGE
(1)
150 to 15M
300 to 20M
500 to 40M
1K to 60M
1K to 75M
TOLERANCE
±%
0.5, 1, 2, 5, 10, 20
0.5, 1, 2, 5, 10, 20
0.5, 1, 2, 5, 10, 20
0.5, 1, 2, 5, 10, 20
0.5, 1, 2, 5, 10, 20
TEMPERATURE
COEFFICIENT
(3)
± ppm/°C
100
100
100
100
100
Notes
• For non-standard sizes, lower values or higher power rating requirement, contact factory
(1)
Resistance values calibrated at 10 V . Calibration at other voltages available upon request
DC
(2)
Continuous working voltage shall be
P
x
R
or Maximum Working Voltage, whichever is less
(3)
Reference only: Not for all values specified. Consult factory for your size and value
TECHNICAL SPECIFICATIONS
PARAMETER
Rated dissipation at 70 °C
Limiting element voltage
Insulation resistance
Category temperature range
Weight/1000 (typical)
UNIT
W
V
°C
g
CRMV1206
0.30
1000
10
11
-55 to +155
12.2
CRMV1210
0.35
1250
10
11
-55 to +155
19.6
CRMV2010
0.50
2000
10
11
-55 to +155
32.2
CRMV2510
0.80
2500
10
11
-55 to +155
39.8
CRMV2512
1.0
3000
10
11
-55 to +155
49.7
VOLTAGE COEFFICIENT OF RESISTANCE
MODEL
CRMV1206
CRMV1210
CRMV2010
CRMV2510
CRMV2512
Revision: 29-Nov-2018
VALUE ()
150 to 15M
300 to 20M
500 to 40M
1K to 60M
1K to 75M
VCR (ppm/V)
Consult factory
Consult factory
Consult factory
Consult factory
Consult factory
FURTHER INSTRUCTIONS
Consult factory
Consult factory
Consult factory
Consult factory
Consult factory
Document Number: 68037
1
For technical questions, contact:
te1resistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CRMV
www.vishay.com
Vishay Techno
GLOBAL PART NUMBER INFORMATION
Global Part Numbering: CRMV1210AF1K00FLET (preferred part number format)
C
GLOBAL
MODEL
CRMV
R
SIZE
1206
1210
2010
2510
2512
M
V
1
2
1
0
A
F
1
K
0
TCR
0
F
L
E
T
PACKAGING
B
= bulk
F
=T/R
(full reel)
1
=T/R
(1000 pcs)
5
=T/R
(500 pcs)
T
=T/R
(250 pcs min.)
W
= waffle tray
TERMINAL
STYLE
A
= 3-sided
B
= top only
TERMINAL
MATERIAL
F
= nickel barrier
G
= non-magnetic
A
= palladium
silver
B
= palladium
gold
C
= gold
D
= platinum silver
E
= platinum
palladium gold
RESISTANCE
VALUE
R
=
K
= k
M
= M
110R
= 110
49K9
= 49.9 k
10M0
= 10 M
TOLERANCE
D
= ± 0.5 %
F
=±1%
G
=±2%
J
=±5%
K
= ± 10 %
M
= ± 20 %
SOLDER
TERMINATION
E
= Sn100
N
= no solder
T
= Sn90 / Pb10
K
= 100 ppm
L
= 150 ppm
Note
• For additional information on packaging, refer to the Surface Mount Resistor Packaging document (www.vishay.com/doc?31543)
DIMENSIONS
in inches (millimeters)
TERMINATION STYLE A
(3-SIDED WRAPAROUND)
TERMINATION STYLE B
(TOP CONDUCTOR ONLY)
MODEL
CRMV1206
W
L
T
0.025 (0.635)
Max.
T
0.025 (0.635)
Max.
L
W
LENGTH
(L)
0.125 ± 0.006
(3.18 ± 0.15)
0.125 ± 0.006
(3.18 ± 0.15)
0.200 ± 0.006
(5.08 ± 0.15)
0.250 ± 0.006
(6.35 ± 0.15)
0.250 ± 0.006
(6.35 ± 0.15)
WIDTH
(W)
0.063 ± 0.006
(1.60 ± 0.15)
0.100 ± 0.006
(2.54 ± 0.15)
0.100 ± 0.006
(2.54 ± 0.15)
0.100 ± 0.006
(2.54 ± 0.15)
0.126 ± 0.006
(3.20 ± 0.15)
THICKNESS
(T)
0.025 ± 0.004
(0.64 ± 0.10)
0.025 ± 0.004
(0.64 ± 0.10)
0.025 ± 0.004
(0.64 ± 0.10)
0.025 ± 0.004
(0.64 ± 0.10)
0.025 ± 0.004
(0.64 ± 0.10)
CRMV1210
CRMV2010
CRMV2510
CRMV2512
TYPE
Solderable
Solderable
Epoxy bondable /
solderable
Wire bondable /
epoxy bondable
Epoxy bondable
TERMINATION
MATERIAL
Nickel barrier
Non-magnetic
Platinum palladium gold
Gold
Palladium silver
Platinum gold
Platinum silver
TERMINATION
STYLE
3-sided (wraparound)
Top only (flip chip)
3-sided (wraparound)
Top only (flip chip)
Top only (flip chip)
Top only (flip chip)
TERMINATION STYLE /
MATERIAL CODE
AF
BF
AG
BG
BE
BC
BA
SOLDER TERMINATION
CODE
E or T
E or T
N
N
Top only (flip chip)
BB
BD
N
Revision: 29-Nov-2018
Document Number: 68037
2
For technical questions, contact:
te1resistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CRMV
www.vishay.com
Vishay Techno
MATERIAL SPECIFICATIONS
Resistive element
Encapsulation
Substrate
Ruthenium oxide
Epoxy
96 % alumina
Solder-coated nickel barrier or solder
coated non-magnetic terminations
standard. Gold, platinum silver, platinum
palladium gold terminations available.
Pure tin or tin / lead solder alloys standard.
DERATING CURVE
Rated Power in %
120
100
80
60
40
20
0
- 55
- 25
0
25
50
75 100 125 155 175
70
Ambient Temperature in °C
Termination
Solder finish
PERFORMANCE
TEST
Life
Short time overload
Thermal shock
Low temperature operation
Resistance to bonding exposure
Moisture resistance
Solder mounting integrity
Solderability
CONDITIONS OF TEST
MIL-STD-202, method 108
1000 h rated power at +70 °C
MIL-PRF-55342, paragraph 4.8.6
MIL-STD-202, method 107
-55 °C to +150 °C
MIL-PRF-55342, paragraph 4.8.5
MIL-STD-202, methods 210
MIL-PRF-55342, paragraph 4.8.9
MIL-PRF-55342, paragraph 4.8.13
2 kg for 30 s
MIL-STD-202, method 208
TEST RESULTS (TYPICAL TEST LOTS)
± 0.50 %
± 0.02 %
± 0.50 %
± 0.02 %
± 0.05 %
± 0.06 %
No evidence of mechanical damage
95 % coverage
Revision: 29-Nov-2018
