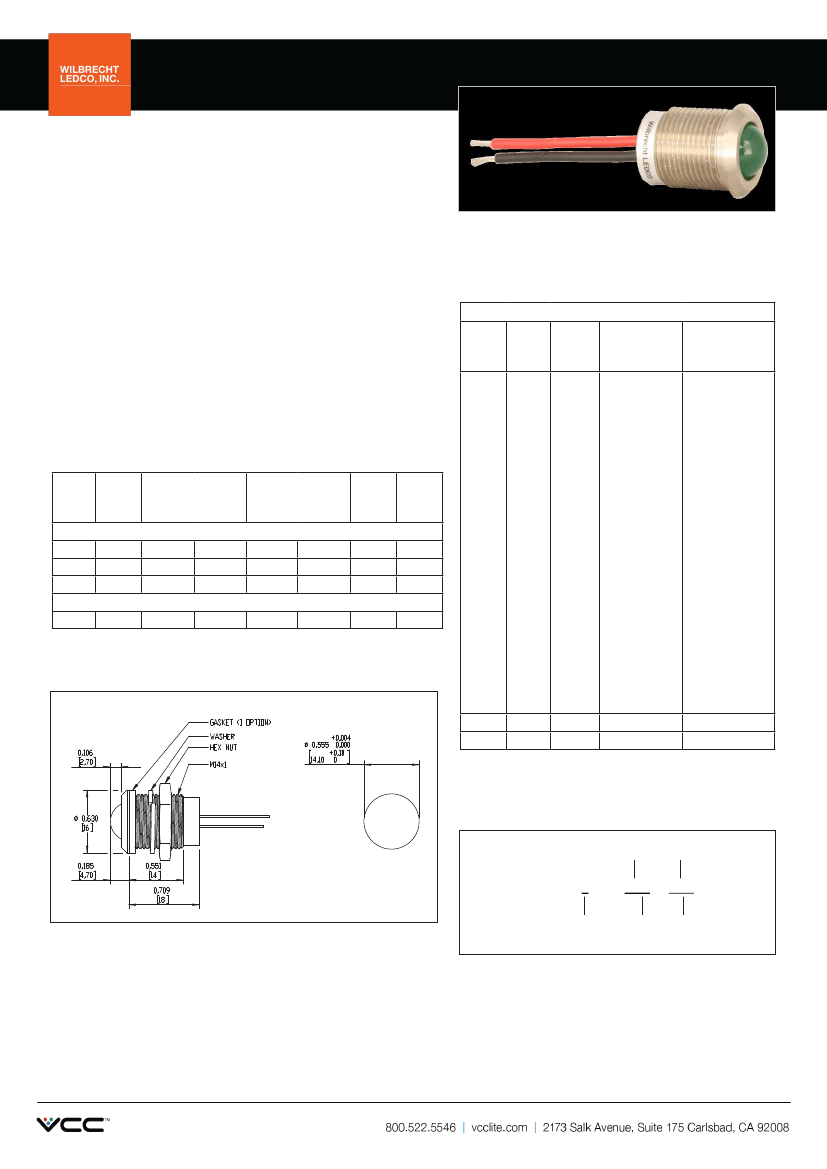

CL Series 10mm

Panel Mount LED

Special Features

•

Rugged watertight construction – sealed to IP67

Front mounts with supplied hex nut, spacer and gasket

Optional internal resistor for 5V-60VDC and 5V-240VAC

Mil Spec MIL-W22759/33 wire and connector options

Internally potted-suitable for high vibration applications

10mm Panel Mount LED Assemblies

Specifications

• Mounting hole: .555” +.004/-.000 (14.10 +0.10/-0 mm)

• Termination: 24AWG UL1061 6.0” (152.4mm) red (anode) and

black (cathode) leads stripped .250” (6.35 mm) standard or

LED pins

• Housing: Nickel-plated brass housing M14 size

• Mounting torque: 20 ± 2 in-lb ( 2.26 ± 0.23 N-mm )

• Maximum panel thickness: .394”(10mm) without

gasket, .354” (9mm) with gasket

•

LED Operating Temp: -40 to +85˚C

Resistor Chart

OPERATING SPECIFICATIONS

Resistor

Value

Code

0000

9900

9928

9901

9902

Voltage

Current

(mA)

10 or 20

3.5

16500

66400

8250

7500

Contact

VCC

Contact

VCC

4870

4530

1100

953

511

357

150

2610

2320

2210

1910

1000

715

Resistor Value

(Ohms)

Green,Yellow

Red, Bicolor LED

None

332

121

Resistor Value

(Ohms)

Blue,

White LED

Not Available

120VAC

240VAC

Electrical and Optical Characteristics (TA = 25°C)

LED

Part #

Color

Luminous

Intensity (mcd)

Typ. @ I

(mA)

Typ. @ I

(mA)

Viewing

Angle

Peak

Wave-

length

(nm)

9903

9904

9905

9906

9907

9922

9908

9909

ULTRA BRIGHT – DAYLIGHT READABLE

2006

2007

2008

BLUE

2004

Blue

400.0

3.3

20°

460

Red

Yellow

Green

420.0

500.0

100.0

1.85

2.0

2.1

30°

655

590

574

9910

9911

9912

Package Dimensions - M14

9913

9914

9915

0120

0240

Note: Bi-Color not available in AC voltages.

How to Order

LED

Resistor

Specifications Value Code

xxxx

See

LED

Chart

xxxx-I

See

Resistor

Chart

All dimensions are in inches (mm)

Bipins=0(IP67)

Leads=1(IP67)
