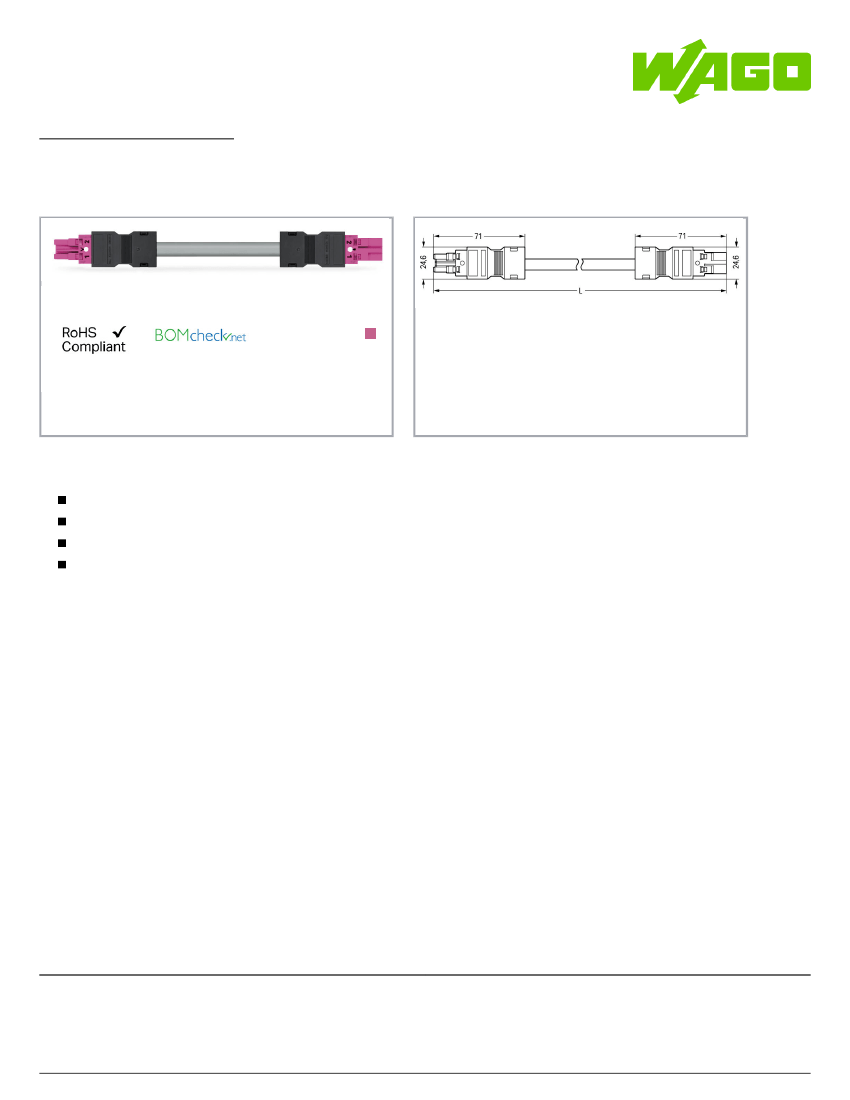

Data sheet | Item number: 771-8992/006-607
pre-assembled interconnecting cable; Eca; Socket/plug; 2-pole; Cod. B;
Control cable 2 x 1.5 mm²; 6 m; 1,50 mm²; pink
www.wago.com/771-8992_006-607
Color:
Item description
Protected against mismating and maintenance-free
Push-in CAGE CLAMP® spring pressure connection technology allows solid conductors to be simply pushed into a unit
Two-wire connection per pole for loops or bridges
Components can be clearly printed on and color-coded to meet custom requirements
Note:
Cables with a different fire class can be found in the eShop.
Note on mismating protection:
All WINSTA
®
components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
Safety information 1:
Application note for the U.S. market (USR): Some versions may also be used for current interruption in accordance with the UL certificate in select
applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 1/4
Data sheet | Item number: 771-8992/006-607
www.wago.com/771-8992_006-607
Data
Electrical data
Note on Contact Resistance
approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact
transition plug/socket
Ratings per IEC/EN 60664-1
Ratings per
Nominal voltage (III/3)
Rated surge voltage (III/3)
Rated current
Legend (ratings)
IEC/EN 60664-1
250
V
4
kV
16
A
(III / 3) ≙ Overvoltage category III / Pollution degree 3
Approvals per UL 1977
Rated voltage UL 1977
Rated current UL 1977
600
V
23
A
Connection data
Pole No.
Total number of potentials
Conductor preparation
Sheathed cable diameter
Wire cross-section
Connection type
2
2
tip-bonded
6,8 … 8,6 mm
1.5
mm²
Socket - Plug
Geometrical Data
Pin spacing
Total length
10 mm / 0.394 inch
6
m
Mechanical data
Coding
Mating force of a plug-in connection
Retention force of a plug-in connection
Unmating force of a plug-in connection
Number of mating cycles
B
approx. 20 … 70 N (depending on pole number)
when locked: > 80N
when unlocked: approx. 20 … 70 N (depending on pole number)
200 (without resistive load) 100 (with resistive load I
N
= 25 A), tested
(4 mm²)
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 2/4
Data sheet | Item number: 771-8992/006-607
www.wago.com/771-8992_006-607
(4 mm²)
Connection type
Type of pre-assembled cable
Cable type
Marking
Protection type
Note on protection type
Potential marking
Socket - Plug
Interconnecting cable
Control line 2 x 1.5
12
IP20
Only when mated (these compact connectors are not designed for
use in open, easily accessible areas).
12
Plug connection
Mismating protection
Locking of plug-in connection
Locking lever
Yes
locking lever
retrofittable
Material Data
Color
Insulation material
Fire class per EN 50575
Contact material
Connector color
Printing color of mating face
Strain relief color
Printing color of strain relief
Sheathed cable color
Printing color of sheathed cable
Sheath material
Weight
pink
Polyamide 66 (PA 66)
E
ca
Copper or copper alloy (surface-treated)
pink
black
black
white
gray
black
PVC
413.4
g
Environmental Requirements
Processing temperature
Continuous operating temperature
Note on continuous operating temperature
-5 … +40 °C
-35 … +85 °C
PVC cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Commercial data
Packaging type
not packed
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 3/4
Data sheet | Item number: 771-8992/006-607
www.wago.com/771-8992_006-607
Packaging type
Country of origin
GTIN
Customs tariff number
not packed
DE
4055143502788
85444290900
Counterpart
Compatible products
Marking accessories
Item no.: 210-334
Marking strips; as a DIN A4 sheet; Strip width 5 mm; Strip length 182 mm; plain; Self-adhesive; white
www.wago.com/210-334
Downloads
Documentation
Bid Text
771-8992/006-607
GAEB X81 - Datei
771-8992/006-607
doc - Datei
Feb 19, 2019
xml
3.0 kB
doc
25.6 kB
Download
Jun 2, 2015
Download
Handling Instructions
Product family
<i>WINSTA</i>® MIDI special
Show all products from the family
