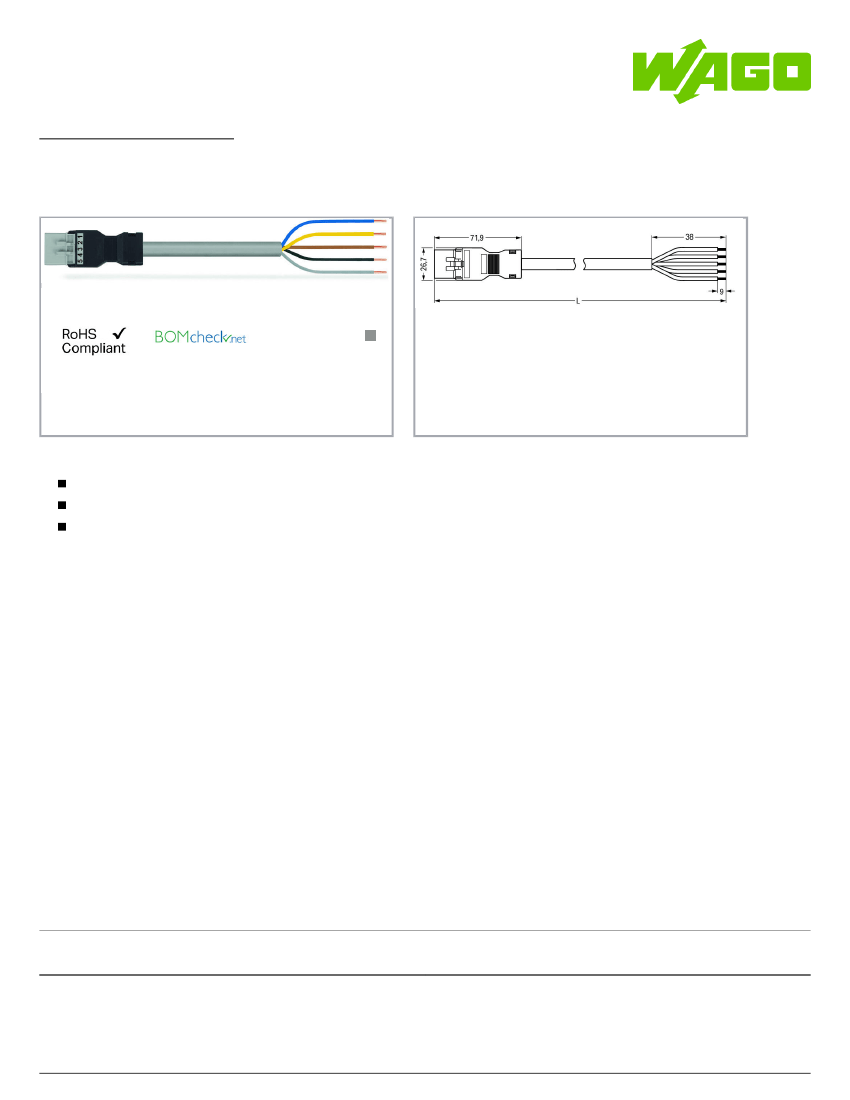

Data sheet | Item number: 891-8995/205-103
pre-assembled connecting cable; Eca; Plug/open-ended; 5-pole; Cod. B; 1
m; 1,00 mm²; gray
www.wago.com/891-8995_205-103
Color:
Item description
Protected against mismating and maintenance-free
Compact design with 4.4 mm pole spacing
Components can be clearly printed on and color-coded to meet custom requirements
Note:
Cables with a different fire class can be found in the eShop.
Note on mismating protection:
All WINSTA
®
components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
Safety information 1:
Application note for the U.S. market (USR): Some versions may also be used for current interruption in accordance with the UL certificate in select
applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
Data
Electrical data
Note on Contact Resistance
approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact
transition plug/socket
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
30.05.2020 Page 1/4
Data sheet | Item number: 891-8995/205-103
www.wago.com/891-8995_205-103
Ratings per IEC/EN 60664-1
Ratings per
Nominal voltage (III/3)
Rated surge voltage (III/3)
Rated current
Legend (ratings)
IEC/EN 60664-1
400
V
6
kV
10
A
(III / 3) ≙ Overvoltage category III / Pollution degree 3
Approvals per UL 1977
Rated voltage UL 1977
Rated current UL 1977
600
V
12
A
Connection data
Strip length
Pole No.
Total number of potentials
Conductor preparation
Sheathed cable diameter
Wire cross-section
Strip length (outer insulation)
Connection type
9 mm / 0.35 inch
5
5
tip-bonded
7,8 … 9,3 mm
1
mm²
38
mm
Plug - Free end
Geometrical Data
Pin spacing
Total length
4,4 mm / 0.173 inch
1
m
Mechanical data
Coding
Mating force of a plug-in connection
Retention force of a plug-in connection
Unmating force of a plug-in connection
Number of mating cycles
200, without resistive load
100, with resistive load I
N
= 16 A, tested (1.5 mm²/16 AWG)
B
approx. 20 … 70 N (depending on pole number)
when locked: > 80N
when unlocked: approx. 20 … 70 N (depending on pole number)
Connection type
Plug - free end
Type of pre-assembled cable
Connecting cable
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
30.05.2020 Page 2/4
Data sheet | Item number: 891-8995/205-103
www.wago.com/891-8995_205-103
Type of pre-assembled cable
Cable type
Marking
Protection type
Note on protection type
Potential marking
Connecting cable
Control line 5 x 1
12345
IP20
IP40 when mated
12345
Plug connection
Mismating protection
Locking of plug-in connection
Locking lever
Yes
locking lever
retrofittable
Material Data
Color
Insulation material
Fire class per EN 50575
Contact material
Connector color
Printing color of mating face
Strain relief color
Printing color of strain relief
Sheathed cable color
Printing color of sheathed cable
Sheath material
Weight
gray
Polyamide 66 (PA 66)
E
ca
Copper or copper alloy (surface-treated)
gray
black
black
white
gray
black
PVC
123.9
g
Environmental Requirements
Processing temperature
Continuous operating temperature
Note on continuous operating temperature
-5 … +40 °C
-35 … +85 °C
PVC cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Commercial data
Packaging type
Country of origin
GTIN
not packed
PL
4055143517492
Customs tariff number
85444290900
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
30.05.2020 Page 3/4
Data sheet | Item number: 891-8995/205-103
www.wago.com/891-8995_205-103
Customs tariff number
85444290900
Counterpart
Item no.890-245
Socket; 5-pole; Cod. B; 1,50 mm²; gray
Item no.890-745
Snap-in socket; 5-pole; Cod. B; 1,50 mm²; gray
Item no.890-845/011-000
Socket for PCBs; angled; 5-pole; Cod. B
www.wago.com/890-245
www.wago.com/890-745
www.wago.com/890-845/011-000
Item no.890-845
Socket for PCBs; straight; 5-pole; Cod. B
www.wago.com/890-845
Downloads
Documentation
Bid Text
891-8995/205-103
doc - Datei
891-8995/205-103
GAEB X81 - Datei
Mar 12, 2015
doc
25.6 kB
xml
3.1 kB
Download
Feb 19, 2019
Download
Handling Instructions
Product family
<i>WINSTA</i>® MINI special
