LFVCXO020676REEL: DescriptionHCMOS Output Clock Oscillator, 2.048MHz Nom; CategoryPassive components oscillator; File Size865KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFVCXO020676REEL Overview

HCMOS Output Clock Oscillator, 2.048MHz Nom

LFVCXO020676REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	unknow
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	25%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	2.048 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.5mm x 5.0mm x 1.9mm
longest rise time	5 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

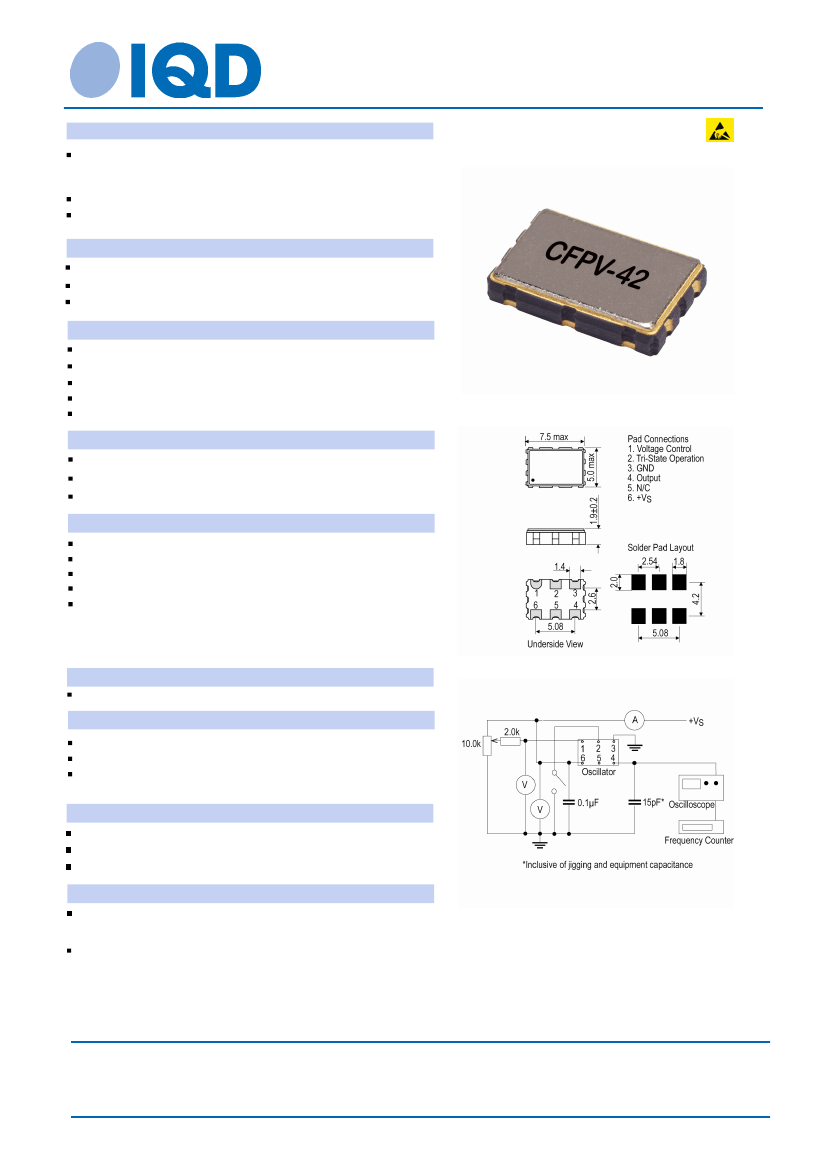

VCXO Specification

Part No. + Packaging:

LFVCXO020676Reel

Description

Standard 7 x 5mm Voltage Controlled Crystal Oscillator

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPV-42

Model Issue number

7

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

2.0480MHz

±25.00ppm

-10.00 to 70.00°C

3.3V ±0.3V

Supply Voltage

Current Draw

15.00mA

Start-Up Time: 10ms max

Linearity: Positive ±10% max

Modulation Bandwidth: 20kHz min

Frequency Adjustment

Outline (mm)

Pulling

Control Voltage

Input Impedence

Output Details

±50ppm min

1.65V ±1.5V

***See Technical Notes***

HCMOS

Output Compatability

Drive Capability

15pF max

5.0ns max

Rise and Fall Time

40/60%

Duty Cycle

Logic ‘1’ (>70%VS) to pad 2 enables oscillator output

Logic ‘0’ (<30%VS) to pad 2 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection pad 2 enables oscillator output

Noise Parameters

Test Circuit

Phase Jitter: 20MHz max 1ps rms (12kHz - 1MHz)

Environmental Parameters

Storage Temperature Range: -40 to 85°C

Shock: MIL-STD-202F, Method 213B (1000G, 0.5ms, 1/2 sine)

Vibration: Sinewave, frequency range 10-55Hz, amplitude

1.52mm, 2hrs in X, Y, Z axes (total 6 hrs)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com
