WA02Y3902FAL

Description
Array/Network Resistor, Isolated, 0.0313W, 12.5V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0302, CHIP, LEAD FREE
CategoryPassive components    The resistor
File Size204KB,7 Pages
ManufacturerWalsin Technology Corporation
Environmental Compliance
Download Datasheet Parametric Compare View All

WA02Y3902FAL Overview

Array/Network Resistor, Isolated, 0.0313W, 12.5V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0302, CHIP, LEAD FREE

WA02Y3902FAL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerWalsin Technology Corporation
package instruction, 0302
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresLASER TRIMMABLE, RATED AC VOLTAGE(V): 12.5
The first element resistor39000 Ω
JESD-609 codee3
Manufacturer's serial numberWA02Y
Installation featuresSURFACE MOUNT
Network TypeISOLATED
Number of components1
Number of functions2
Number of terminals4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, PAPER, 7 INCH

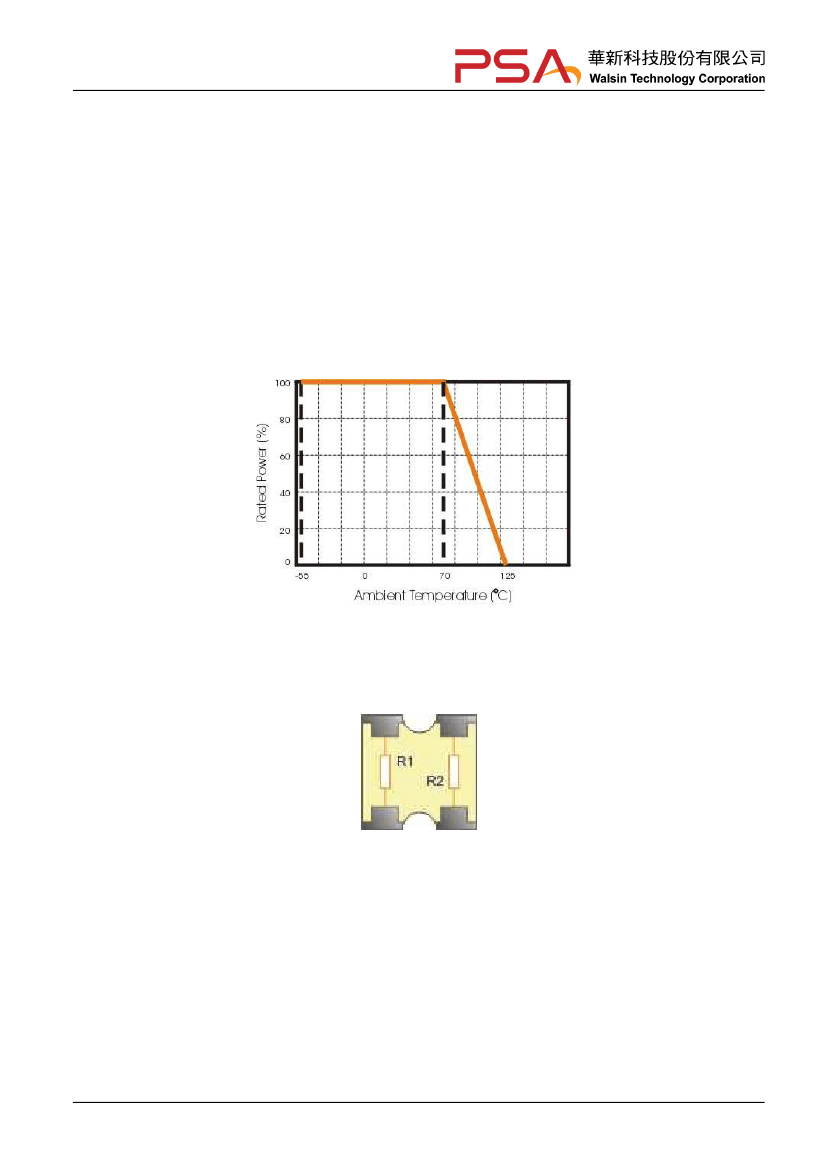

Rated power dissipation(P)0.0313 W
Rated temperature70 °C
Resistor typeARRAY/NETWORK RESISTOR
size code0302
surface mountYES
Temperature Coefficient300 ppm/°C
Terminal surfaceTin (Sn)
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage12.5 V

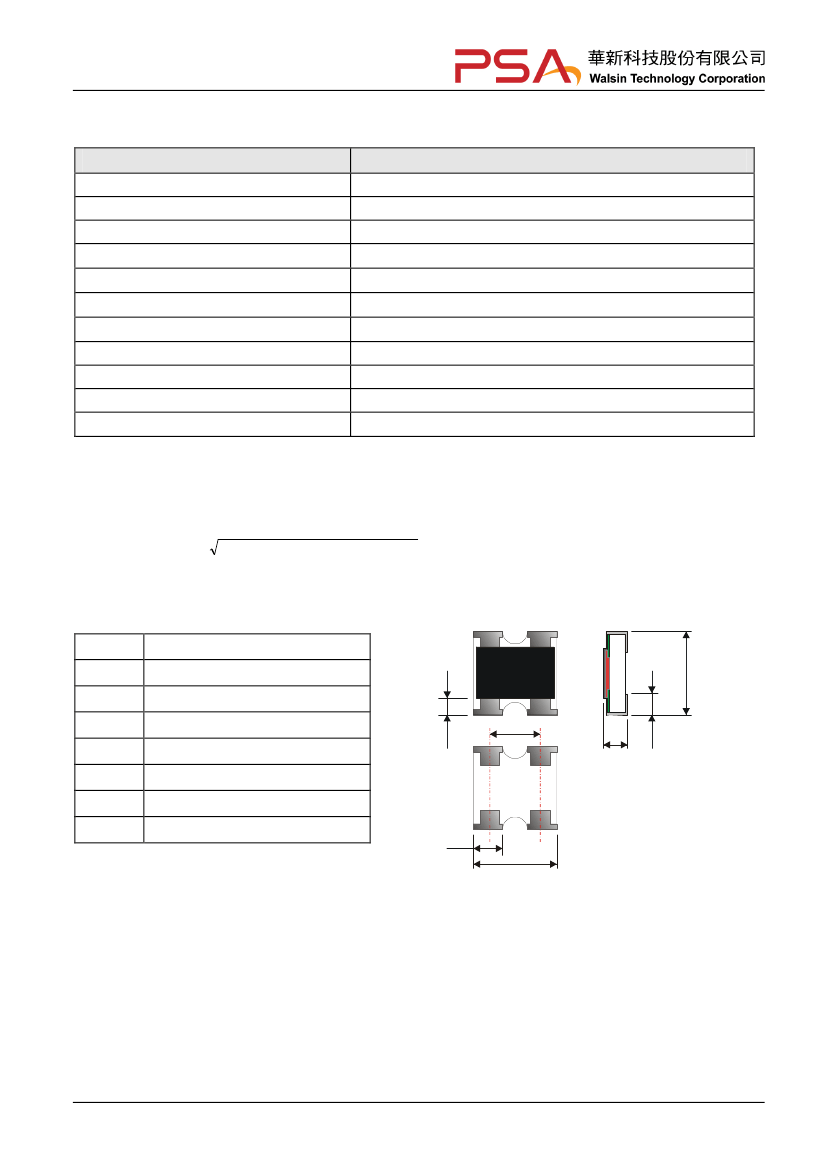

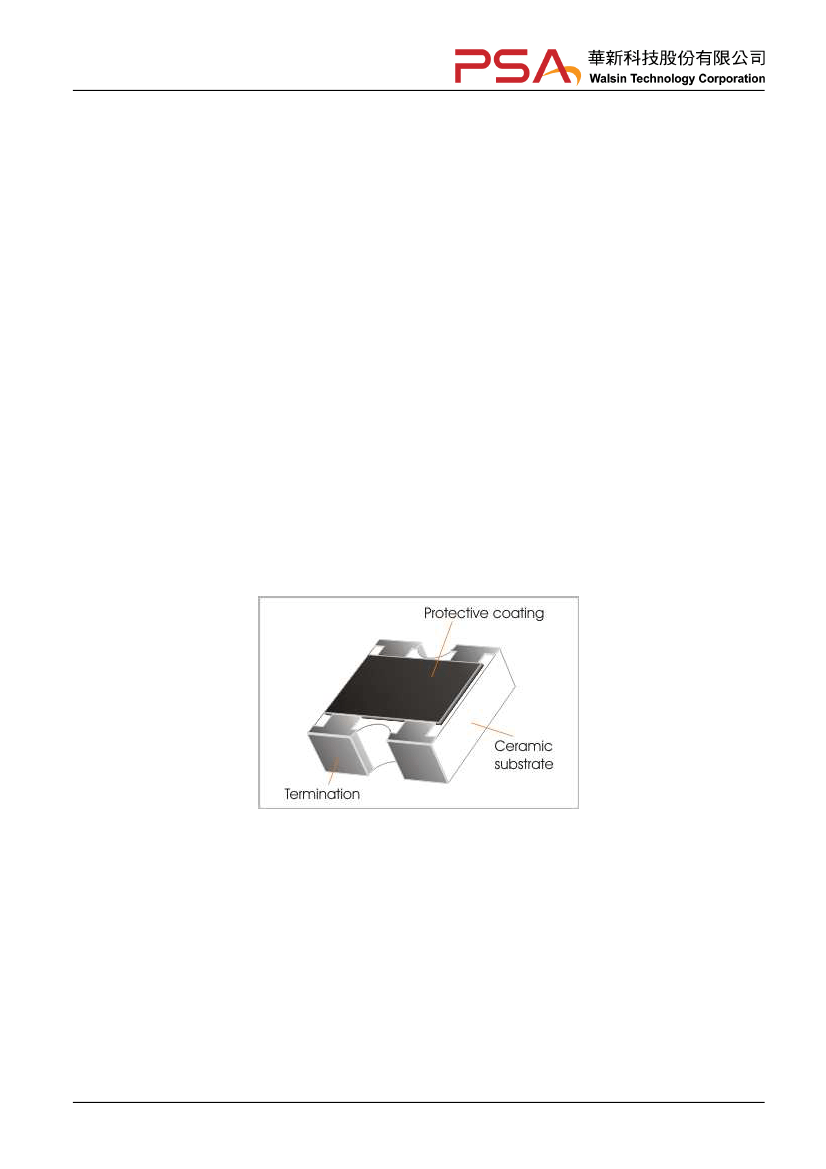

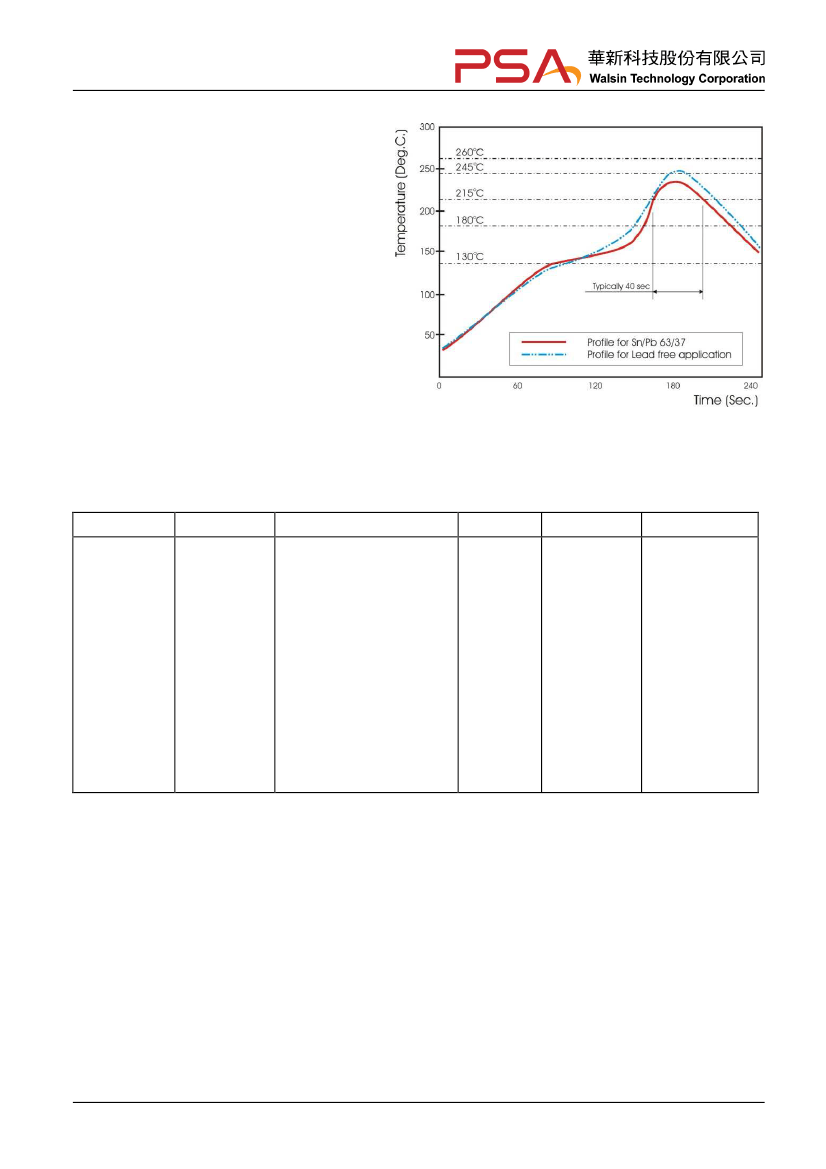

Approval sheet
WA02Y
±
5%,
±
1% Convex Type
General purpose chip resistors array
Size 0201x2
*Contents in this sheet are subject to change without prior notice.
Page 1 of 7
ASC_WA02Y_V05
Jan.2012

WA02Y3902FAL Related Products

WA02Y3902FAL WA02Y1373FAL WA02Y5102FTL WA02Y2210FTL WA02Y6983FTL
Description Array/Network Resistor, Isolated, 0.0313W, 12.5V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0302, CHIP, LEAD FREE Array/Network Resistor, Isolated, 0.0313W, 12.5V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0302, CHIP, LEAD FREE Array/Network Resistor, Isolated, 0.0313W, 12.5V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0203, CHIP, LEAD FREE Array/Network Resistor, Isolated, 0.0313W, 12.5V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0203, CHIP, LEAD FREE Array/Network Resistor, Isolated, 0.0313W, 12.5V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0203, CHIP, LEAD FREE
Is it Rohs certified? conform to conform to conform to conform to conform to
package instruction , 0302 , 0302 CHIP, LEAD FREE CHIP, LEAD FREE CHIP, LEAD FREE
Reach Compliance Code compli compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Other features LASER TRIMMABLE, RATED AC VOLTAGE(V): 12.5 LASER TRIMMABLE, RATED AC VOLTAGE(V): 12.5 LASER TRIMMABLE, RATED AC VOLTAGE(V): 12.5 LASER TRIMMABLE, RATED AC VOLTAGE(V): 12.5 LASER TRIMMABLE, RATED AC VOLTAGE(V): 12.5
The first element resistor 39000 Ω 137000 Ω 51000 Ω 221 Ω 698000 Ω
JESD-609 code e3 e3 e3 e3 e3
Manufacturer's serial number WA02Y WA02Y WA02Y WA02Y WA02Y
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Network Type ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Number of components 1 1 1 1 1
Number of functions 2 2 2 2 2
Number of terminals 4 4 4 4 4
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C
Package shape RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE
method of packing TR, PAPER, 7 INCH TR, PAPER, 7 INCH TR, PAPER, 7 INCH TR, PAPER, 7 INCH TR, PAPER, 7 INCH
Rated power dissipation(P) 0.0313 W 0.0313 W 0.0313 W 0.0313 W 0.0313 W
Rated temperature 70 °C 70 °C 70 °C 70 °C 70 °C
Resistor type ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR
size code 0302 0302 0203 0203 0203
surface mount YES YES YES YES YES
Temperature Coefficient 300 ppm/°C 300 ppm/°C 300 ppm/°C 300 ppm/°C 300 ppm/°C
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn)
Terminal shape WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND
Tolerance 1% 1% 1% 1% 1%
Operating Voltage 12.5 V 12.5 V 12.5 V 12.5 V 12.5 V
