0620-313H500-AE471 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 0620-313H500-AE471

0620-313H500-AE471: DescriptionRES,TAPPED,CERMET,470 OHMS,10% +/-TOL,6129 CASE; CategoryPassive components The resistor; File Size192KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

0620-313H500-AE471 Overview

RES,TAPPED,CERMET,470 OHMS,10% +/-TOL,6129 CASE

0620-313H500-AE471 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	compli
ECCN code	EAR99
structure	Sealed
Manufacturer's serial number	0620
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	13.5 mm
Package length	15.5 mm
Package form	PCB Mou
Package width	7.3 mm
Rated power dissipation(P)	1 W
resistance	470 Ω
Resistor type	POTENTIOMETER
rotation angle	285 deg
series	0620
size code	6129
technology	CERMET
Tolerance	10%

Preview

Download Datasheet

View All

Features

■

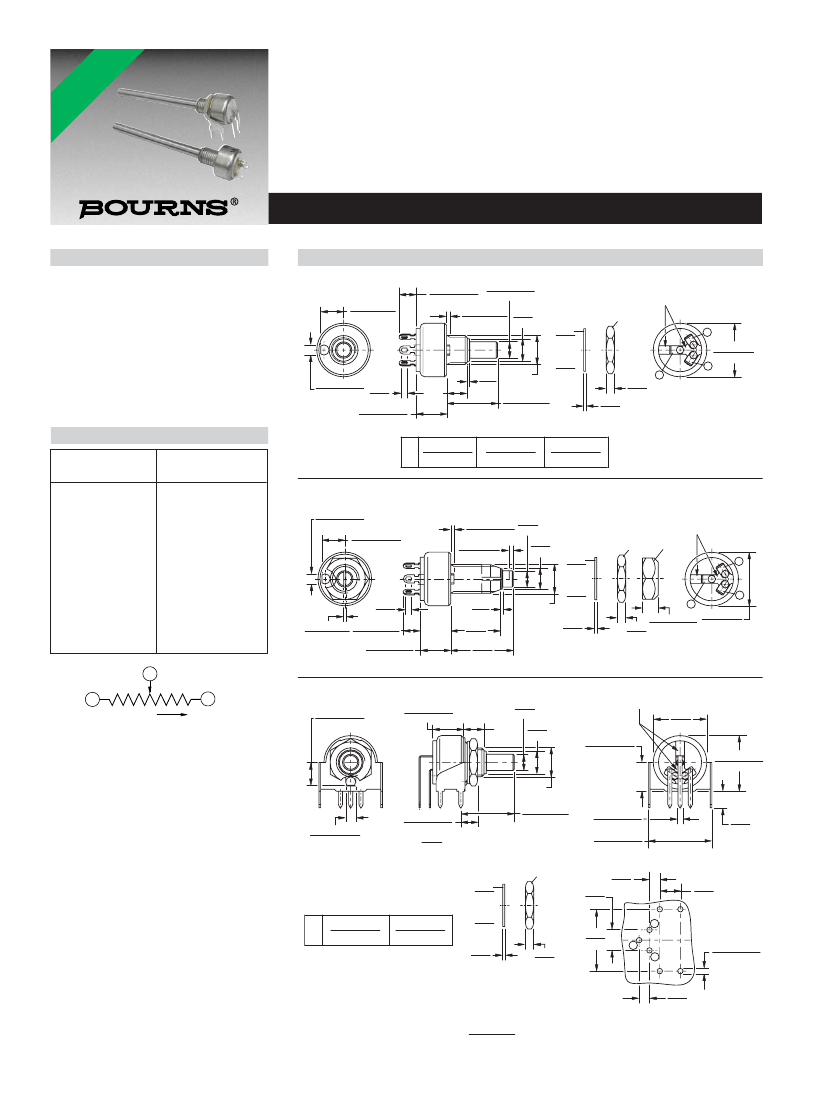

Sealed construction (housing sealing according to DIN IEC 68 part 2 - 17 Qc2)

Additional models and versions available; i.e., locking bushing for locking the shaft

Cermet resistive element

0620 - Rotary Potentiometer

Characteristics

Mechanical Angle.............285 ° +0 °/-5 °

Starting Torque ................0.5 to 1.5 Ncm

End Stop Strength .............40 Ncm max.

Shaft Push-Pull Force.............50 N max.

Resistance Range

.......................100 ohms to 1 megohm

Resistance Curve ..........................Linear

Power Rating ....................................1 W

Temperature Range ....-55 °C to +125 °C

Rotational Life ...................25,000 cycles

Standard Resistance Table

Product Dimensions

0620-013

5.5 +0/-0.2

(.217 +0/-.008)

4.0 +0/-0.03

4.3 +0/-0.3

DIA.

(.157 +0/-.001)

(.169 +0/-.012)

0.8 +0/-0.1

5.5

DIA.

(.031 +0/-.004) (.217)

SCREW NUTS

AND WASHER

SUPPLIED LOOSE

SW10

7.2

(.283)

DIA.

10.3

(.406)

0.5 M7x0.75

DIA.

(.020)

50 ± 0.5

(1.969 ± .020)

0.5

(.020)

2.0

(.079)

13.0 - 0.05

(.512 - .002)

SEALED WITH

POTTING COMPOUND

2.5 +0/-0.1

(.098 +0/-.004)

1.5

(.059)

7.3 +0.5/-0

(.287 +.020/-0)

Resistance

(Ohms)

100

220

470

1,000

2,200

4,700

10,000

22,000

47,000

100,000

220,000

470,000

1,000,000

Resistance

Code

101

221

471

102

222

472

103

223

473

104

224

474

105

5.0 ± 0.05

(.197 ± .002)

8.0 ± 0.05

(.315 ± .002)

12.0 ± 0.05

(.472 ± .002)

0620-057

2.5 +0/-0.1

(.098 +0/-.004)

5.5 +0/-0.2

(.217 +0/-.008)

4.0

0.8 +0/-0.1

DIA.

(.157)

(.031 +0/-.004)

5.0

1.0 +0.2/-0

DIA.

(.197)

(.039 +.008/-0)

7.2

(.283)

DIA.

0.3

(.012)

12.0

(.472)

15.0

(.591)

M7x0.75

10.3

(.406)

DIA.

0.5

(.020)

SEALED WITH

POTTING COMPOUND

SW10

3.8 +0.2/-0 13.0 ± 0.05

2.0 (.150 +.008/-0) (.512 ± .002)

(.079)

1.5

(.059)

4.3 +0.3/-0

0.5 +0.2/-0

(.020 +.008-0) (.169 +.012/-0)

7.3 +0.5/-0

(.287 +.020/-0)

SCREW NUTS AND WASHER

SUPPLIED LOOSE

CCW

WIPER

CLOCKWISE

0620-313

5.5 +0/-0.2

(.217 +0/-.008)

7.3 +0.5/-0

(.287 +.020/-0)

4.0

DIA.

(.157)

5.5

DIA.

(.217)

SEALED WITH

POTTING COMPOUND

13.0

(.512)

7.0 +0/-0.2

(.276 +0/-.008)

13.5 +0/-0.2

(.531 +0/-.008)

M7x0.75

50 ± 0.5

(1.969 ± .020)

1.1 +0/-0.1

(.043 +0/-.004)

15.5 +0/-0.2

(.610 +0/-.008)

2.5 +0/-0.1

(.098 +0/-.004)

4.0 +0.3/-0

(.157 +.012/-0)

4.5

0620-340

(.177)

4.0

(.157)

SW10

7.2

(.283)

DIA.

Recommended PCB Layout

5.0

(.197)

2.5

(.098)

5.0

(.197)

15.0

(.591)

1.3 +0.1/-0

(.051 +.004/-0)

8.0 ± 0.05

(.315 ± .002)

12.0 ± 0.05

(.472 ± .002)

10.3

(.406)

DIA.

0.5

(.020)

2.0

(.079)

SCREW NUTS AND WASHER

SUPPLIED LOOSE

2.5

(.098)

DIMENSIONS ARE:

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

(INCHES)

Recommended Resources

Water tower automatic water supply circuit

Transistor stabilized current power supply circuit 2

Exhaust fan automatic control circuit (4)

Automatic AC voltage regulator circuit

DZW75-48/50(50II) start control circuit

Low voltage lamp timing flashing circuit

Why can't MC52i read text messages?: Using mc52i, a UDP data packet is sent to the server every half an hour, and the server also sends text messages to mc52i. However, using the AT+CMGR command, the text messages are often not read. Is ...; 123456ZJ Embedded System

Can a 430 with only one timer output PWM and also interrupt regularly to do other work?: Can a 430 with only one timer output PWM and also have a timer interrupt to do other tasks? For example, the system outputs a 30K PWM waveform and also has a 0.5 second timer interrupt to perform othe...; helloxieyu Microcontroller MCU

Anyone who has done GRPS data transmission please come in! ! ! ! ! ! !: This is my first time to do GPRS data transmission, I use Huawei's GTM900B. I hope you can give me an example of AT command to establish connection and transmit data. Email: amarantine33520@163.com Th...; zhanp324 Embedded System

EEWORLD University ---- Introduction to SYS BIOS (4)——Software Interrupt_2: Introduction to SYS BIOS (4) - Software Interrupt_2 : https://training.eeworld.com.cn/course/355...; zhangjianee Embedded System

Embedded Project Cooperation (Beijing): I hope to be in Beijing, and have experience and proficiency in the following. We can cooperate or outsource. It is required to select the appropriate development board and devices for the following a...; yanxinghua Embedded System

Powering up the MICROSTICK II: Microstick II is the lowest cost development tool from Microchip that supports 3.3V 16-bit and 32-bit PIC microcontrollers and 28-pin SPDIP package 16-bit dsPIC digital signal controllers (DSC). The d...; suoma Microchip MCU
