SPECIFICATIONS
Coupling:
Shell Material:
Insert Material:
Contact Material:
Termination:
Cable Outer Diameter:
IP Rating:
Mating cycle:
Temperature Range:
Insulation Resistance:
Threaded Coupling
Zinc alloy w/ black nickel plating
PPS max temperature 260C, fire resistance V-0
Brass w/ gold plating
Solder
5-8mm
IP67
>1000
-40C ~ +85C
2000
A
B
C
C
D
D
E
E
Series
CWP
Waterproof
Connector
F
Type
ST-1210
Type=ST-1210
Cable Mount
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Gender
X
M=Male
F=Female
MC=Male w/ cap
FC=Female w/ cap
Contacts
X
2,3,4,5,6,7,9
F
Date
10/05/06
10/05/06
10/05/06 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
CWP-ST-1210-X-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

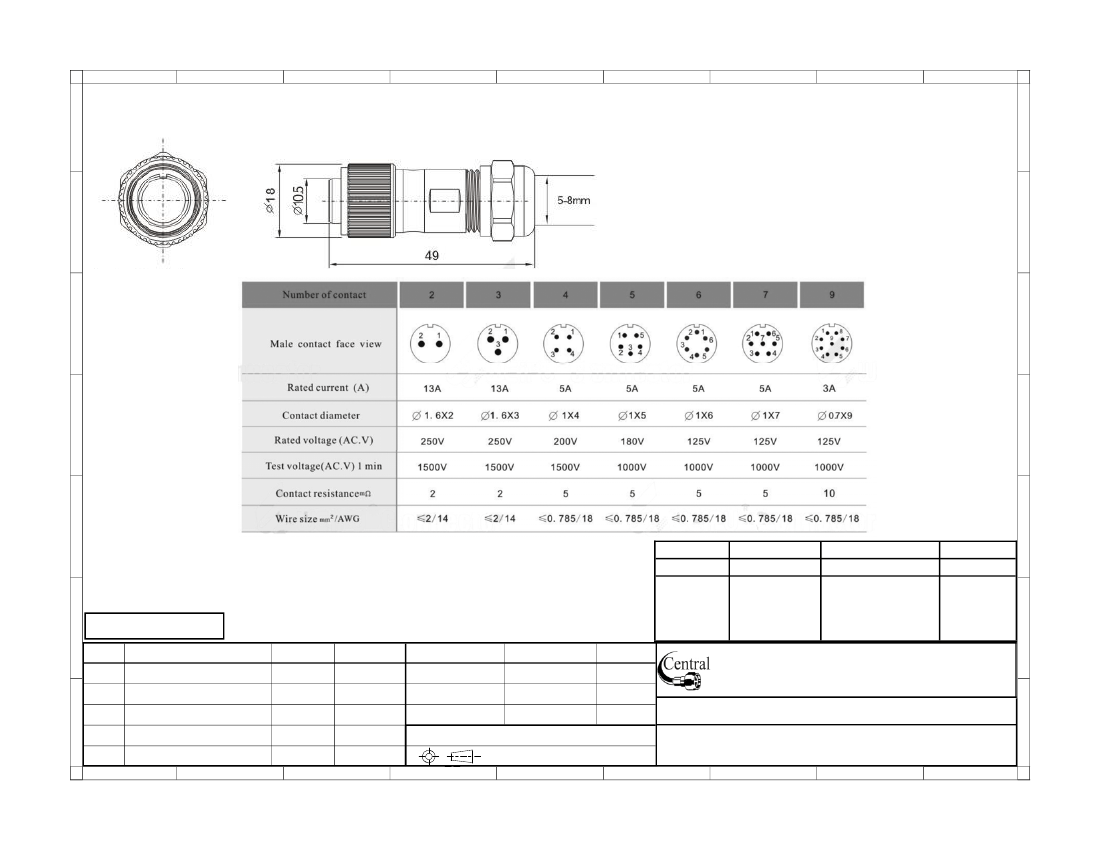

Description: Circular Threaded Waterproof Connector, Cable Mount
G
