2652-3-14-1: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2652-3-14-1 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug

2652-3-14-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.2 inch
subject depth	0.551 inch
body length	0.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
insulator material	POLYPHENYLENE OXIDE
Manufacturer's serial number	2652
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED RIB(S)
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	14
Evacuation force-minimum value	.973 N

Preview

Download Datasheet

View All

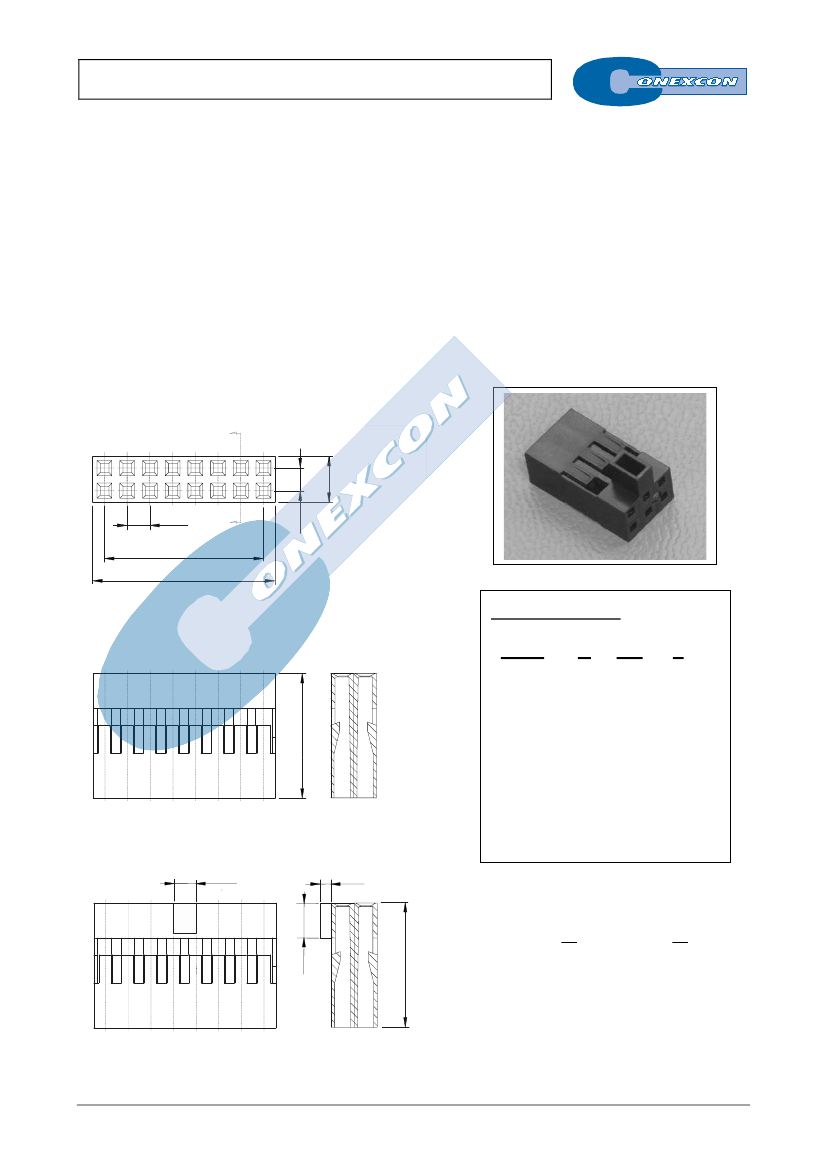

DUAL ROW CRIMP CONNECTOR HOUSING

2652 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 4 through 40 circuits

Mates with pin header 2.54 mm pitch,

Accept 0.64 square pin

Stackable row by row and end to end

Use crimp terminal 2653 and 2663 series



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical features



Insulator: PPO UL 94 V-1



Operating temperature: -40ºC to +105ºC



RoHS compliant



Dimension Information



Contact retention force to the housing: > 1.5 Kgf

Insertion force to header: < 0.50 Kgf/pin

Withdrawal force from header: < 0.10 Kgf/pin

Durability: 25 cycles

G

2.54

.100

A

B

G

2.54

.100

5.08

.200

Ordering Information:

WITHOUT POLARIZING RIB

2652 -

1

P- XX-

2

3

1

1. Connector Series

14.0

.551

2. (P) Polarizing Options



P =

2.

With polarizing rib



P =

3.

Without polarizing rib

3. (XX) Number of circuits

SEC. G-G



Available in 2 through 40 circuits

WITH POLARIZING RIB

3.50

.138

1.50

.060

DIMENSIONS

A

=

2.54



3.80

.145



XX



2

−

1







B

=

2.54





XX







2



14.0

.551

(XX) = Number of circuits

SEC. G-G

E-XX
