5759-13061: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5759-13061 Overview

Board Connector, 6 Contact(s), 2 Row(s), Right Angle, 0.118 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

5759-13061 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.29 inch
subject depth	0.626 inch
body length	0.5 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	5759
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6228 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

MICRO POWER RIGHT ANGLE HEADER SMT

5759 SERIES.

3.00mm(0.118”). For High Current / High Density

Features



Available in 2 through 24 circuits

Insulator Material: Nylon 6T UL 94V-0, Colour: Black

Contact Material: Brass

Mates with 5740 series housing



With metal board lock

Different plating options are available

Current Rating: 5 A maximum

For other options consult the Sales Office

Ordering and Dimensional Information

Circuit Size

Part Number

5759 –

T021

5759 –

T041

5759 –

T061

5759 –

T081

5759 –

T101

5759 –

T121

5759 –

T141

5759 –

T161

5759 –

T181

5759 –

T201

5759 –

T221

5759 –

T241

Dimensions

A

-

3.00 (.118)

6.00 (.236)

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

B

6.70 (.264)

9.70 (.382)

12.70 (.500)

15.70 (.618)

18.70 (.657)

21.70 (.854)

24.70 (.972)

27.70 (1.091)

30.70 (1.209)

33.70 (1.327)

36.70 (1.445)

39.70 (1.563)

Dimensional Information

0.64

.025

TYP.

2

4

6

8

10

12

14

16

18

20

22

24

9.9

.390

T = Contact Plating



B

A

Last Circuit Position

T =

2.

Tin plated.

Recommended Finish

T =

13.

Selective Gold flash over 50µ” nickel.

T =

15.

Selective 15µ” gold over 50µ” nickel

T =

16.

Selective 30µ” gold over 50µ” nickel



2.92 ± 0.05

TYP.

.115 ± .002

1St Circuit

Mark

3.00

.118

A± 0.10

1.70 ± 0.10

.067 ± .004

Circuit 1

2.16 ± 0.05

TYP.2

.085 ± .002

3.00 ± 0.10

TYP.

.118 ± .004

1St Circuit Position

2.16

TYP.2

.085

1.4

.055

3.00 ± 0.05

.118 ± .002

11.56 ± 0.08

.455 ± .003

TYP.

1.27 ± 0.05

TYP.

.050 ± .002

2.41 ± 0.05

TYP.2

.095 ± .002

6.86

.270

7.36

.290

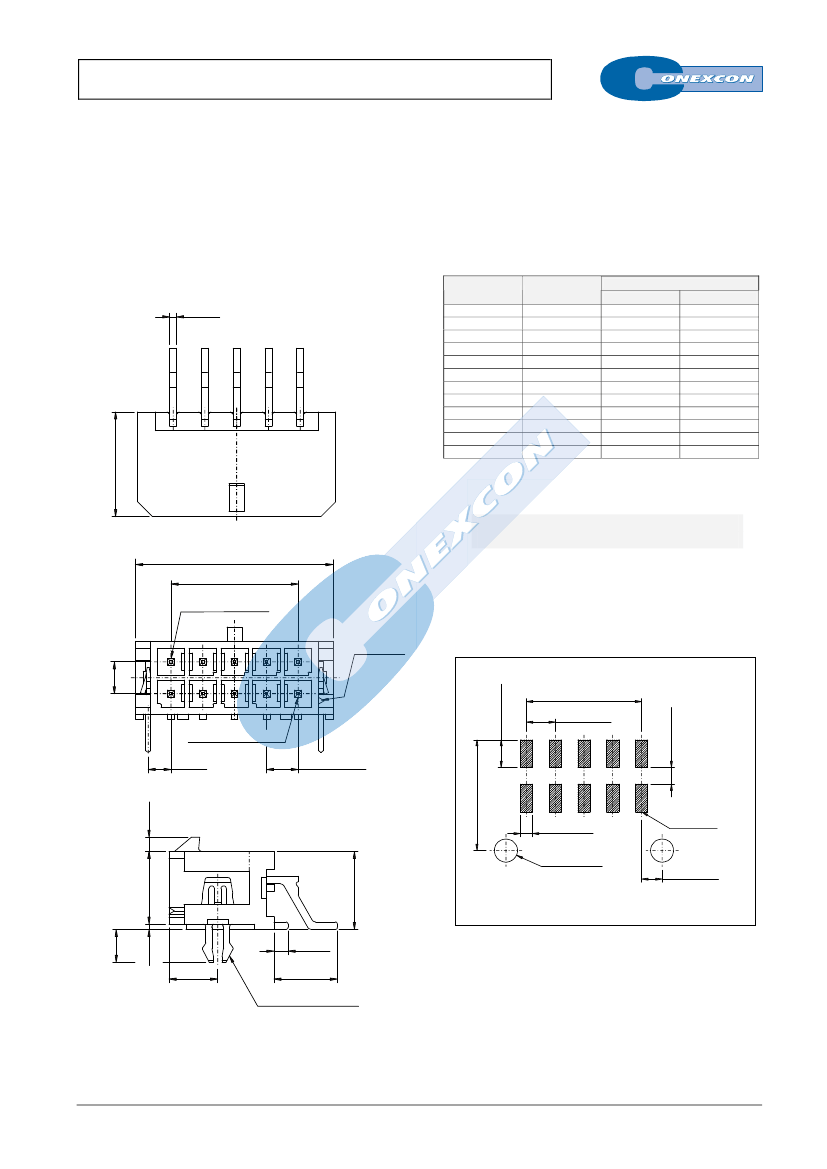

Recommended P.C. Board Layout

3.10

.122

1.35

.053

6.00

.236

Matel board lock

0.5

.020

4.60

.181

FULL LINE CATALOGUE

L-XX

Recommended Resources

M668 dimming control ASIC

STK4101 II power amplifier circuit diagram

Car light warning circuit

Simple parallel voltage regulator circuit

Bridge drive circuit

Four-channel remote control circuit composed of ZHF-9901 and ZHJ-9902
