Part Number

Search

50144-12051-001

Description
Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
CategoryThe connector    The connector
File Size113KB,1 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric Compare View All

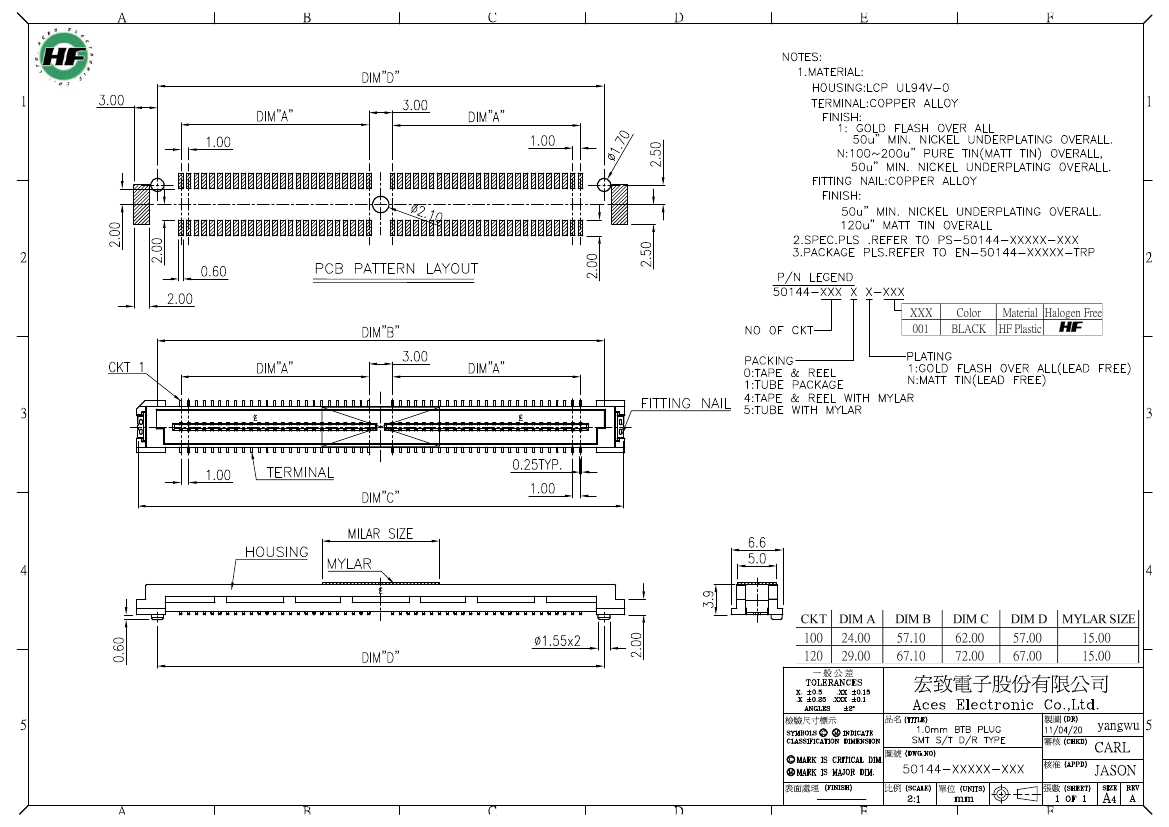

50144-12051-001 Overview

Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

50144-12051-001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAces Electronics Co., Ltd.
Reach Compliance Codeunknow
ECCN codeEAR99
Board mount optionsPEG
body width0.26 inch
subject depth0.154 inch
body length2.835 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrie
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance100 mΩ
Dielectric withstand voltage500VAC V
Durability30 Cycles
maximum insertion force.973 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee4
Manufacturer's serial number50144
Plug contact pitch0.039 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.9944 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts120
Evacuation force-minimum value.1946 N

50144-12051-001 Related Products

50144-12051-001 50144-12041-001
Description Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
Is it Rohs certified? conform to conform to
Maker Aces Electronics Co., Ltd. Aces Electronics Co., Ltd.
Reach Compliance Code unknow unknow
ECCN code EAR99 EAR99
Board mount options PEG PEG
body width 0.26 inch 0.26 inch
subject depth 0.154 inch 0.154 inch
body length 2.835 inch 2.835 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI
Contact completed and terminated Gold (Au) - with Nickel (Ni) barrie Gold (Au) - with Nickel (Ni) barrie
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR
Contact resistance 100 mΩ 100 mΩ
Dielectric withstand voltage 500VAC V 500VAC V
Durability 30 Cycles 30 Cycles
maximum insertion force .973 N .973 N
Insulation resistance 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code e4 e4
Manufacturer's serial number 50144 50144
Plug contact pitch 0.039 inch 0.039 inch
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 5.9944 mm 5.9944 mm
Plating thickness FLASH inch FLASH inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 0.5 A 0.5 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.9906 mm 0.9906 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 120 120
Evacuation force-minimum value .1946 N .1946 N
