470-015

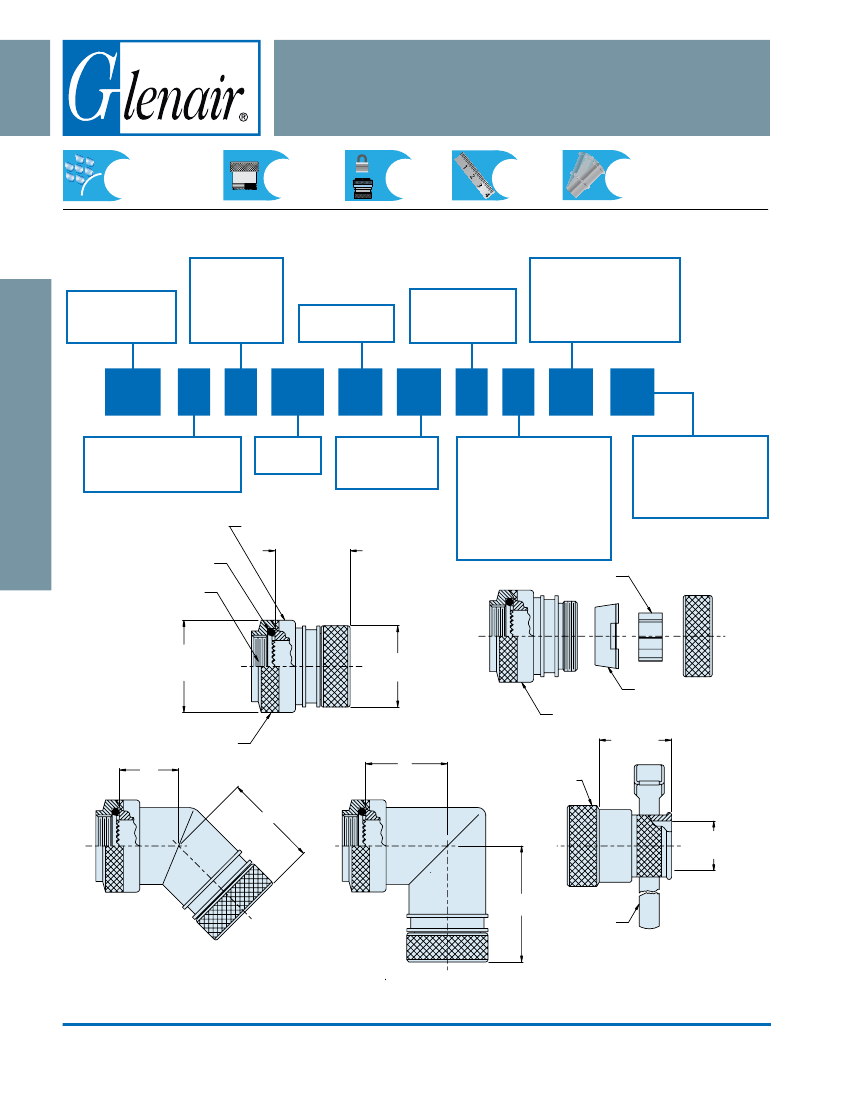

StarShield™ EMI/RFI Shield Termination Backshell
for MIL-DTL-38999 Series III and IV Connectors
High
Ferrule Count
StarShield™
Backshells
Environmental
Rear End
Options
Self
Locking
Standard
Length
StarShield™ environmental, backshell with self-locking coupling nut and shrink boot
Angular
Function
S
- Straight
H
- 45°
J
- 90°
Drilled Star
DS
- Drilled Star -
Optional
(Omit if Not Required)
(See Note 4)
Product Series
470
-
StarShield™
Finish Code
(See Table II)
Ferrule
Quantity Code
(See Table I)
470
H
S
015
Basic
Number
NF
17
6
G
DS
-
T
Shrink Boot
T
- Shrink Boot -
Optional
(Omit for None)
(See Table III)
B
Connector Designator
H
- MIL-DTL-38999
Series III and IV
Order
Number
(See Table I)
O-Ring
A Thread
Anti-Decoupling
Device, Typ,
(
See Note 5
)
1.250 (31.8)
Max
Rear End Options
B
- Compression Nut
with Band
C
- Conduit Adapter
G
- Gland Nut
T
- Tinel Nut with Tinel
Ring for Single Braid
Star
(
See Note 4
)
SYMBOL G
Gland Nut
B Max
Typ
C Max
Typ
Knurl Style Mfr
Option - Typ
D
Compression
Ring Assembly
Adapter Assembly
1.170 (29.7)
Max
SYMBOL S
Straight
F
Banding Nut
E
K
Dia
SYMBOL B
Compression Nut
with Band
SYMBOL H
45°
SYMBOL J
90°
G
Band
(601-040)
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-14
E-Mail: sales@glenair.com
for MIL-DTL-38999 Series III and IV Connectors
Table I: Dimensions
B Dia
C Dia
Max
Max
.940 (23.9)
1.060 (26.9)
1.170 (29.7)
1.290 (32.8)
1.420 (36.1)
1.540 (39.1)
1.670 (42.4)
2.010 (51.1)
2.120 (53.8)
.690 (17.5)
.850 (21.5)
.890 (22.5)
1.000 (25.4)
1.120 (28.5)
1.240 (31.5)
1.380 (35.0)
1.500 (38.0)
1.610 (41.0)
Order
No.
09
11
13
15
17
19
21
23
25
Connector Shell
Size Ref
A/9
B/11
C/13
D/15
E/17
F/19
G/21
H/23
J/25
A Thread
ISO Metric
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
D
Max
.750 (19.1)
.780 (19.8)
.810 (20.6)
.830 (21.1)
.860 (21.8)
.880 (22.4)
.910 (23.1)
.930 (23.6)
.940 (23.9)
E
Max
1.000 (25.4)
1.020 (26.0)
1.040 (26.5)
1.080 (27.5)
1.100 ((28.0)
1.120 (28.5)
1.140 (29.0)
1.180 (30.0)
1.220 (31.0)
F
Max
.880 (22.4)
.960 (24.4)
1.000 (25.4)
1.070 (27.2)
1.130 (28.7)
1.180 (30.0)
1.250 (31.8)
1.310 (33.3)
1.360 (34.5)
Table I: Dimensions (Continued)
Order
No.
09
11
13
15
17
19
21
23
25
G
Max
1.140 (29.0)
1.200 (30.5)
1.260 (32.0)
1.320 (33.5)
1.380 (35.0)
1.440 (36.5)
1.520 (38.5)
1.570 (40.0)
1.630 (41.5)
H
± .003 (.08)
.435 (11.0)
.623 (15.8)
.746 (18.9)
.871 (22.1)
.996 (25.3)
1.121 (28.5)
1.245 (31.6)
1.371 (34.8)
1.371 (34.8)
J Thread
ISO Metric
M12 X 1 - 6g
M15 X 1 - 6g
M18 X 1 - 6g
M22 X 1 - 6g
M25 X 1 - 6g
M28 X 1 - 6g
M31 X 1 - 6g
M34 X 1 - 6g
M37 X 1 - 6g
K
± .004 (.10)
.315 (8.00)
.531 (13.5)
.591 (15.0)
.709 (18.0)
.827 (21.0)
.945 (24.0)
1.063 (27.0)
1.181 (30.0)
1.299 (33.0)
Ferrule Quantity
(See Note 4)
Std.
1
2
3
5
6
7
9
10
12
Opt.
-
-
-
-
7
-
11
13
17
Table II: Material and Finish Options
Code
Material; Finish Description
M
Aluminum; electroless nickel
MT
Aluminum; nickel - PTFE
Aluminum; CAD/O. D. over electroless
NF
nickel
Aluminum; zinc nickel/O. D. over
ZN
electroless nickel
Aluminum; zinc nickel/black over
ZR
electroless nickel (RoHS)
Aluminum; zinc nickel over electroless
ZRC
nickel (RoHS)
Z1
Stainless steel; passivate
ZM
Stainless steel; electroless nickel
Table III: Shrink Boot
Shell
Size
09
11
13
15
17
19
21
23
25
Shrink Boot
Part Number
770-001S1 04
770-001S1 06
770-001S1 06
770-001S1 07
770-001S1 07
770-001S1 08
770-001S1 08
770-001S1 08
770-001S1 09
Material/Finish
Backshell, elbows,
coupling and gland
nut, compression ring
and star
Anti-decoupling device
Tinel ring
Band
Aluminum alloy or
CRES/Table II
Corrosion resistant
material
Nickel-titanium
alloy/n.a.
CRES/passivate
Notes:
J Thread
.330 (8.4) Max
SYMBOL C
Conduit
Adapter
.940 (23.9) Max
H
SYMBOL T
Tinel Nut
1. Assembly identified with manufacturer’s name,
part number and date code, space permitting.
2. For effective grounding, connector with
conductive finish should be used.
3. Glenair 600 Series Backshell Assembly Tools are
recommended for assembly and installation.
4. Star not supplied with order number 09. Drilled
star is available on order numbers 15-25 only. If
optional ferrule quantity per Table I is selected,
one split and one solid star will be supplied.
5. Over-travel coupling design provides self-
seating and self-locking functionality,
eliminating lock-wire requirements.
6. Ferrule kit sold separately.
687-764 ferrule and HST device kit
687-809 ferrule and sealing device kit
687-748 solder ferrule
687-841-01 HST flex device
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-15
E-Mail: sales@glenair.com
