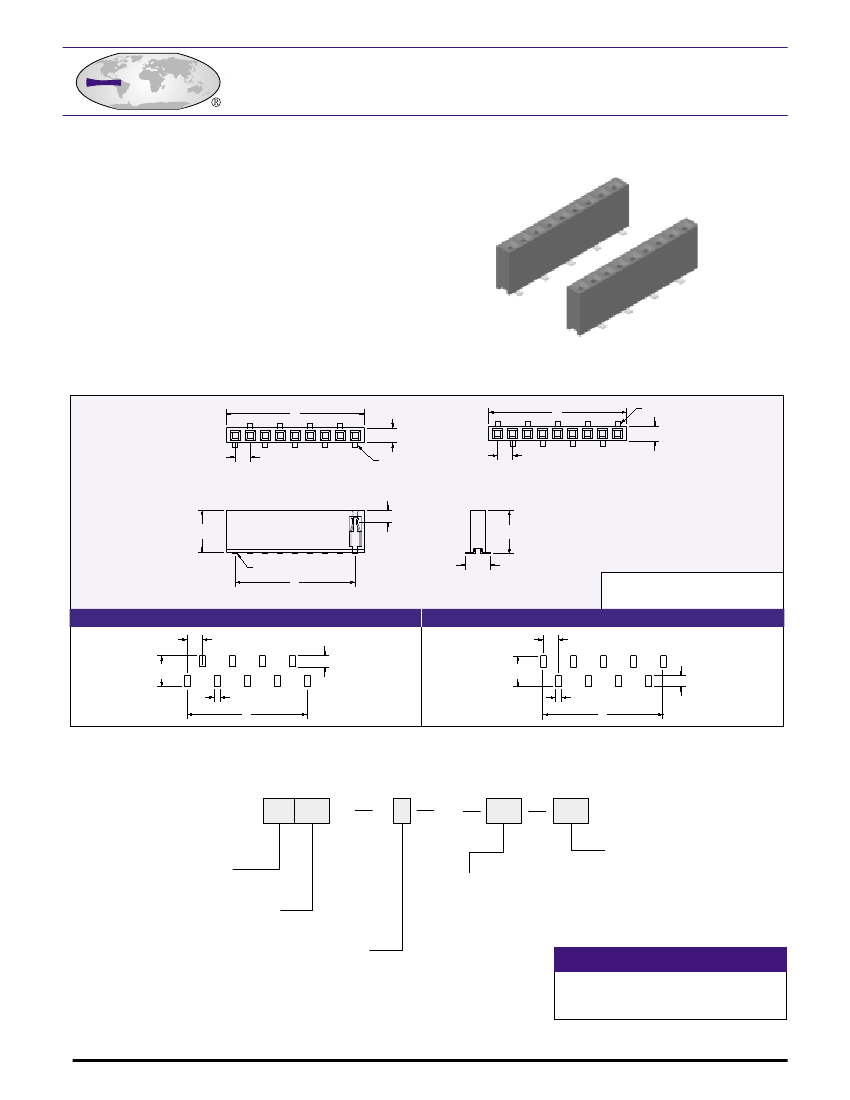

Specifications
.100 [2.54] 1 Row SMT Socket
9300S Series Sockets
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Phosphor Bronze
Contact Plating: Gold or Tin over .000050” Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Contact Resistance:
20 m ohms max.
Dielectric Withstand Voltage: 1000 VAC
Current Rating:
3 AMP
Operating Temperature:
-40°C To +105°C
Max Processing Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
A
TYPE 1
.100 [2.54]
.098 [2.5]
POS. NO.1
TYPE 2
A
POS. NO.1
.098 [2.5]
.100 [2.54]
.079 [2.0]
.280 [7.1]
.291 [7.4]
.020 x.010 [.50 x.25]
B
.165 [4.2]
A
= .100 x No. of Pos.
B
= .100 x (No. of Pos. -1)
PCB LAYOUT TYPE 2
.100 [2.54]
.075 [1.91]
.205 [5.2]
.039 [1.0]
B
PCB LAYOUT TYPE 1
.100 [2.54]
.205 [5.2]
.039 [1.0]
B
.075 [1.91]
DIMENSIONS ARE IN INCHES & [MM]
PART NUMBERING
93 XX S
SERIES CODE
.100 SOCKETS
E X
11
XX
XX
PACKAGING
TR
= TAPE & REEL PACKAGING
PP
= PICK AND PLACE PAD
BLANK = STANDARD PACKAGING
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
03
= Au Flash
Au Flash
80
= 10µ”Au
10µ”Au
90
= 30µ”Au
30µ”Au
NO. OF CONTACTS
03 - 40
CONSULT FACTORY FOR
TR
AND
PP
PACKAGING
AVAILABILITY
CONNECTOR TYPE
1
= TYPE 1
2
= TYPE 2
SUGGESTED MATING CONNECTORS
(PAGE F-37)
93XXS-1X-XX-XX
(PAGE F-39)
93XXS-13-XX-XX
93XXS-14-XX-XX-XXXX (PAGE F-41)
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
WWW.ECSCONN.COM
