IPC-6025
NEW
5-slot Desktop/Wallmount Chassis
with Scalability for Multi-system Solution
Features
An ultra compact desktop chassis with scalability to a 5U quad-system
rackmount chassis
LED indicators and alarm notification for system fault detection, including
power, HDD, temperature and fan
Shock-resistant disk drive bay to hold two 3.5” disk drives (one external and
two internal)
Supports 5-slot PICMG 1.3/1.0 full-size passive backplane
Adopts 1U 270W power supply
Optional one rackmount carrier for multi-system solution
Specifications
Drive Bay
Cooling
Front I/O Interface
Miscellaneous
3.5"
2.5"
Fan
Air Filters
USB
LED Indicators
Control
Rear Panel
Temperature
Humidity
Vibration (5 ~ 500 Hz)
Shock
Dimensions (W x H x D)
Weight
Front-accessible
1
-
1 (9 cm / 53 CFM)
Yes
2
Power, HDD, temperature, fan
Power switch and system reset buttons
Reserved Two 9-pin D-Sub openings
Operating
0 ~ 40° C (32 ~ 104° F)
10 ~ 85 % @ 40° C, non-condensing
1 Grms
10 G (with 11 ms duration, half sine wave)
111 x 212 x 420 mm (4.4" x 8.3" x 16.5")
4.7 kg (10.3 lb)
Internal
1
2 (Optional with special bracket)
Environment
Non-operating
-20 ~ 60° C (-4 ~ 140° F)
10 ~ 95 % @ 40° C, non-condensing
2G
30 G
Physical Characteristics

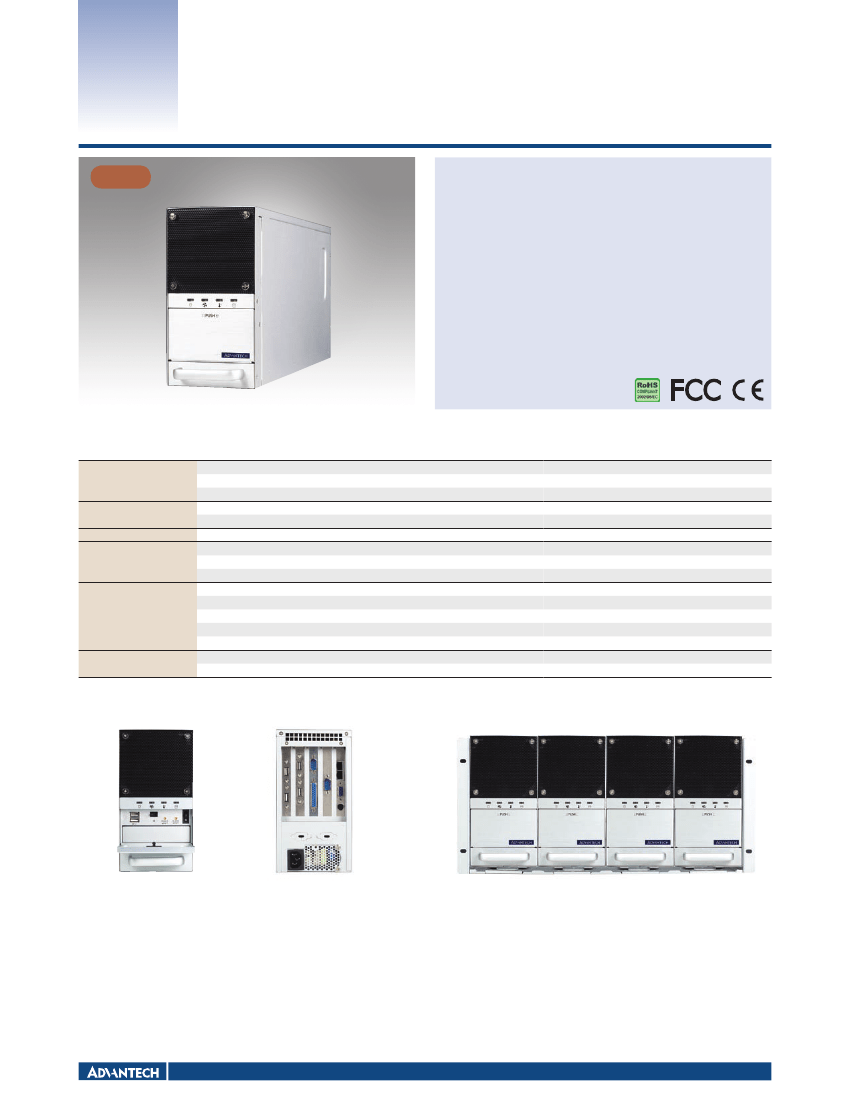

Front View
Rear View
4 IPC-6025 combined as a Quad-system
5U Rackmount Chassis
Industrial Computer Chassis
All product specifications are subject to change without notice
Last updated : 31-July-2009
IPC-6025

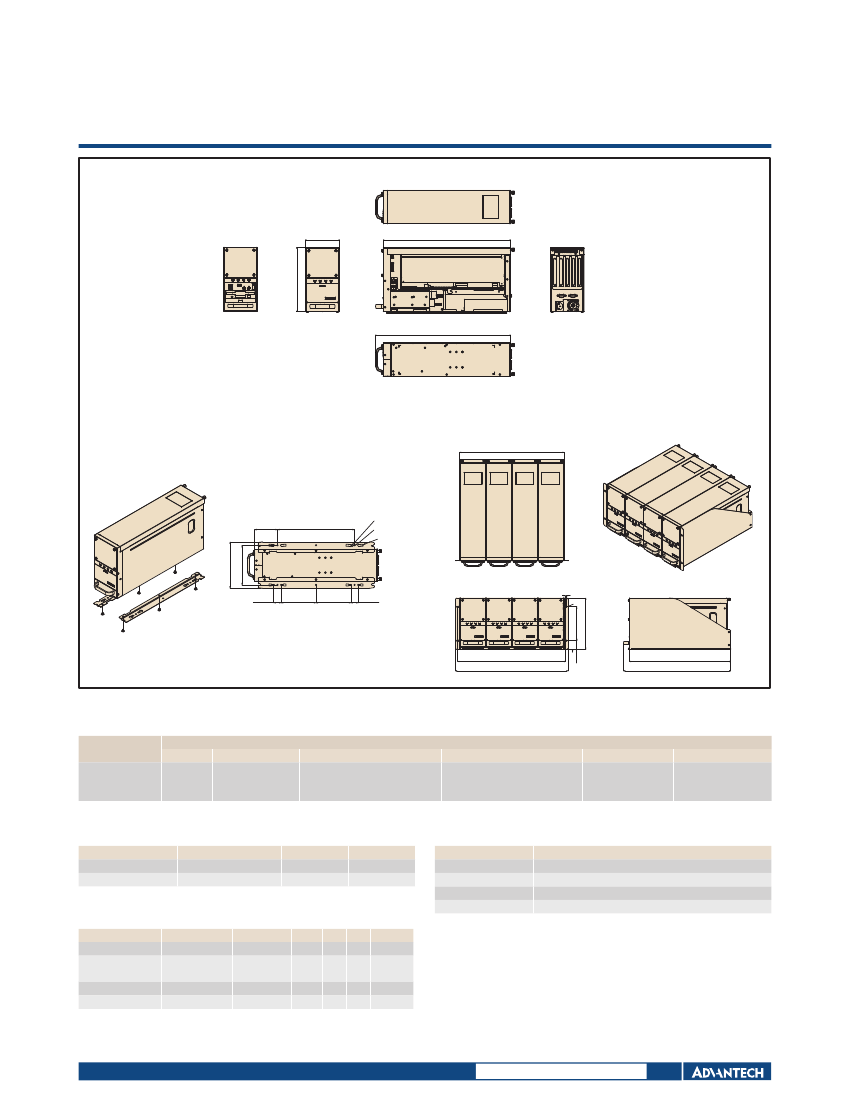

Dimensions
111 [4.37]
420 [16.54]
Unit: mm (inch)
212 [8.35]
445,5 [17.54]
Installation
Single System
Quad System
449.00 [17.68]
Unit: mm (inch)
78.00
[3.07]
159.00 [6.26]
136.00 [5.35]
264.00
[10.39]
R2.50 [R0.10]
5.00 [ 0.20]
R5.00
[R0.20]
5.00 [0.20]
146.10 [5.75]
221.50 [8.72]
465.10 [18.31]
485.00 [19.09]
37.70
[1.48]
25.20
[0.99]
119.40
[4.70]
119.40
[4.70]
25.20
[0.99]
R3.25 [R0.13]
436.70 [17.19]
462.20 [18.20]
Power Supply Options
Part Number
1757001847
(ATX, PFC)
Watts
270 W
Input
AC 100 ~ 240 V
(full range)
Output
+3.3 V @ 16 A, +5 V @ 18 A,
+12 V @ 16 A, +12 V @ 10 A
-12 V @ 0.8 A, +5 Vsb @ 2.5 A
Specifications
Mini-load
+3.3 V @ 0.5 A, +5 V @ 0.5 A,
+12 V @ 1 A
Safety
UL/TUV/CB/CCC
MTBF
100,000 hrs @ 25° C
Ordering Information
Model Name
IPC-6025BP-00XE
IPC-6025BP-27ZE
Power Supply
Without power supply
1757001847
Backplane
-
-
Regulation
-
CE
Accessories
Ordering P/N
96FDD-144-TE-B
1759200690
1990010071S000
9892602501E
Description
Black 3.5" FDD
9 cm / 53 CFM fan
Fan sponge
Rackmount carrier for Quad System solution
Backplane Options
Model
PCE-5B04-20A1E
PICMG1.3/1.0 PCIe
PICMG1.3
1 (PCIe x 16)
1 (PCIe x 16)
PCE-5B05-02A1E PICMG1.3
1 (PCIe x 4)
PCE-7B05-20A1E PICMG1.3
2 (PCIe x 8)
PCA-6105P3-5A1E PICMG1.0
-
PCI-X PCI ISA PCI/ISA
2
-
-
-
2
-
2
-
2
-
-
1
-
-
1
