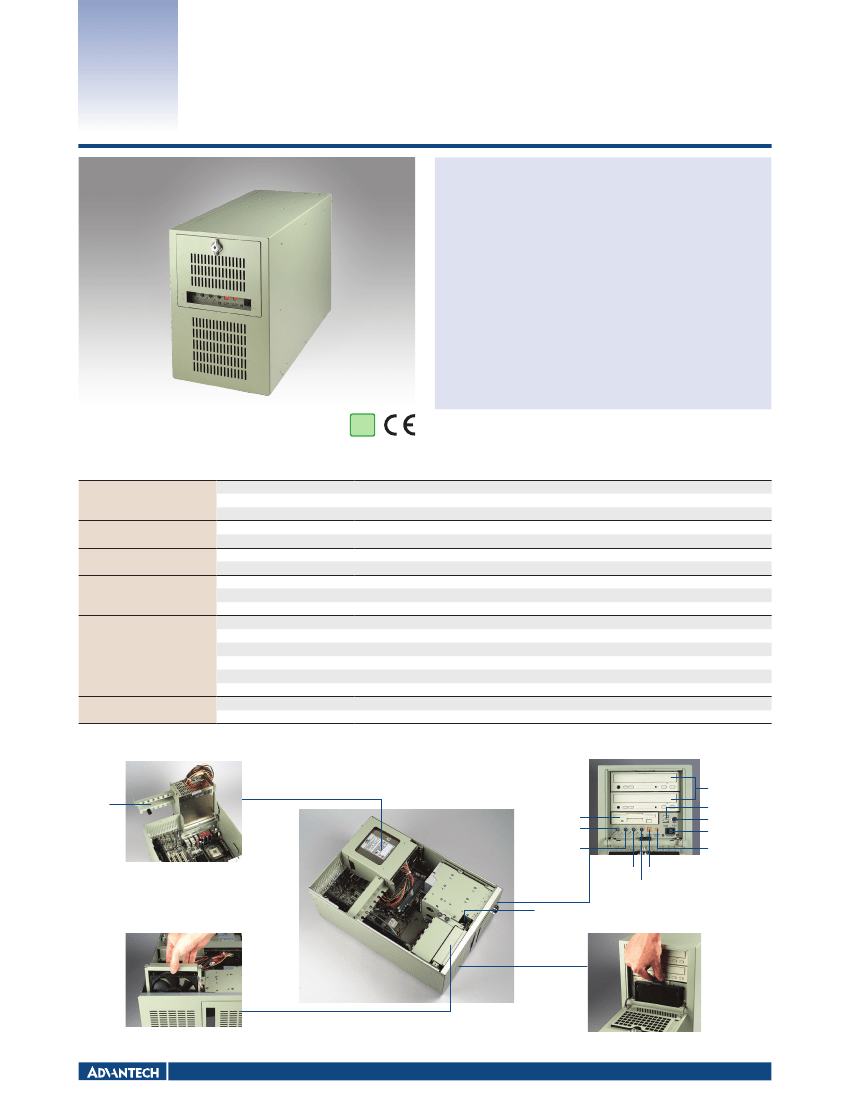

IPC-7220
Features
Desktop/Wallmount Chassis
for ATX Motherboard
Supports two front-accessible 5.25" and two standard 3.5" drives (one
external & one internal)
Lockable front door prevents unauthorized access
Front-accessible USB and PS/2 interfaces
Front LED indicators for fault detection and alarm notification
Easy-to-maintain air filters
Shock-resistant drive bay
Bidirectionally mountable on panels or walls with supplied bracket
Optional redundant power supply
RoHS
COMPLIANT
2002/95/EC
Specifications
Drive Bay
Cooling
I/O Interface
Miscellaneous
5.25"
3.5"
Air Filters
Fan
USB
PS/2
Indicators
Switches
Rear Panel
Temperature
Humidity
Vibration (5 ~ 500 Hz)
Shock
Altitude
Dimensions (W x H x D)
Weight
Front-accessible
Internal
2
-
1
1
2 (one 7 x 12 cm and one 12 x 12 cm)
One (85 CFM)
2 (front-accessible)
PS/2 keyboard and mouse, or PS/2 keyboard depends on the enclosed motherboard
PWR, HDD, Temperature and Fan
Power, system reset and alarm reset
Reserved two D-Sub 9-pin openings
Operating
Non-Operating
0 ~ 40° C (32 ~ 104° F)
-20 ~ 60° C (-4 ~ 140° F)
10 ~ 85 % @ 40° C, non-condensing
10 ~ 95 % @ 40° C, non-condensing
1 Grms
2G
10 G (with 11 ms duration, half sine wave)
30 G
0 to 3,048 m (0 ~ 10,000 ft)
200 x 320 x 480 mm (7.9" x 12.6" x 18.9")
14 kg (30.8 lb)
Environmental
Physical Characteristics
Hold down
clamp
One 3.5"
drive bay
Power LED
Fan LED
Easy-to-maintain power
supply bracket design
Two 5.25"
drive bays
USB
PS/2
Power switch
System reset
button
Temp LED Alarm reset button
HDD LED
One internal 3.5" HDD
Easy-to-replace cooling fan
Easy-to-replace fan filter
Industrial Computer Chassis
IPC-7220

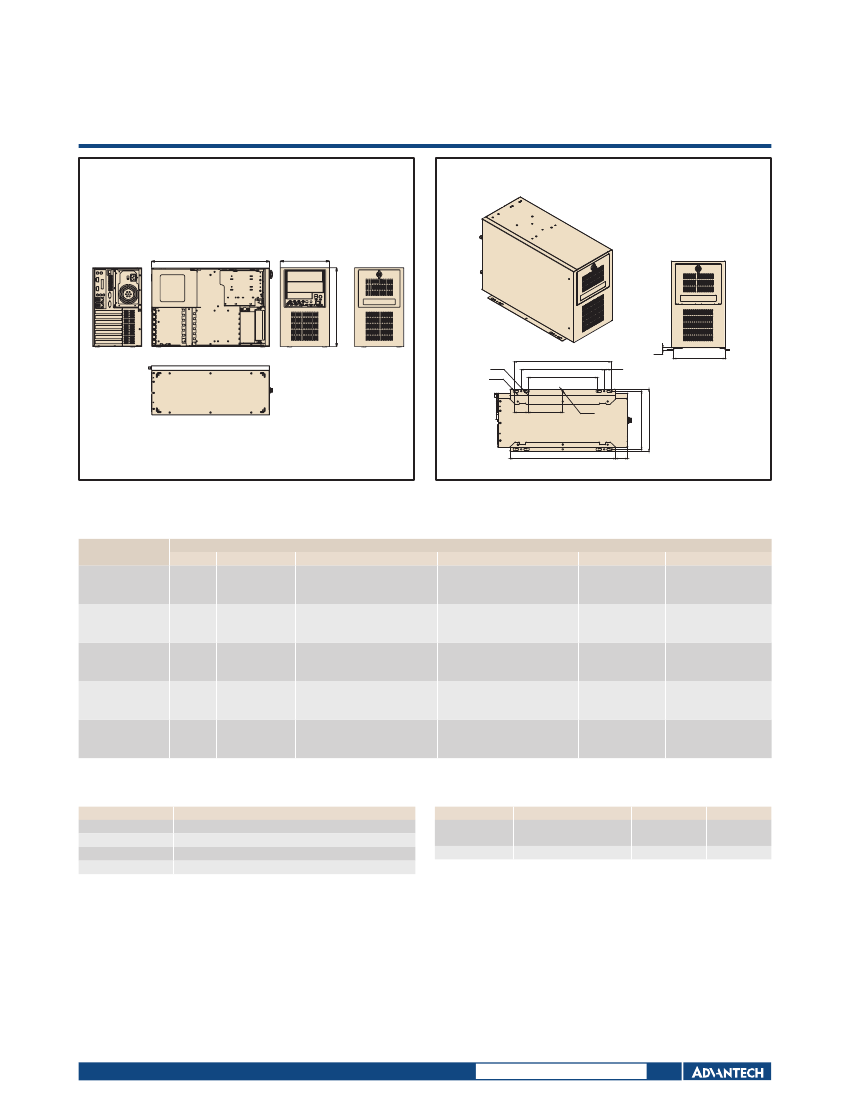

Dimensions
Unit: mm (inch)
Installation
Unit: mm (inch)
480 (18.91)
200 (7.88)
320 (12.61)
5.2
( 0.20")
10
( 0.39")
356.2 (14.00")
306.2 (12.03")
256.2 (10.07")
25
(0.98")
8
(0.31")
189.1 (7.43")
214.6 (8.43")
45
(1.77")
50 128.1
(1.97") (5.03")
5.2
( 0.20")
390 (15.33")
Power Supply Options
Part Number
PS-300ATX-DC48E
(ATX)
PS-300ATX-ZBE
(ATX, PFC)
RPS-300ATX-ZE
(ATX, PFC)
PS-400ATX-ZBE
(ATX, PFC)
RPS-400ATX-ZE
(ATX, PFC)
Watt
300 W
300 W
300 W
400 W
400 W
Input
DC - 48 V
AC 100 ~ 240 V
(full-range)
AC 100 ~ 240 V
(full-range)
AC 100 ~ 240 V
(full-range)
AC 100 ~ 240 V
(full-range)
Output
+5 V @ 30 A, +3.3 V @ 28 A
+12 V @ 15 A, -12 V @ 0.8 A
-5 V @ 0.3 A, +5 Vsb @ 2 A
+5 V @ 30 A, +3.3 V @ 28 A
+12 V @ 15 A, -12 V @ 0.8 A
-5 V @ 0.3 A, +5 Vsb @ 2 A
+5 V @ 25 A, +3.3 V @ 18 A
+12 V @ 16 A, -12 V @ 0.5 A
-5 V @ 0.5 A, +5 Vsb @ 2 A
+5 V @ 35 A, +3.3 V @ 25 A
+12 V @ 30A, -12 V @ 1.0 A
-5 V @ 0.8 A, +5 Vsb @ 2 A
+5 V @ 35 A, +3.3 V @ 25 A
+12 V @ 28 A, -12 V @ 1.2 A
-5 V @ 0.5 A, +5 Vsb @ 2 A
Specifications
Mini-load
+5 V @ 0.3 A, +3.3 V @ 0.3 A
+12 V @ 0.2 A
+5 V @ 0.1 A, +12 V @ 0.3 A
+5 V @ 3 A, +3.3 V @ 1 A
+12 V @ 2 A, +5 Vsb @ 0.1 A
+5 V @ 3 A, +3.3 V @ 1 A
+12 V @ 2 A, +5 Vsb @ 0.1 A
+5 V @ 3 A, +3.3 V @ 1 A
+12 V @ 2 A, +5 Vsb @ 0.1 A
Safety
UL/TUV/CB/CCC
UL/TUV/CB/CCC
UL/TUV/CB/CCC
UL/TUV/CB/CCC
UL/TUV/CB/CCC
MTBF
100,000 hrs @ 25° C
100,000 hrs @ 25° C
100,000 hrs @ 25° C
91,000 hrs @ 25° C
100,000 hrs @ 25° C
Accessories
Part Number
1750000257
1759208500
1990000486
1990000488
Description
2U-high P4 Socket 478 CPU cooler up to 3.2 GHz (89 W)
Fan 120 x 120 x 25.4 mm with housing
Fan filter 133 x 112 x 5 mm
Door filter
Ordering Information
Part Number
IPC-7220-00XE
IPC-7220-30ZE
Power Supply
Without power supply, with
ATX switch
PS-300ATX-ZBE
Motherboard
-
-
Regulation
-
CE
Online Download
www.advantech.com/products
