DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

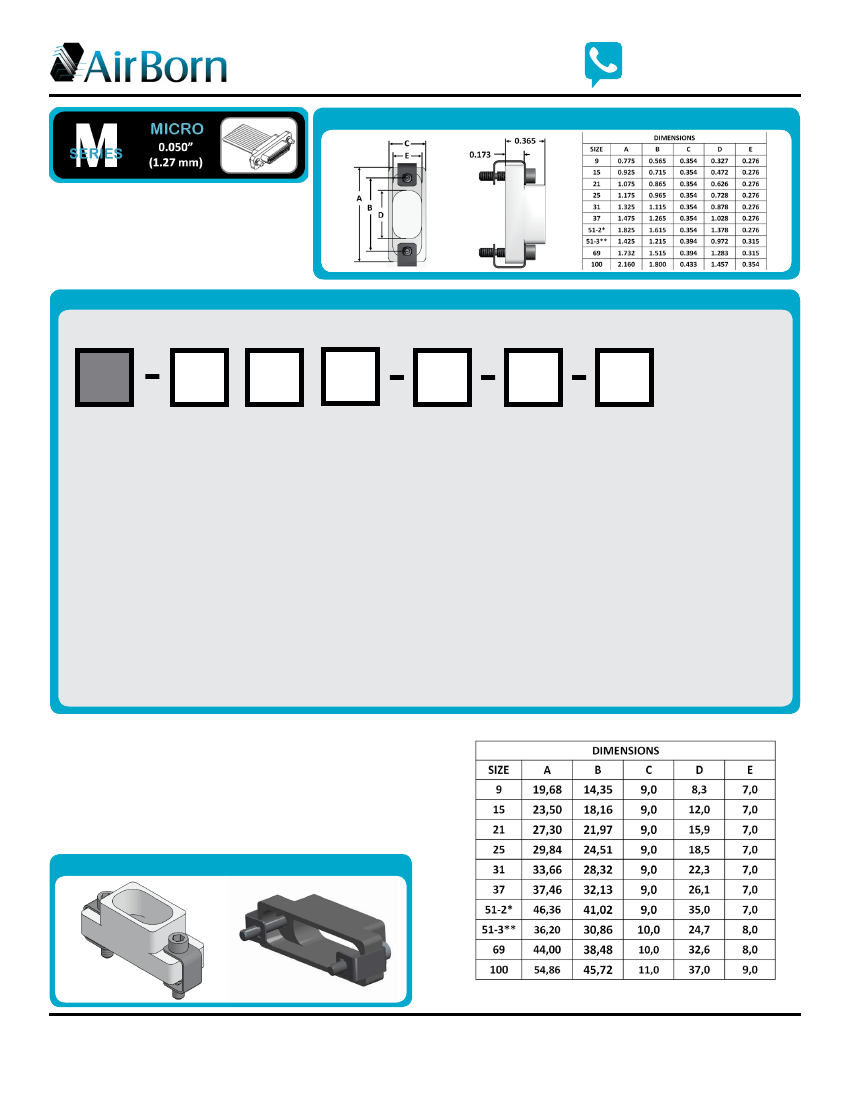

MB P – Potting Well Backshell

with Elongated Top Entry

For use with AirBorn rugged M-Series (MM)

and MIL-DTL-83513 style connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: MB-2P5-037-000-4A00

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Micro Connector

Backshells

ROWS

2 – 2-Row

(Sizes 9-51)

3 – 3-Row

(Size 51-69)

4 – 4-Row

(Size 100)

BODY STYLE

P – Elongated top

entry

BODY MATERIAL

2 – Nickel-plated

aluminum

3 – Cadmium-plated

aluminum *

5 – Passivated

stainless steel

SIZE

009 – 9 Contacts

015 – 15 Contacts

021 – 21 Contacts

025 – 25 Contacts

031 – 31 Contacts

037 – 37 Contacts

051 – 51 Contacts

069 – 69 Contacts

100 – 100 Contacts

ENTRY SIZE

000

HARDWARE

0000 – None

2200 – Jackpost, 2-56 (sizes 9-69, only)

4A00 – Allen head jackscrew, 2-56 (sizes 9-69, only)

4B00 – Slot head jackscrew, 2-56 (sizes 9-69, only)

6200 – Jackpost, 4-40 (size 100, only)

8A00 – Allen head jackscrew, 4-40 (size 100, only)

8C00 – Slot head jackscrew, 4-40 (size 100, only)

NOTES

* Option not RoHS-compliant

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640,

Type 1 or AISI-303 or EN 10088-3 1½4305

Passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

MB-2P5-037-000-4A00

Two-row connector with 51 contacts (non-MIL-Spec interface)

** Three-row connector with 51 contacts
