SSCDANN600MA5A3 datasheet, PDF

Datasheet> All Categories > The sensor> SSCDANN600MA5A3

SSCDANN600MA5A3: DescriptionPeizoresistive Sensor, Absolute, 0Psi Min, 8.702Psi Max, 0.25%, Rectangular, Through Hole Mount, 10 X 12.50 MM, ROHS COMPLIANT, DIP-8; CategoryThe sensor; File Size2MB，12 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SSCDANN600MA5A3 Overview

Peizoresistive Sensor, Absolute, 0Psi Min, 8.702Psi Max, 0.25%, Rectangular, Through Hole Mount, 10 X 12.50 MM, ROHS COMPLIANT, DIP-8

SSCDANN600MA5A3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Honeywell
Reach Compliance Code	unknow
Maximum accuracy(%)	0.25%
Other features	TEMPERATURE COMPENSATED
body width	9.91 mm
body height	13.85 mm
Body length or diameter	12.45 mm
shell	POLYAMIDE
Installation features	THROUGH HOLE MOUNT
Number of digits	12
Maximum working current	2.1 mA
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output interface type	I2C INTERFACE
Output type	DIGITAL OUTPUT
Package Shape/Form	RECTANGULAR
port type	BARBED
Maximum pressure range	8.702 Psi
Minimum pressure range
Pressure sensing mode	ABSOLUTE
Response time	460 µs
Sensor/temperature sensor type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	3.3 V
Minimum supply voltage	3 V
surface mount	NO
Termination type	SOLDER

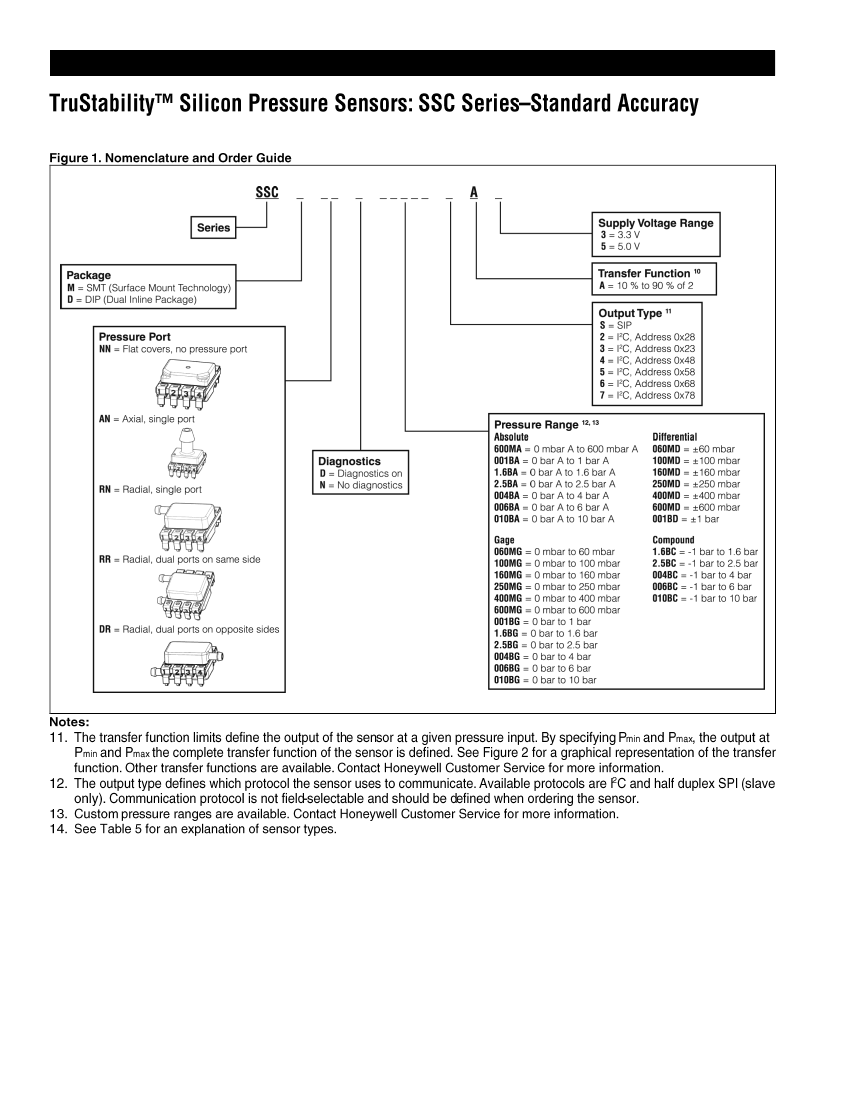

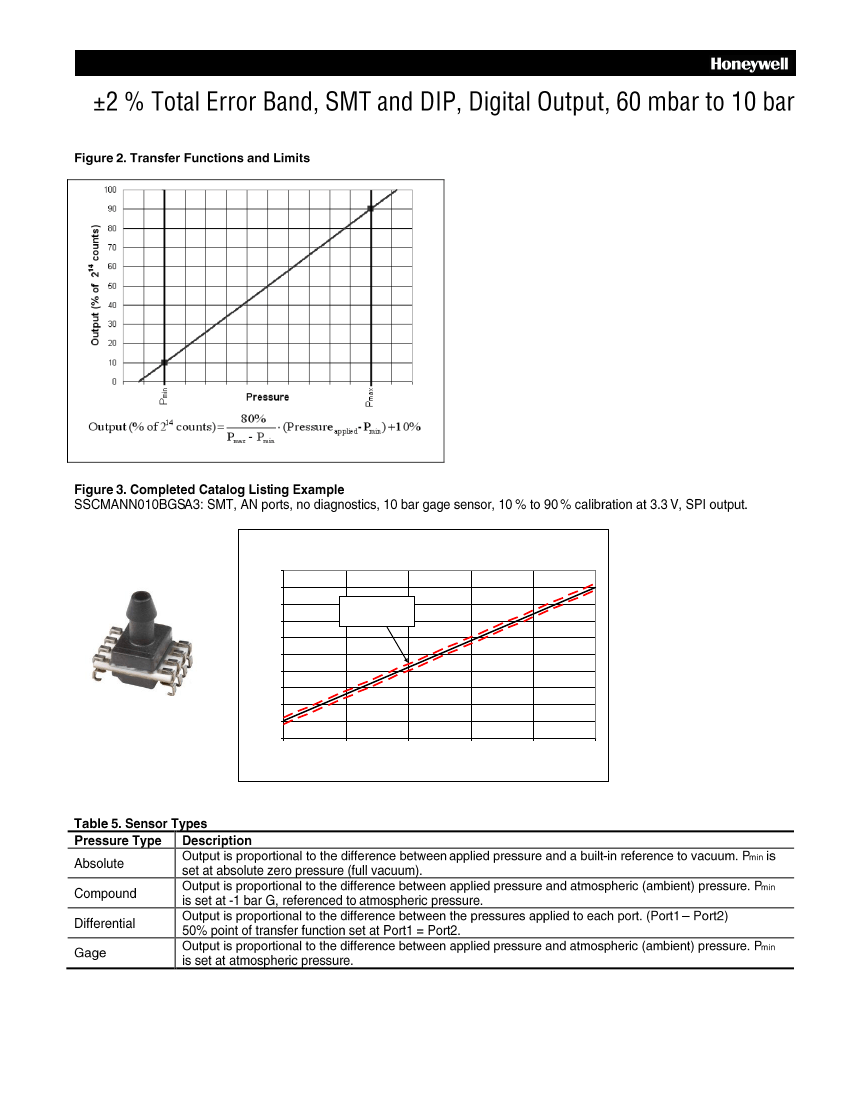

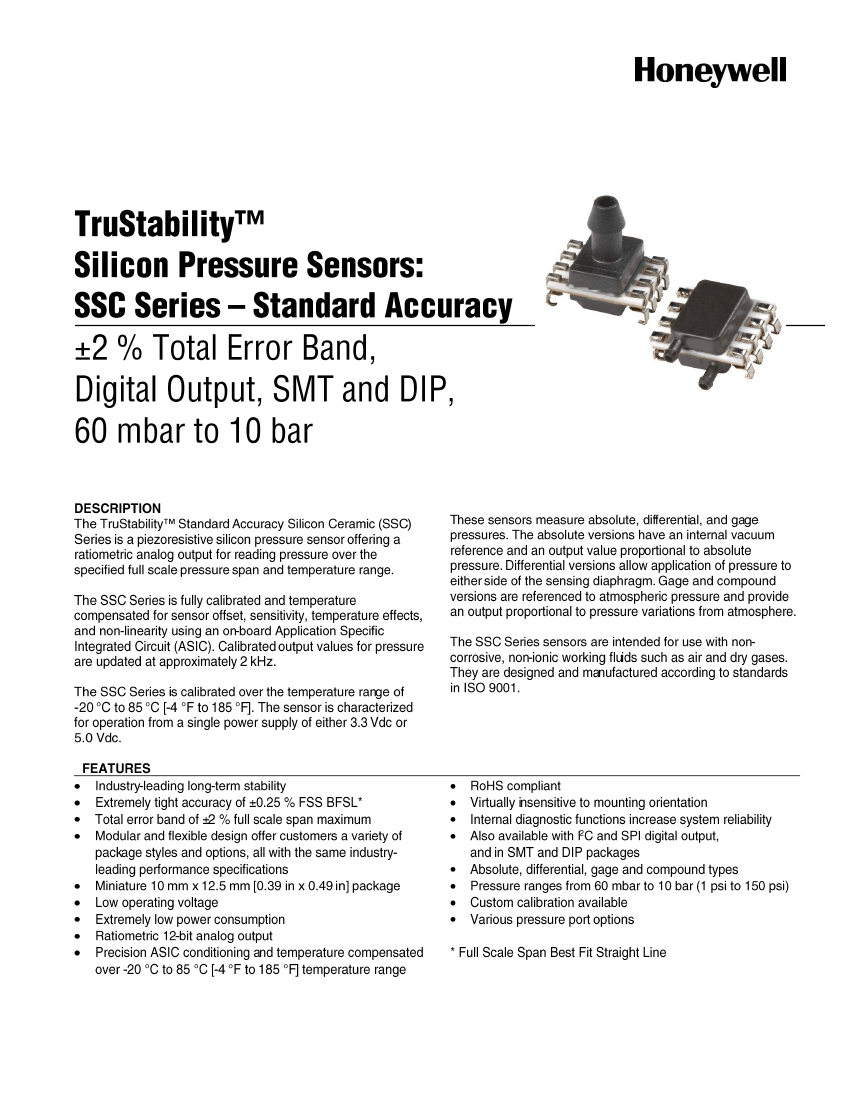

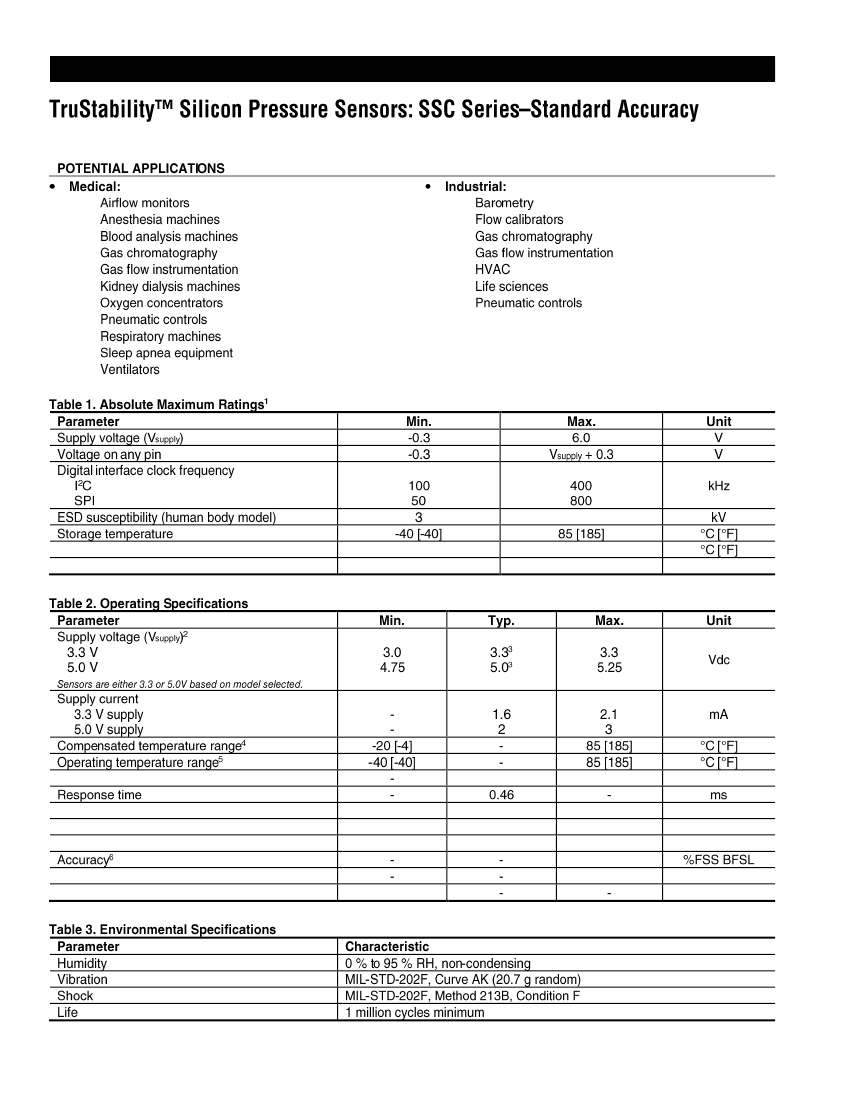

Preview

Download Datasheet

View All

SSCDANN600MA5A3 Related Products

	SSCDANN600MA5A3	SSCDNND001MD2A5	SSCMRRN010BC3A3	SSCMRRN010BC3A5	SSCMANN006BC3A3	SSCMANN006BC3A5	SSCMNNN2.5BCSA3	SSCMNNN2.5BCSA5	SSCMRRN2.5BC5A3	SSCMRRN2.5BC5A5
Description	Peizoresistive Sensor, Absolute, 0Psi Min, 8.702Psi Max, 0.25%, Rectangular, Through Hole Mount, 10 X 12.50 MM, ROHS COMPLIANT, DIP-8	Peizoresistive Sensor, Differential, 0.25%, Rectangular, Through Hole Mount, 10 X 12.50 MM, ROHS COMPLIANT, DIP-8	Peizoresistive Sensor, Compound, 0Psi Min, 145.03Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8	Peizoresistive Sensor, Compound, 0Psi Min, 145.03Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8	Peizoresistive Sensor, Compound, 0Psi Min, 87.022Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8	Peizoresistive Sensor, Compound, 0Psi Min, 87.022Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8	Peizoresistive Sensor, Compound, 0Psi Min, 36.259Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8	Peizoresistive Sensor, Compound, 0Psi Min, 36.259Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8	Peizoresistive Sensor, Compound, 0Psi Min, 36.259Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8	Peizoresistive Sensor, Compound, 0Psi Min, 36.259Psi Max, 0.25%, Rectangular, Surface Mount, 10 X 12.50 MM, ROHS COMPLIANT, SMT-8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Maximum accuracy(%)	0.25%	0.25%	0.25%	0.25%	0.25%	0.25%	0.25%	0.25%	0.25%	0.25%
Other features	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED
body width	9.91 mm	9.91 mm	12.45 mm	12.45 mm	9.91 mm	9.91 mm	9.91 mm	9.91 mm	12.45 mm	12.45 mm
Body length or diameter	12.45 mm	12.45 mm	12.84 mm	12.84 mm	12.45 mm	12.45 mm	12.45 mm	12.45 mm	12.84 mm	12.84 mm
shell	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of digits	12	12	12	12	12	12	12	12	12	12
Maximum working current	2.1 mA	3 mA	2.1 mA	3 mA	2.1 mA	3 mA	2.1 mA	3 mA	2.1 mA	3 mA
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output type	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT	DIGITAL OUTPUT
Package Shape/Form	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
port type	BARBED	HOLE	BARBED	BARBED	BARBED	BARBED	HOLE	HOLE	BARBED	BARBED
Pressure sensing mode	ABSOLUTE	DIFFERENTIAL	COMPOUND	COMPOUND	COMPOUND	COMPOUND	COMPOUND	COMPOUND	COMPOUND	COMPOUND
Response time	460 µs	460 µs	460 µs	460 µs	460 µs	460 µs	460 µs	460 µs	460 µs	460 µs
Sensor/temperature sensor type	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	3.3 V	5.25 V	3.3 V	5.25 V	3.3 V	5.25 V	3.3 V	5.25 V	3.3 V	5.25 V
Minimum supply voltage	3 V	4.75 V	3 V	4.75 V	3 V	4.75 V	3 V	4.75 V	3 V	4.75 V
surface mount	NO	NO	YES	YES	YES	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
body height	13.85 mm	5.54 mm	6.54 mm	6.54 mm	13.85 mm	13.85 mm	-	-	6.54 mm	6.54 mm
Output interface type	I2C INTERFACE	-	I2C INTERFACE	I2C INTERFACE	I2C INTERFACE	I2C INTERFACE	I2C INTERFACE	I2C INTERFACE	I2C INTERFACE	I2C INTERFACE
Maximum pressure range	8.702 Psi	-	145.03 Psi	145.03 Psi	87.022 Psi	87.022 Psi	36.259 Psi	36.259 Psi	36.259 Psi	36.259 Psi
