C0603S103J5RAC7867: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP; CategoryPassive components capacitor; File Size57KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C0603S103J5RAC7867 Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP

C0603S103J5RAC7867 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 0603
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.01 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
Guideline	AEC-Q200
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

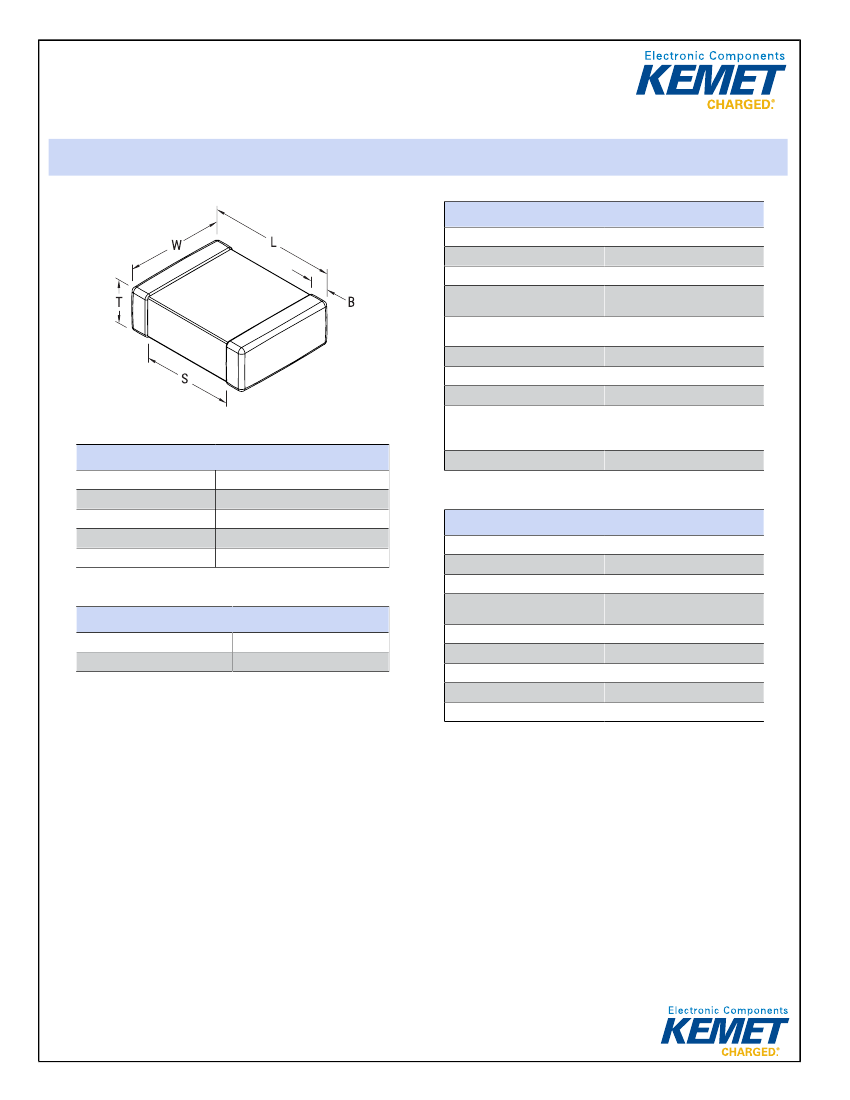

KEMET Part Number: C0603S103J5RACTU

(C0603S103J5RAC7867)

SMD Comm X7R FE, Ceramic, Floating Electrode, 0.01 uF, 5%, 50 VDC, X7R, SMD, MLCC, FE-CAP, Floating Electrode,

Temperature Stable, 0603

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Termination:

Marking:

Miscellaneous:

KEMET

SMD Comm X7R FE

SMD Chip

SMD, MLCC, FE-CAP, Floating

Electrode, Temperature Stable

FE-CAP, Floating Electrode,

Temperature Stable

Yes

Tin

No

Note: Referee time for X7R

dielectric for this part number is

1000 hours

0603

Dimensions

L

W

T

S

B

1.6mm +/-0.15mm

0.8mm +/-0.15mm

0.8mm +/-0.07mm

0.7mm MIN

0.35mm +/-0.15mm

Chip Size:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Aging Rate:

Insulation Resistance:

0.01 uF

5%

50 VDC

125 V

-55/+125C

X7R

2.50% 1kHz 25C

3% Loss/Decade Hour

100 GOhms

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Paper Tape

4000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/12/2019 - e1edf0a8-45c4-4e61-936c-41cd391583eb
