C0805Z182K5XAH7246: DescriptionCeramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.0018uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size56KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

C0805Z182K5XAH7246 Overview

Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.0018uF, Surface Mount, 0805, CHIP

C0805Z182K5XAH7246 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KEMET
package instruction	, 0805
Reach Compliance Code	_compli
ECCN code	EAR99
capacitance	0.0018 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.397 mm
JESD-609 code	e0
length	2.032 mm
Installation features	SURFACE MOUNT
multi-layer	N
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-123
size code	0805
surface mount	YES
Temperature characteristic code	BX
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	1.27 mm

Preview

Download Datasheet

View All

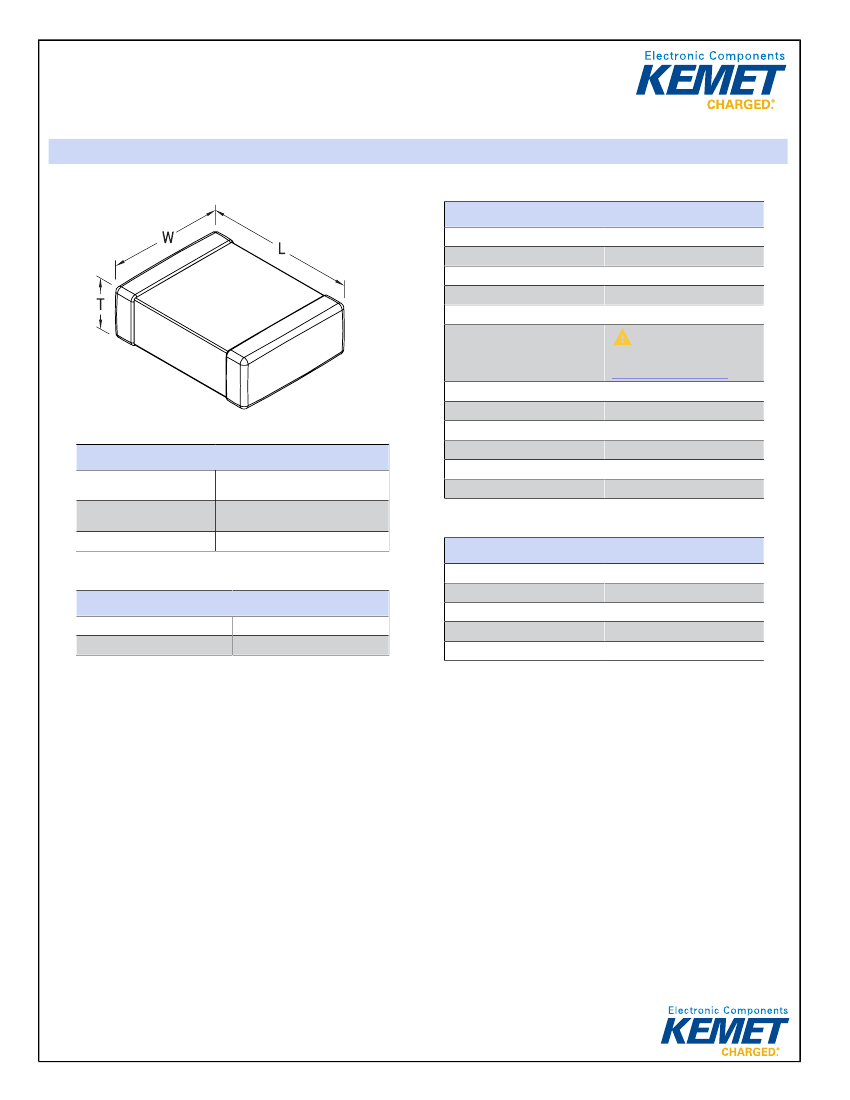

KEMET Part Number: M123A10BXB182KS-ANTI-STATIC BULK

(C0805Z182K5XAH7246)

SMD Mil PRF123, Ceramic, Military/High Reliability, 1800 pF, 10%, 50 VDC, BX, SMD Chip, Temperature Stable, N/A, 0805

General Information

Supplier:

Series:

Style:

Description:

RoHS:

Prop 65:

REACH:

Termination:

Failure Rate:

KEMET

SMD Mil PRF123

SMD Chip

SMD Chip, Temperature Stable

No

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

SVHC (Pb – CAS 7439-92-1)

Nickel

N/A

0805

78 Weeks

1

Dimensions

L

W

T

2.032mm +/-0.381mm

(0.08 in +/-0.015 in)

1.27mm +/-0.381mm

(0.05 in +/-0.015 in)

1.397mm MAX (0.055 in MAX)

Chip Size:

Shelf Life:

MSL:

Specifications

Capacitance:

1800 pF

10%

50 VDC

-55/+125C

BX

Capacitance Tolerance:

Voltage DC:

Temperature Range:

Temperature Coefficient:

Packaging Specifications

Packaging:

Packaging Quantity:

Bulk, Bag

10000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/07/2019 - 2032a1a1-61fc-4e9c-8cfa-d718b3a2a863
