Axial Lead & Cartridge Fuses
2AG > Special Fuse > 220 Series
220 Series, Lead-Free 2AG Special Fuse

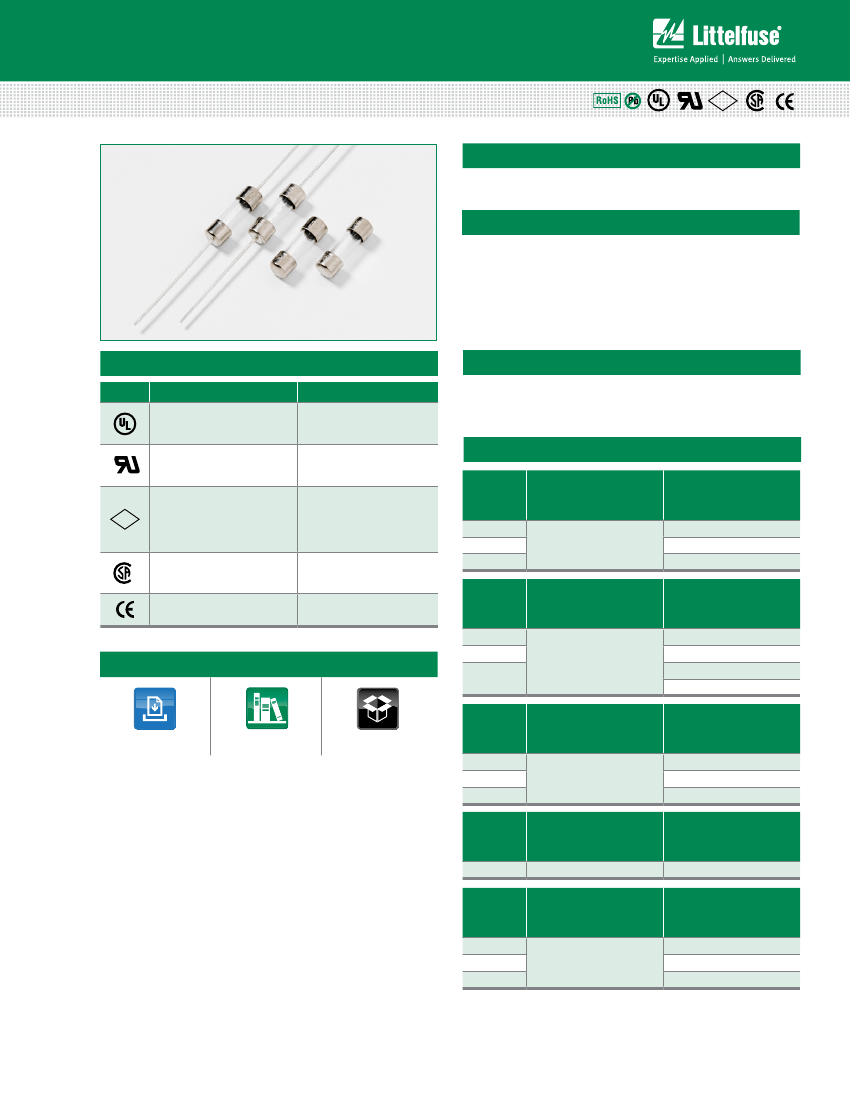

Description
®
PS
E
®
The 2AG Special Fuses with various voltage ratings,
provide special electric performance as required.
Features
• In accordance
with underwriter’s
Laboratories Standard
UL 248-14
• Available in cartridge
and axial lead format
with various forming
dimensions
• RoHS compliant and
Lead-free
Agency Approvals
Agency
Agency File Number
Ampere Range
Applications
Used as supplementary protection in appliance or
utilization equipment to provide individual protection for
components or internal circuits.
Electrical Characteristics for Series
% of
Ampere
Rating
100%
135%
200%
% of
Ampere
Rating
100%
135%
200%
% of
Ampere
Rating
100%
150%
0.9A
% of
Ampere
Rating
0.6A
% of
Ampere
Rating
0.6A
2A
6A
Amp code
0007
,0012,0013,0019,
0031,0036,0037
,0044,
0054,0060,0061
Opening Time
4 hours, Minimum
1 hour, Maximum
1 sec., Maximum
E10480
0003,0004,0010,0011,
0025,0029,0031,0036
0007
,0012,0013,0019,
0037
,0044,0045,
0059,0060,0061
1A - 3.5A
4A - 5A
6A - 7A
0003,0004,0007
,0010,0011,
0012,0013,0019,0025,0029,
0031,0044,0045,0059
0003-0061
®
E10480
NBK200405-E10480A/B/C/D
NBK110512-E10480A/B
NBK210405-E10480E/F
LR29862
PS
E
®
Amp code
Opening Time
4 hours, Minimum
1 hour, Maximum
3 secs., Minimum
20 secs., Maximum
Opening Time
4 hours, Minimum
15 mins, Maximum
90 secs., Maximum
Opening Time
90 secs., Maximum
Additional Information
0025,0038,0040,
0045,0059
Datasheet
Resources
Samples
Amp code
0010
Amp code
0003,0004,0011
Amp code
Opening Time
90 secs., Maximum
2 secs., Maximum
0.5 sec., Maximum
0029
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 06/18/14
Axial Lead & Cartridge Fuses
2AG > Special Fuse > 220 Series
Electrical Characteristics
Ampere
Rating
(A)
0.35
0.35
3
0.55
0.35
2
5
3
1.25
0.35
0.375
0.3
0.5
0.75
5
0.5
1
2
7
0.5
0.75
Max
Voltage
Rating
(V)
250
250
350
250
250
350
300
350
250
250
250
250
300
300
250
250
350
350
350
350
350
Interrupting
Rating
35A@250Vac, 10KA@125Vac
100A@350Vac, 60A@530Vac
35A@250Vac, 10KA@125Vac,
10KA@125Vdc
35A@250Vac, 10KA@125Vac
100A@350Vac
100A@350Vac, 100A@125Vdc
100A@250Vac, 10KA@125Vac,
10KA@125 Vdc
35A@250Vac, 10KA@125Vac
35A@250Vac, 10KA@125Vac,
10KA@125Vdc
35A@300Vac, 10KA@125Vac
50A@250Vac
35A@250Vac, 10KA@125Vac,
10KA@125Vdc
100A@350Vac
100A@250Vac, 100A@350Vac,
10KA@125Vac, 10KA@125Vdc
100A@350Vac / 160A@140Vdc
35A@350Vac
Nominal Cold
Resistance
(Ohms)
1.3100
1.3100
0.0317
0.4945
1.3100
0.0497
0.0186
0.0317
0.1460
1.3100
1.1685
0.5900
0.2650
0.1520
0.0186
0.6935
0.1027
0.0698
0.0116
0.2650
0.1520
Nominal
Melting
I
2
t (A
2
sec)
0.490
0.490
4.62
1.16
0.49
1.50
17
.0
4.62
9.80
0.490
0.580
0.0300
0.365
1.05
267
1.16
2.22
30.0
464
0.365
1.05
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Agency Approvals
®
PS
E
Amp Code
0003
0004
0007
0010
0011
0012
0013
0019
0025
0029
0030
0031
0036
0037
0038
0040
0044
0045
0059
0060
0061
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X

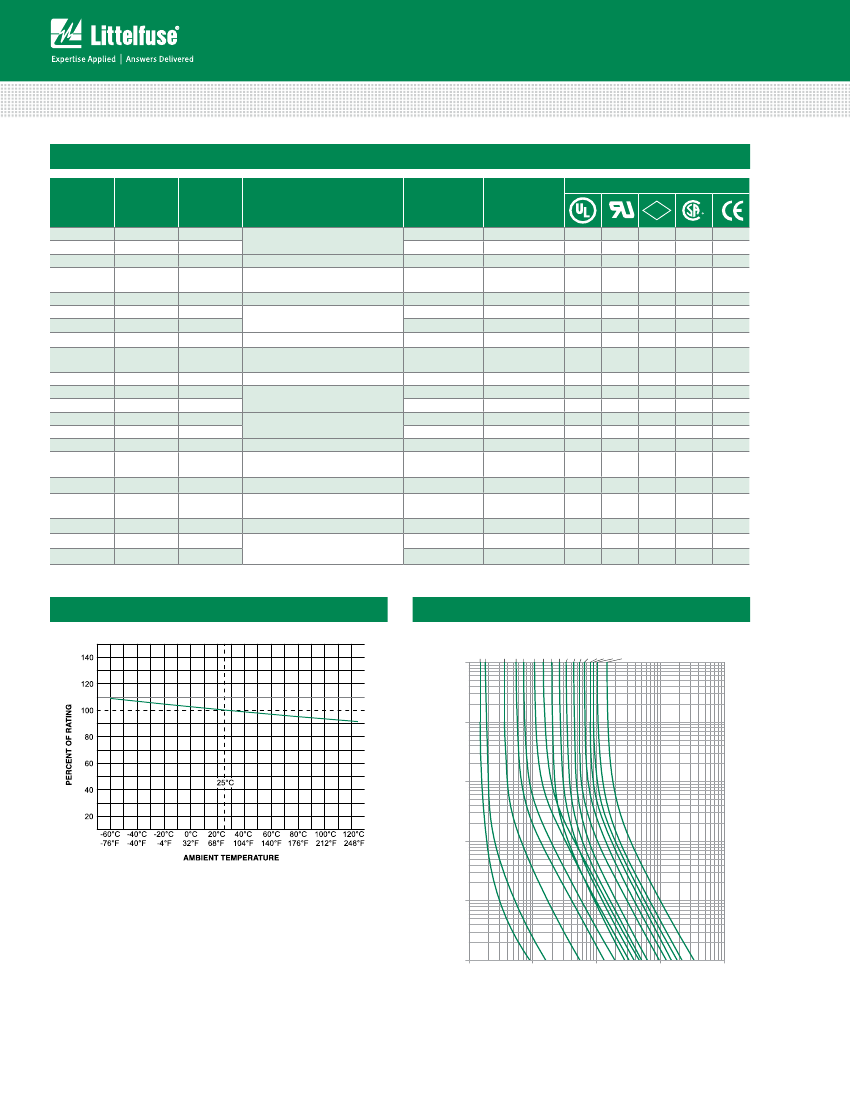

Temperature Rerating Curve
Average Time Current Curves
.100A
.200A
.250A
.375A
.500A
.750A
1.0A
1.5A
2.0A
2.5A
3A
4A
5A
6A
7A
8A
10A
1
10
100
CURRENT IN AMPERES
100
10
TIME IN SECONDS
1
0.1
0.01
0.001
0.1
1000
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised 06/18/14
Axial Lead & Cartridge Fuses
2AG > Special Fuse > 220 Series

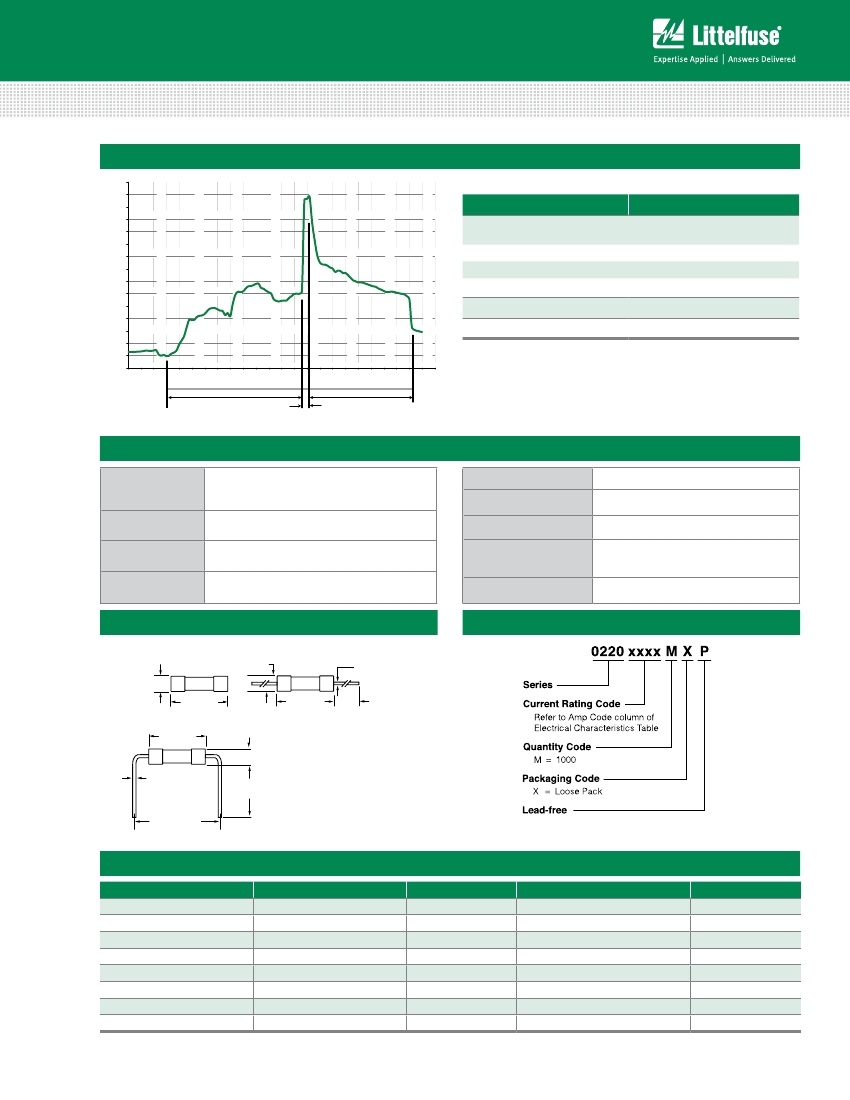

Soldering Parameters - Wave Soldering
300
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Max.
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
Product Characteristics
Material
Terminal Strength
Solderability
Product Marking
Body: Glass
Cap: Nickel–plated brass
Leads: Tin–plated Copper
MIL-STD-202G, Method 211A,
Test Condition A
Reference IEC 60127 Second Edition
2003-01 Annex A
Cap1: Brand logo, current and voltage ratings
Cap2: Series and agency approval marks
Operating Temperature
-55 ºC to +125 ºC
Thermal Shock
Vibration
Humidity
Salt Spray
MIL
-STD-202G, Method 107G, Test
Condition B: (5 cycles - 65ºC to 125ºC)
MIL
-STD-202G, Method 201A
MIL
-STD-202G, Method 103B, Test
Condition A: High RH (95%) and
Elevated Temp (40 ºC) for 240 hours
MIL
-STD-202G, Method 101D, Test
Condition B
Dimensions
Part Numbering System
220 000P Series
4.2 - 4.8
(.16" - .19”)
4.2 - 4.8
(.16" - .19”)
14.1 - 14.9
(.56" - .59”)
14.1 - 14.9
(.56" - .59”)
.635 ± .06
(.025" ± .002”)
Length L
For MXP
For T1
For T2
For T3
For 02200029MXP
14.1 - 14.9
(.56" - .59”)
Length L:
1. TYP.38.1±1(1.50”±.04”)
2. 24.8±1(.98”±.04”)
3. 27.8±3(1.09”±.12”)
4. 34.9±1(1.37”±.04”)
4.2 - 4.8
(.16" - .19”)
.635 ± .06
(.025" ± .002”)
15 ± 1.2
(.591" ± .047”)
20 ± 1.5
(.79" ± .059”)
For 02200019MXP
Note: Please contact Littelfuse for
other lead length or forming type.
Packaging
Packaging Option
Bulk
Bulk
Reel and Tape
Reel and Tape
Reel and Tape
Reel and Tape
Reel and Tape
Reel and Tape
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 06/18/14
Packaging Specification
N/A
N/A
EIA 296-E
EIA 296-E
EIA 296-E
EIA 296-E
EIA 296-E
EIA 296-E
Quantity
1000
1000
1000
1500
1500
1500
1500
2500
Quantity & Packaging Code
MX
MXSL
MRT1
DAT1
DRT1
DRT2
DRT3
ERT1
Reel Size
N/A
N/A
53mm (2.087”)
53mm (2.087”)
53mm (2.087”)
63mm (2.500”)
73mm (2.874”)
53mm (2.087”)
Embedded System
