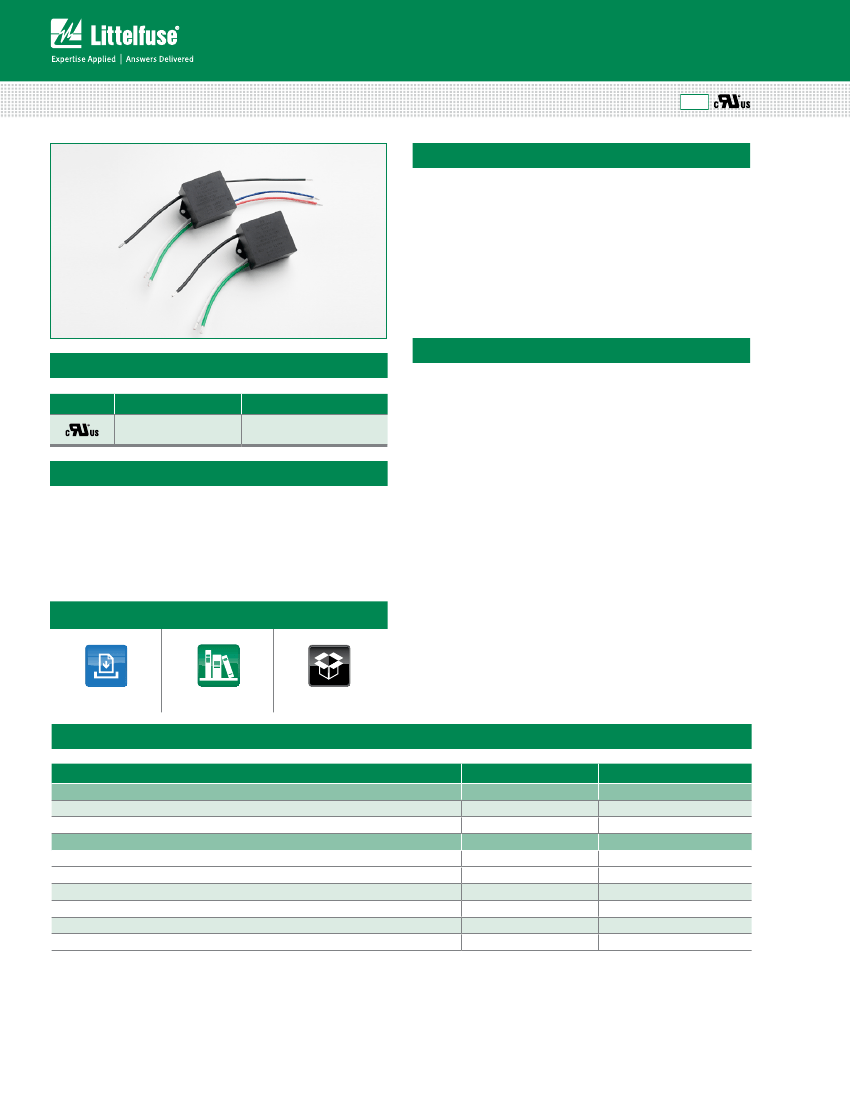

The Littelfuse LSP05 thermally protected Surge Protective
Device is a self-protected device which is specially designed
to be used in outdoor and commercial LED lighting fixtures
for transient overvoltage protection. It is constructed with
Littelfuse thermally protected varistor technology. Its built-in
thermal disconnect function provides additional protection
to prevent catastrophic failure and fire hazard even under the
extreme circumstances of varistor end-of-life or sustaining
over voltage conditions. The LSP05 SPD facilitates custom-
er’s product compliance to IEEE C62.41.2 Location Category
C Low and US Dept of Energy MSSLC Model Spec.
Agency Approvals
Agency
Standard
Agency File Number
Features
• Maximum Discharge
• CE Compliance
Current, 10kA, 8/20us
IEC61643-11 Class II/
EN61643-11 Type 2
• Meets ANSI C136.2/
IEEE C62.41.2 Location
• Compact form factor
Category C Low Exposure
(48x48x30mm) with
mounting tabs
• Parallel connected
SPD device
• 240Vac and 277Vac
voltage ratings are CE
• Thermally protected
compliant and available
Varistor technology
for Class I and Class II
• IP66 Water-proof
installation based on
and Dust-proof
IEC protection classes
• Indication wire lead
options for Parallel
connected modules
Notes:
1. These parts are in compliance with IEC61643-11 Class II (Low Voltage System) and
EN61643-11 Type 2 (Low Voltage System).
2. Tested for temporary overvoltage from low-voltage system faults per IEC 61643-11
UL1449 3rd Edition
E320116
Applications
• Outdoor and Commercial
LED Lighting
• Roadway lighting
• Traffic lighting
• Digital signage
•
•
•
•
•
Wash wall lighting
Parking garage/lot lighting
Flood lighting
Tunnel lighting
Street lighting
Additional Information
Datasheet
Resources
Samples
Absolute Maximum Ratings
• For ratings of individual members of a series, see Device Ratings and Specifications chart
LSP05 Series
Continous:
Steady State Applied Voltage:
Max AC Voltage Range (V
M(AC)RMS
)
Transient:
Maximum Discharge Current 8/20μs Waveform (Imax)
Nominal Discharge Current 8/20µs Waveform (I
n
)
Operating Ambient Temperature Range (T
A
)
Storage Temperature Range (T
STG
)
Isolation Voltage Capability (When the thermal disconnect opens)
Insulation Resistance
10,000
5,000
-45 to +85
-45 to +125
600
>1,000
150 to 510
Units
V
A
A
°C
°C
V
MΩ
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of
the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Specifications are subject to change without notice.
Revised: 07/24/14
Varistor Products
Thermally Protected Varistor Module > LSP05
LSP05 Series Device Ratings & Specifications
Nominal
Maximum
Discharge Current Discharge Current
(In)(A)
1
(Imax)(A)
2
10,000
10,000
10,000
5,000
5,000
5,000
Part Number
Operating Voltage
(VAC)
MCOV/Uc
(VAC)
MLV
(V)
3
L
-N:680
L
-G:680
N-G:630
L
-N:1100
L
-G:1100
N-G:1100
L
-N:1270
L
-G:1270
N-G:1220
L
-N:1600
L
-G:1600
N-G:1580
L
-N:1780
L
-G:1780
N-G:1730
L
-L:1100
L
-L:1780
L
-N/G:1270
2x ø4.8±0.2
L
-N/G:680
Up
(V)
4
LSP05120P
LSP05240P
LSP05277P
LSP05347P
LSP05480P
LSP05240LLP
LSP05480LLP
120
240
277
347
480
L-L:240
L-N/G:120
L-L:480
L-N/G:277
150
275
320
420
510
L
-L:275
L
-N/G:150
L
-L:510
L
-N/G:320
800
1200
1400
1700
1900
48.0±1.5
-L:1200
L
Typical Dimensions (mm)
10,000
10,000
10,000
10,000
56.0 ±0.5
5,000
5,000
5,000
5,000
L
-N/G:800
L
-L:1900
Notes:
3 indication wires
100 ±20
100 ±20
1. Nominal Discharge Current (In)(A): The nominal discharge current is a measure of the SPDs endurance capability; 15
48.0 ±1.5
of discharge current uses the 8/20us current waveform.
impulses
all use the AWG22.
2. Maximum Discharge Current (Imax)(A): The maximum discharge current is a measure of the SPDs maximum capability; single impulse of discharge current uses the 8/20us current
waveform.
3. MLV – UL1449 Measured limiting voltage; the highest value of residual voltage measurements during the application of impulses of 8/20us nominal discharge current (In); an average
voltage value of 15 impulses
4. Up – IEC 61643-11 Voltage protection level; the highest value of residual voltage measurements during the application of impulses of 8/20us nominal discharge
