BTSW-203-01-F-S datasheet, PDF

Datasheet> All Categories > The connector> The connector> BTSW-203-01-F-S

BTSW-203-01-F-S: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size145KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTSW-203-01-F-S Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

BTSW-203-01-F-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (3) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BTSW
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

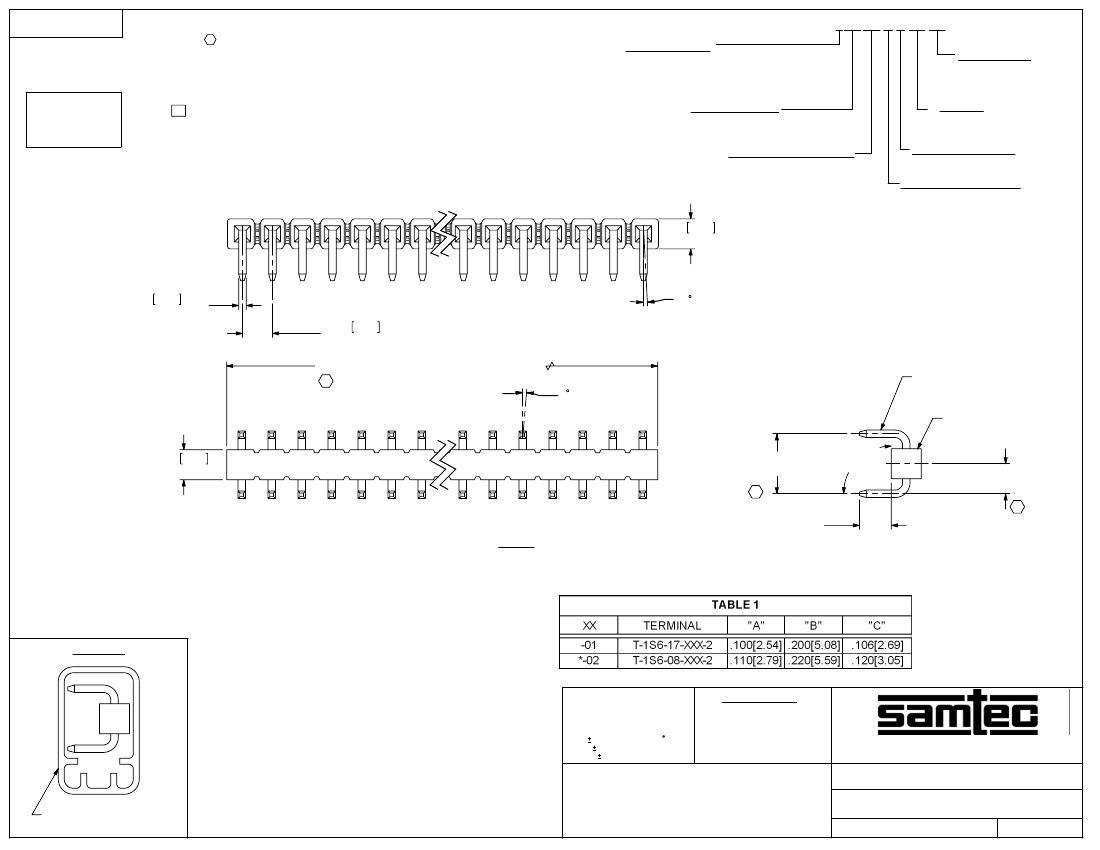

REVISION A

DO NOT

SCALE FROM

THIS PRINT

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. ALL DIMENSIONS TO BE ABOUT CL WITHIN ±.005[0.13].

3. MINIMUM PUSHOUT FORCE: 3 lbs.

4. MAXIMUM CUT FLASH: .020[0.50].

5. MEASURE FROM THE TIPS OF THE TERMINALS.

6. MEASURE AT BOTH ENDS OF PART.

A 7. PARTS TO BE PACKAGED IN TUBES FOR 4-50 POSITIONS (.100 [2.54]

PITCH) OR 2-25 POSITIONS (.200 [5.08] PITCH), OTHERWISE BULK PACKAGED.

BTSW-XXX-XX-X-S-XX-XX

TERMINAL SPACE

-1: .100[2.54 (FILL EVERY POSITION)

-2: .200[5.08] (FILL EVERY OTHER POS

STARTING AT -01 AND ENDING

IN LAST POS)

NO OF POSITIONS

-1: -01 THRU -50

-2: -02 THRU -25 (SEE FIG. 3, SHEET 2)

TERMINAL SPECIFICATION

-01: .050[1.27] PROFILE

*-02: .060[1.52] PROFILE

(SEE TABLE 1)

.100 2.54

REF

POLARIZATION

XX INDICATES POSITION

TO BE OMITTED; LEAVE

BLANK FOR NO OPTION

OPTIONS

-LL: LOCKING LEAD

(SEE FIG. 2, SHEET 2)

ROW SPECIFICATION

-S: SINGLE

PLATING SPECIFICATION

-T: MATTE TIN CONTACT AND TAIL

-F: FLASH GOLD, 3 Au / 50 Ni MIN

ON CONTACT,MATTE TIN ON TAIL

(USE T-1S6-XX-GF-2)

* = NOT RELEASED

.025 0.64 SQ

REF (TYP)

.100 2.54

REF (TYP)

+.015

+0.38

(No. OF POSITIONS x .100[2.54])

- .010

[

- 0.25

]

2 MAX SWAY

(TYP)

T-1S6-XX-XXX-2

2 MAX SWAY

(TYP)

TSM-50-SV

"B"±.005

(SEE NOTE 5 & 6)

"C"

90° (TYP)

REF

.100 2.54

REF

"A"±.005

(SEE NOTE 5 & 6)

BTSW-1XX-XX-X-S SHOWN

FIG. 1

TUBE VIEW

* = NOT RELEASED

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

PT-1-24-01-60 (USE TP-03)

(SEE NOTE 7)

MATERIAL:

BODIES:

DUPONT CRASTIN SK652 FR, COLOR: BLACK

TERMINALS:

PHOSPHOR BRONZE

F:\DWG\MISC\MKTG\BTSW-XXX-XX-X-S-XX-XX-MKT.SLDDRW

.025 [.64] SQ. SINGLE ROW, DOUBLE -RA POST ASM

BTSW-XXX-XX-X-S-XX-XX

BY:

J. BROWNING 04/27/2010

SHEET

BTSW-203-01-F-S Related Products

	BTSW-203-01-F-S	BTSW-206-02-F-S	BTSW-206-01-F-S	BTSW-211-02-F-S	BTSW-211-02-T-S	BTSW-212-01-F-S	BTSW-216-01-F-S	BTSW-218-01-F-S	BTSW-224-01-F-S	BTSW-225-01-F-S
Description	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 18 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 24 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 25 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (3) OVER NICKEL (50)	GOLD FLASH (3) OVER NICKEL (50)	GOLD FLASH (3) OVER NICKEL (50)	GOLD FLASH (3) OVER NICKEL (50)	MATTE TIN	GOLD FLASH (3) OVER NICKEL (50)	GOLD FLASH (3) OVER NICKEL (50)	GOLD FLASH (3) OVER NICKEL (50)	GOLD FLASH (3) OVER NICKEL (50)	GOLD FLASH (3) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BTSW	BTSW	BTSW	BTSW	BTSW	BTSW	BTSW	BTSW	BTSW	BTSW
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	6	6	11	11	12	16	18	24	25
Maker	SAMTEC	-	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
