5962-1220301KXC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-1220301KXC

5962-1220301KXC: DescriptionADC, Successive Approximation; CategoryAnalog mixed-signal IC converter; File Size397KB，8 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

5962-1220301KXC Overview

ADC, Successive Approximation

5962-1220301KXC Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
package instruction	QFF,
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Maximum analog input voltage	5 V
Minimum analog input voltage
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	S-CQFP-F48
length	17.78 mm
Maximum linear error (EL)	0.25%
Number of analog input channels	16
Number of digits	14
Number of functions	1
Number of terminals	48
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Sampling rate	0.05 MHz
Sample and hold/Track and hold	SAMPLE
Filter level	MIL-STD-883
Maximum seat height	3.175 mm
Nominal supply voltage	5 V
surface mount	YES
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
total dose	300k Rad(Si) V
width	17.78 mm

Preview

Download Datasheet

View All

Standard Products

Datasheet

RadHard-by-Design

RHD5950 16-Channel Multiplexed

14-Bit Analog-to-Digital Converter

www.aeroflex.com/RHDseries

March 6, 2014

FEATURES



Single power supply operation 5.0V or Dual power supply for 3.3V I/O

Radiation performance

- Total dose:

> 1 Mrad(Si); Dose rate = 50 - 300 rads(Si)/s

- ELDRS Immune

- SEL Immune

> 100 MeV-cm

/mg

- Neutron Displacement Damage > 10

neutrons/cm

16-Channel Input Multiplexer

Successive Approximation A-to-D

Level Shifting Digital Output Drivers allow interfaces to 5.0 or 3.3 volt logic

Tri-State digital outputs

Power Down (Sleep) mode

Single or continuous conversion

20us conversion period (20 clocks @ 1MHz Clock rate)

Multiplexer address is latched on first clock rising edge of a cycle

Busy and End-of-Conversion status outputs

2000V Input/Output ESD protection

Full military temperature range

Designed for aerospace and high reliability space applications

Packaging – Hermetic Ceramic

- 48 leads, 0.700"Sq x 0.125"Ht quad flat pack

- Weight - 6 grams max

Aeroflex Plainview’s Radiation Hardness Assurance Plan is DLA Certified to MIL-PRF-38534, Appendix G.



GENERAL DESCRIPTION

Aeroflex’s RHD5950 is a radiation hardened, single supply, 16-Channel Multiplexed Analog-to-Digital

converter in a 48-pin Ceramic Quad Flat Package. The RHD5950 design uses specific circuit topology and

layout methods to mitigate total ionizing dose effects and single event latchup. These characteristics make

the RHD5950 especially suited for the harsh environment encountered in Deep Space missions. It is

guaranteed operational from -55°C to +125°C. Available screened in accordance with MIL-PRF-38534

Class K, the RHD5950 is ideal for demanding military and space applications.

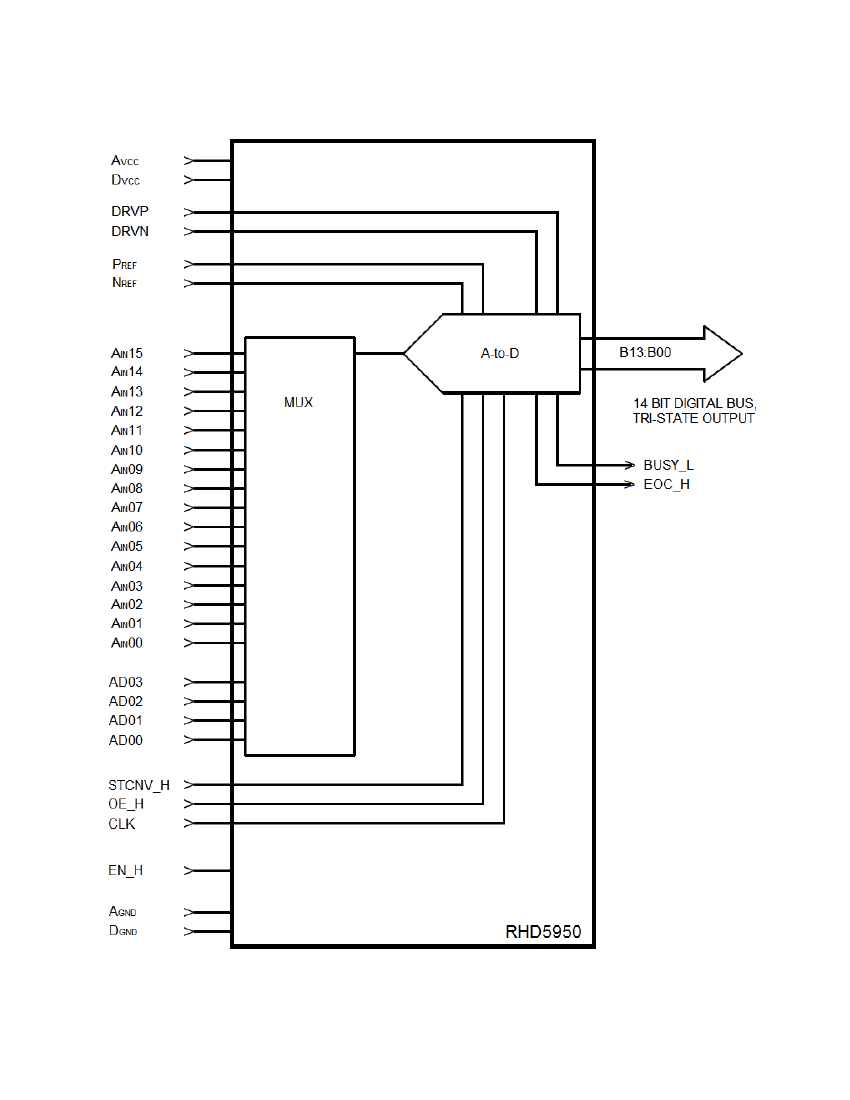

ORGANIZATION AND APPLICATION

The RHD5950 takes 16 analog sensor signals and using 4 address inputs and an enable input, selects one of

the 16 analog inputs and performs a 14-bit successive approximation analog-to-digital conversion in a

nominal period of 20uS. The 14-bit digital output has a tri-state control allowing the connection of multiple

RHD5950s. This provides the ability to interface many sensor voltage readings to the digital processor data

bus. The full-scale range is determined by reference input voltages. The input impedance of the

reference/span terminals is typically a constant 4K ohms.

SCD5950 Rev E

Gain compression will occur near either power supply extremes but can be avoided if the references are more

than 200mV away from the respective supply terminals. The input span can be less than 4 volts at the expense of

ultimate resolution

The analog channels input impedance is primary capacitance (20pF typical). The input voltage charges a

track-and-hold hold capacitor through transmission gates. The input bandwidth is determined by the slew rate of

the hold amplifier and is adequate to allow input sampling in three clock periods (3uS nominal). The ultimate

bandwidth is determined by the aperture uncertainty associated with the closing of the sample gate

(approximately 5nS). The converter bandwidth is then determined by the sampling Nyquist frequency rather than

the input signal; change rate (dv/dt) and the LSB weight in volts as would be the case if there were no sample and

hold.

Start-Convert (STCNV_H), Busy (BUSY_L) and End-Of-Convert (EOC_H) status and control line are provided.

The converter will operate in either continuous or single conversion modes. To operate in continuous mode,

STCNV_H should be tied to BUSY_L. The digital output register changes at the end of a conversion and is

available when EOC_H is asserted High. The output circuitry operates from a voltage independent of the

remainder of the chip such that I/O is compatible with digital systems from, less than 3.3 volts, to 5 volts.

The converter divides the reference voltage into 16 segments with a linear weighted resistor network. The voltage

on any segment is passed to a linear 10-bit DAC for interpolation. The architecture is inherently capable of

monotonic operation. Typically INL is 0.12% FSR and DNL is < 0.03% FSR. The sampled input voltage is

compared to the output of the two stage DAC for a 14-bit successive approximation conversion.

All inputs are protected to both power supply rails by semiconductor diodes. Inputs should be constrained to V

+0.4 and GND-0.4 to avoid forward biasing protection paths.

The devices will not latch with SEU events to above 100 MeV-cm

/mg. Total dose degradation is minimal to

above 1 Mrad(Si). Displacement damage environments to neutron fluence equivalents in the mid 10

neutrons

per cm

range are readily tolerated. There is no sensitivity to low-dose rate (ELDRS) effects. SEU effects are

application dependent.

Notes:

- The STCNV_H is a dynamic input (positive edge triggered) and should not be tied to a static voltage.

- The input signals should be low pass filtered to reduce high frequency noise

- If Sleep mode is enabled (EN_H=0), when waking up (EN_H=1), the unit has to complete an entire

conversion cycle so the digital logic is in the proper state.

Ex. If using a 1MHz clock; after EN_H=1 and 20us after STCNV_H is applied.

SCD5950 Rev E 3/6/14

Aeroflex Plainview
