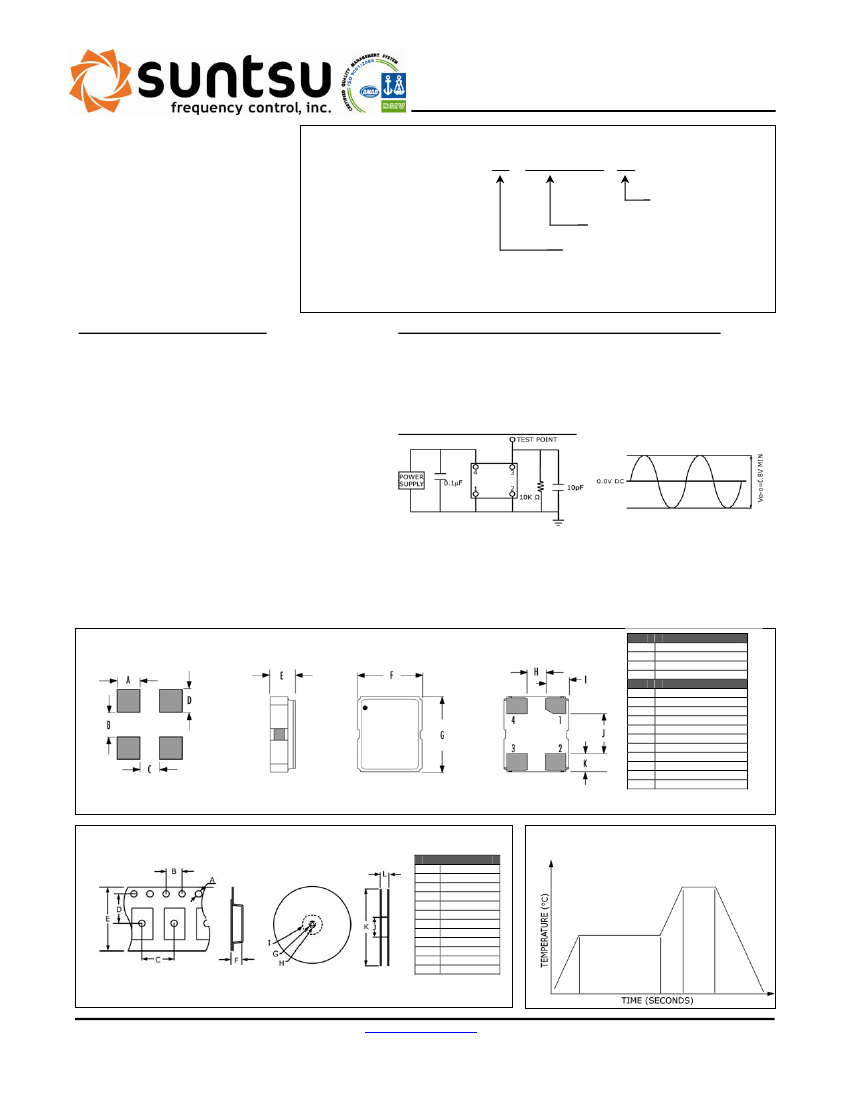

SWO SERIES
2.5X2.0 CERAMIC SMT 4 PAD ANALOG TCXO
SWO SERIES FEATURES
±0.5ppm STABILITY
ULTRA-MINIATURE PACKAGE
CLIPPED SINE WAVE
ANALOG COMPENSATION
TAPE AND REEL
RoHS COMPLIANT
3.0±0.1V
PART NUMBERING GUIDE
SWO 27 - 13.000MHz TR
TAPE AND REEL
FREQUENCY
OPERATING TEMPERATURE RANGE
27: -20°C to + 70°C
38: -30°C to + 85°C
*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.
CAGE CODE: 4GUT4
ELECTRICAL SPECIFICATIONS
13.000MHz, 19.200MHz,
26.000MHz
STABILITY (VS. TEMP):
±0.5ppm MAX
STABILITY (VS. AGING):
±1.0ppm/FIRST YEAR MAX
STABILITY (VS. VOLTAGE):
±0.2ppm MAX
STABILITY (VS. LOAD):
±0.2ppm MAX
OPERATING VOLTAGE:
3.0±0.1V
STORAGE TEMPERATURE:
-40°C TO 120°C
CURRENT CONSUMPTION:
1.5mA MAX
10kΩ/10pF
LOAD:
PHASE NOISE:
1Hz OFFSET:
(TYPICAL)
10Hz OFFSET:
-89dBc/Hz
100Hz OFFSET:
-120dBc/Hz
1kHz OFFSET:
-135dBc/Hz
10kHz OFFSET:
-145dBc/Hz
100kHz OFFSET:
-150dBc/Hz
DEVELOPED FREQUENCIES:
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
DROP TEST:
MECHANICAL SHOCK:
VIBRATION:
SOLDERABILITY:
RESISTANCE TO
SOLERING HEAT:
75cm ONTO HARD WOODEN SURFACE (3 TIMES)
MIL-STD-883, METHOD 2002, CONDITION B
MIL-STD-883, METHOD 2007, CONDITION A
230°C, 3S (±1.5ppm)
260°C, 10S (±1.5ppm)
TEST CIRCUIT & WAVEFORM
PRODUCT SCHEMATIC
PIN
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
FUNCTION
GROUND
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
DIMENSIONS
0.9
1.35
0.55
0.75
1.1 MAX
2.0±0.2
2.5±0.2
0.65±0.2
0.6±0.1
1.45±0.2
0.45±0.1
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
TAPE AND REEL DIMENSIONS
A
B
C
D
E
F
G
H
I
J
K
L
DIMENSIONS
Φ1.50
4.0
4.0
3.5
8.0
0.95 MAX
2.5
Φ13.5
21.6
Φ60.0
Φ180
9.0
REFLOW PROFILE
260°C
150°C
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
120 S
10 S
MAX
9 orchard rd., suite 111
lake forest, ca 92630
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
REV. 02/19/10
www.suntsuinc.com
telephone • 949.305.0220
facsimile • 949.305.0221
