12102FL111037 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 12102FL111037

12102FL111037: DescriptionBoard Connector, 37 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size81KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

12102FL111037 Overview

Board Connector, 37 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator

12102FL111037 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.098 inch
subject depth	0.181 inch
body length	1.87 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	121
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	37

12102FL111037 Preview

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

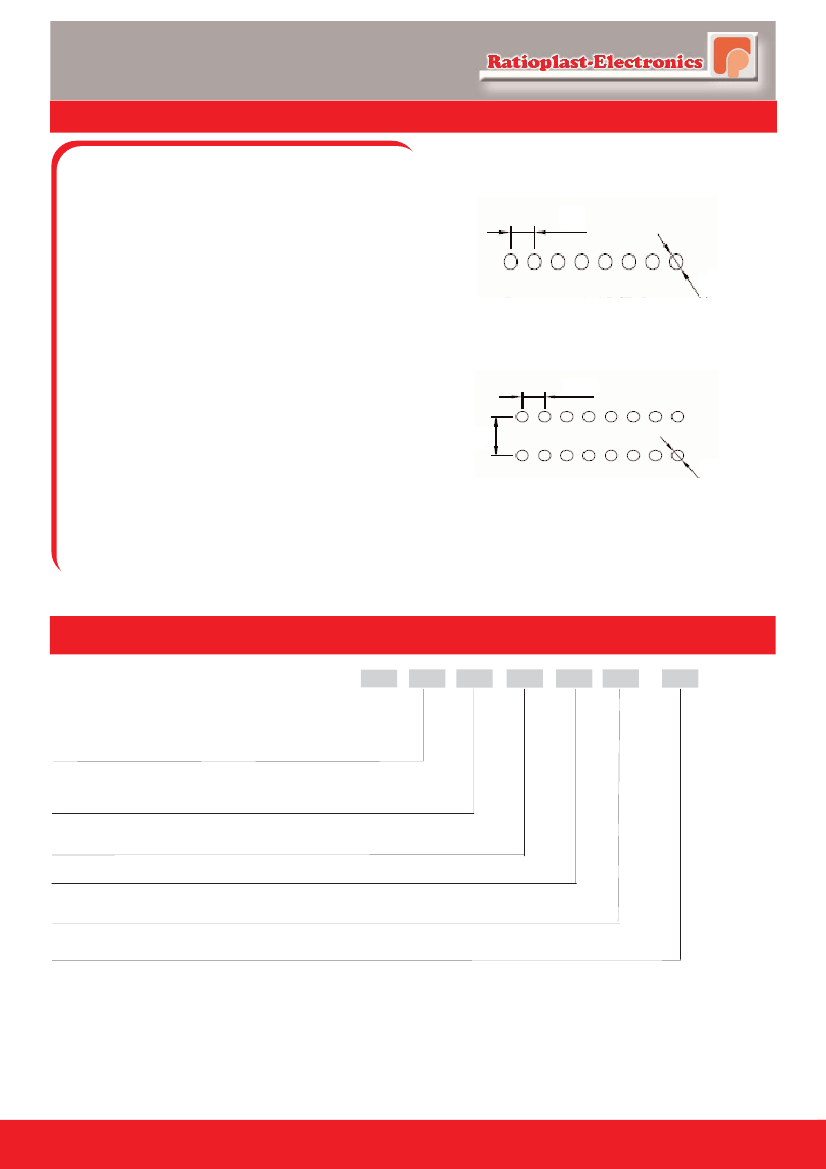

Serie 121

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

BUCHSENLEISTE

FEMALE HEADER

RASTER 1,27mm für Vierkantstift 0,46mm

PITCH 1,27mm for square contact 0,46mm

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Kupfer

250 V AC

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

1,27

0,7

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

Nylon 6T

High temperature, UL94-V0

Black

Copper alloy

250 V AC

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

1,27

2,54

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

121

00 = 2,40mm Lötpin-Länge - Solder pin lenght (Standard)

01 = 1,50mm Lötpin-Länge - Solder pin lenght

02 = 3,00mm Lötpin-Länge - Solder pin lenght

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

1 = 1- reihig - 1- row

2 = 2- reihig - 2- row

1 =Stehend - Standing

1 = 1,27 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (003... 050) ( 1- reihig - 1- row))

(006... 100) ( 2- reihig - 2- row))

XXX

Seite: 62

Version 1 / 2011

www.ratioplast.com

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

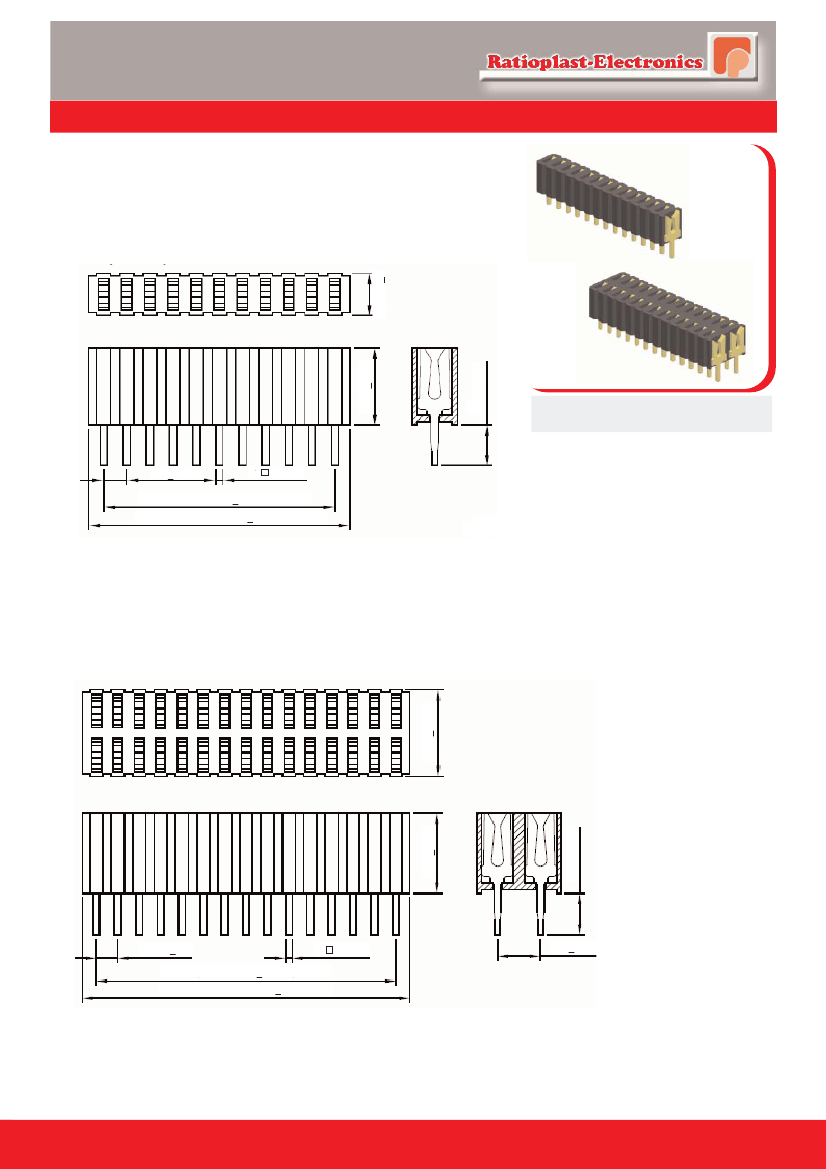

Serie 121

BUCHSENLEISTE

FEMALE HEADER

RASTER 1,27mm für Vierkantstift 0,46mm

PITCH 1,27mm for square contact 0,46mm

2,50 +0,15

(2,40 / 1,50 / 3,0mm)

4,60 +0,15

Passende Stiftleisten Serie 041, 046

Mating with pinheader serie 0,41, 046

1,27+0,10

(N-1)x1,27 +0,20

Nx1,27 +0,50 +0,30

0,4x0,4

5,00+0,15

1,27+0,10

(N/2-1)x1,27 +0,20

(N/2)x1,27 +0,50 +0,30

0,4x0,4

2,54+0,10

(2,40 / 1,50 / 3,0mm)

4,60 +0,15

www.ratioplast.com

Seite: 63
